Specification	ATV04-38PC-S2

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	IP67, Mounting Flange, Sealed
Insulation Material	Thermoplastic
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	38
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C

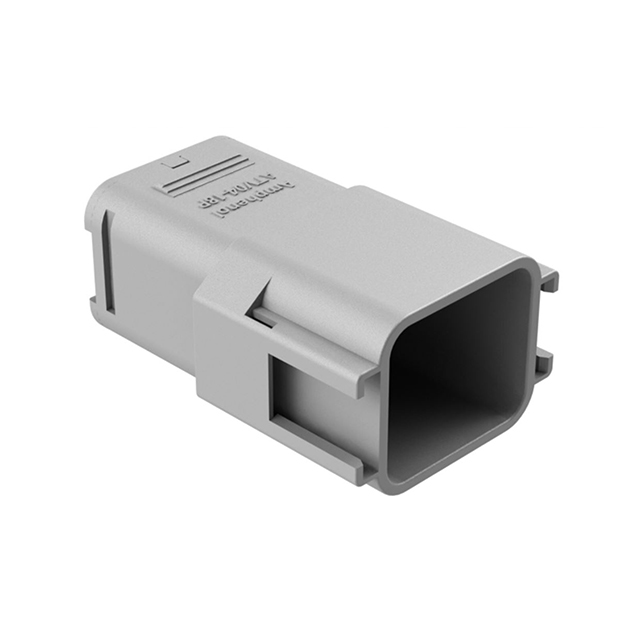

ATV04 Series

Part	Note	Insulation Material	Contact Termination	Contact Type	Features	Color	Operating Temperature (Max)	Operating Temperature (Min)	Number of Rows	Fastening Type	Mounting Type	Connector Type	Number of Positions	Cable Termination

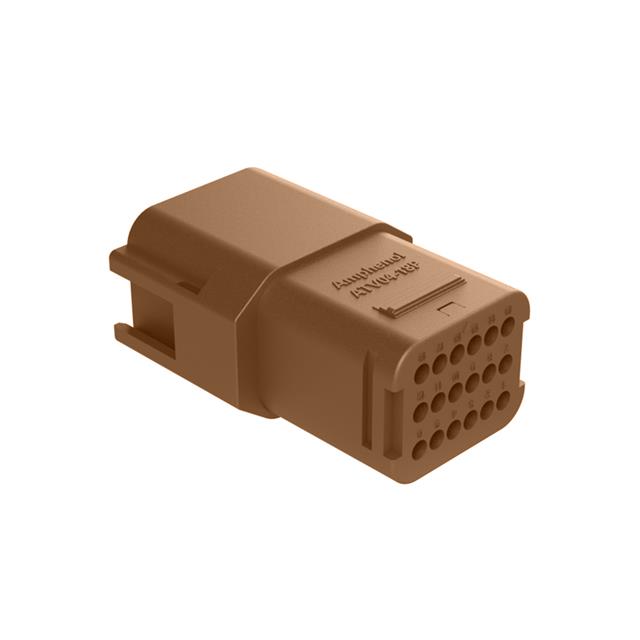

McGill Microwave Systems ATV04-18PD-RR01	Contacts Not Included	Thermoplastic	Crimp	Male Pin	IP67 Sealed	Brown	125 °C	-55 °C	3	Latch Holder	Free Hanging (In-Line)	Receptacle	18

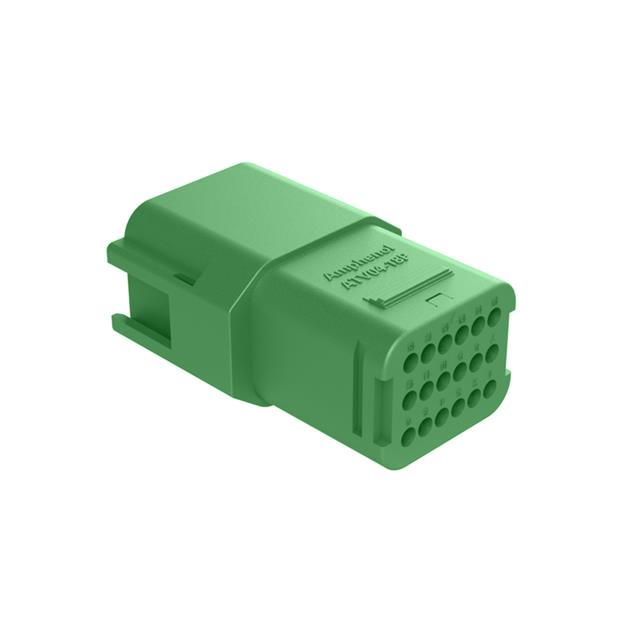

McGill Microwave Systems ATV04-18PC	Contacts Not Included	Thermoplastic	Crimp	Male Pin	IP67 Sealed	Green	125 °C	-55 °C	3	Latch Holder	Free Hanging (In-Line)	Receptacle	18

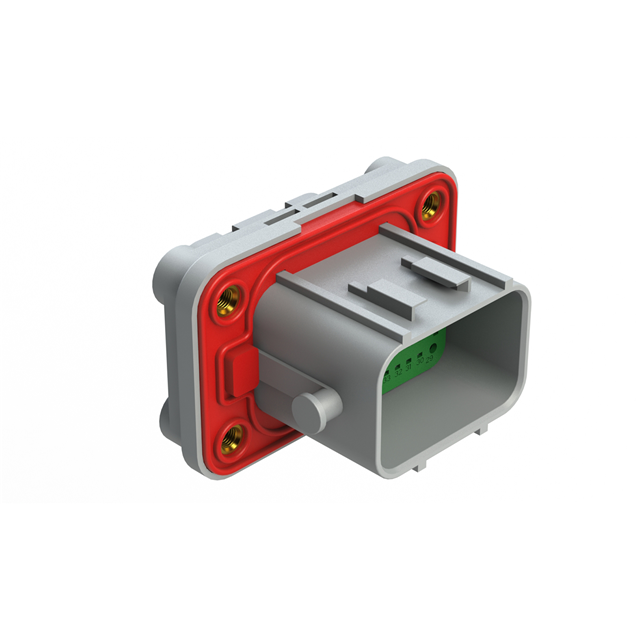

McGill Microwave Systems ATV04-38PB-S2	Contacts Not Included	Thermoplastic	Crimp	Male Pin	IP67 Mounting Flange Sealed	Gray	125 °C	-40 °C		Latch Holder	Panel Mount	Receptacle	38

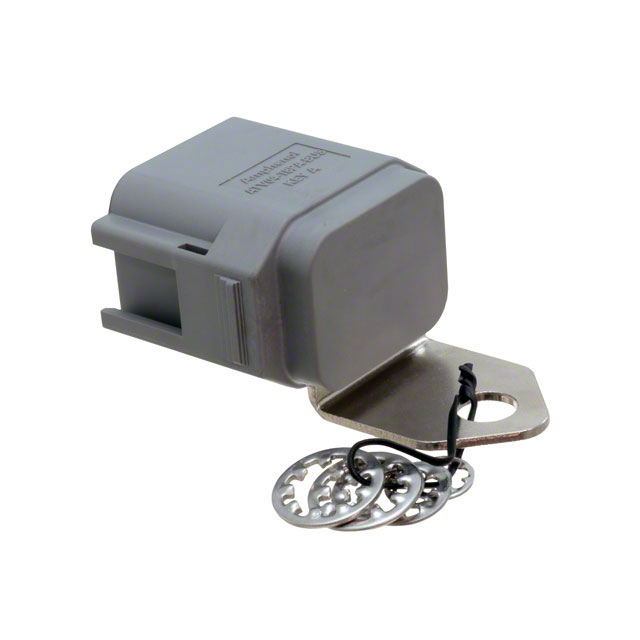

McGill Microwave Systems ATV04-18PA-BUS				Female Socket		Gray			3	Push-Pull	Free Hanging (In-Line)	Receptacle	18	Crimp

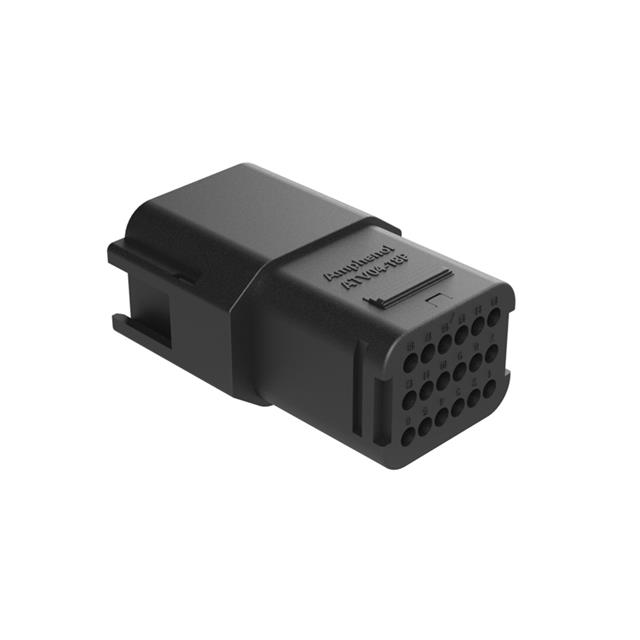

McGill Microwave Systems ATV04-18PB-RR01	Contacts Not Included	Thermoplastic	Crimp	Male Pin	IP67 Sealed	Black	125 °C	-55 °C	3	Latch Holder	Free Hanging (In-Line)	Receptacle	18
McGill Microwave Systems ATV04-38PC-S2	Contacts Not Included	Thermoplastic	Crimp	Male Pin	IP67 Mounting Flange Sealed	Gray	125 °C	-40 °C		Latch Holder	Panel Mount	Receptacle	38
McGill Microwave Systems ATV04-38PA-S2	Contacts Not Included	Thermoplastic	Crimp	Male Pin	IP67 Mounting Flange Sealed	Gray	125 °C	-40 °C		Latch Holder	Panel Mount	Receptacle	38
McGill Microwave Systems ATV04-18PA	Contacts Not Included	Thermoplastic	Crimp	Male Pin	IP67 Sealed	Gray	125 °C	-55 °C	3	Latch Holder	Free Hanging (In-Line)	Receptacle	18
McGill Microwave Systems ATV04-18PA-RR01	Contacts Not Included	Thermoplastic	Crimp	Male Pin	IP67 Sealed	Gray	125 °C	-55 °C	3	Latch Holder	Free Hanging (In-Line)	Receptacle	18

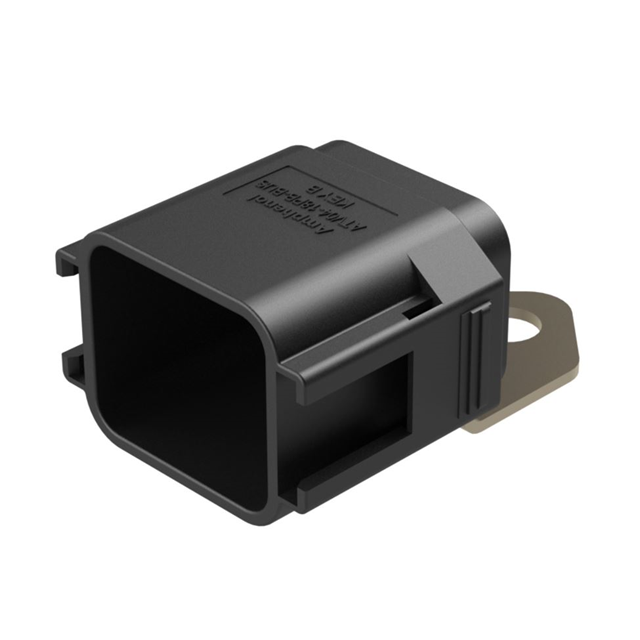

McGill Microwave Systems ATV04-18PB-BUS				Female Socket		Black			3	Push-Pull	Free Hanging (In-Line)	Receptacle	18	Crimp
