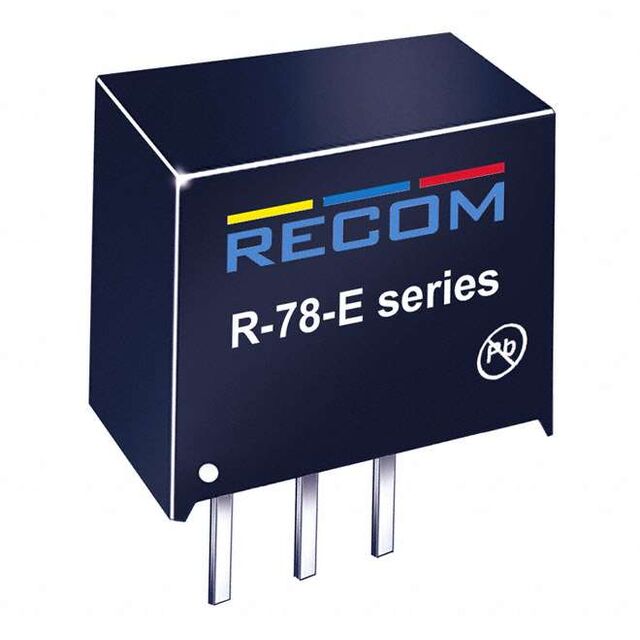

R-78E3.3-1.0

Active

RECOM Power

NON-ISOLATED DC/DC CONVERTERS 1A 7-28VIN 3.3VOUT SIP

Search across all available documentation for this part.

Active

RECOM Power

NON-ISOLATED DC/DC CONVERTERS 1A 7-28VIN 3.3VOUT SIP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated DC/DC Converters 8-28Vin 5V 1.0A THRU

Technical documentation and resources

Specification	R-78E3.3-1.0	R-78E Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max) [Max]	1 A	1 - 500 mA
Efficiency	91 %	88 - 95 %
Features	SCP	SCP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	3-SIP Module	3-SIP Module
Power (Watts)	3 W	2 - 8 W
Size / Dimension [x]	0.46 in	0.46 in
Size / Dimension [x]	11.6 mm	11.6 mm
Size / Dimension [y]	0.33 in	0.33 in
Size / Dimension [y]	8.5 mm	8.5 mm
Size / Dimension [z]	10.4 mm	10.4 mm
Size / Dimension [z]	0.41 "	0.41 "
Type	Linear Regulator Replacement	Linear Regulator Replacement
Voltage - Input (Max) [Max]	28 V	28 V
Voltage - Input (Min) [Min]	7 V	6 - 18 V
Voltage - Output 1	3.3 V	3.3 - 15 V

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Features	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Number of Outputs	Package / Case	Mounting Type	Voltage - Output 1	Power (Watts)	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Applications	Efficiency
RECOM Power R-78E5.0-0.5	0.46 in	10.4 mm	0.33 in	8.5 mm	0.41 "	11.6 mm	SCP	28 V	85 °C	-40 °C	Linear Regulator Replacement	1	3-SIP Module	Through Hole	5 V	3 W	7 V	500 mA	ITE (Commercial)	92 %
RECOM Power R-78E12-0.5	0.46 in	10.4 mm	0.33 in	8.5 mm	0.41 "	11.6 mm	SCP	28 V	85 °C	-40 °C	Linear Regulator Replacement	1	3-SIP Module	Through Hole	12 V	6 W	15 V	500 mA	ITE (Commercial)	95 %
RECOM Power R-78E15-0.5	0.46 in	10.4 mm	0.33 in	8.5 mm	0.41 "	11.6 mm	SCP	28 V	85 °C	-40 °C	Linear Regulator Replacement	1	3-SIP Module	Through Hole	15 V	8 W	18 V	500 mA	ITE (Commercial)	95 %
RECOM Power R-78E3.3-0.5	0.46 in	10.4 mm	0.33 in	8.5 mm	0.41 "	11.6 mm	SCP	28 V	85 °C	-40 °C	Linear Regulator Replacement	1	3-SIP Module	Through Hole	3.3 V	2 W	6 V	500 mA	ITE (Commercial)	88 %
RECOM Power R-78E3.3-1.0	0.46 in	10.4 mm	0.33 in	8.5 mm	0.41 "	11.6 mm	SCP	28 V	85 °C	-40 °C	Linear Regulator Replacement	1	3-SIP Module	Through Hole	3.3 V	3 W	7 V	1 A	ITE (Commercial)	91 %
