Specification	1-292165-4

Applications	General Purpose
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Mating	0.165 in
Contact Length - Post	0.126 in
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	0.268 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	0.358 in
Pitch - Mating	0.079 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Kinked Pin, Solder
Voltage Rating	125 V

292165 Series

Heavy Duty Power Connectors CT CRIMP-2 REC HSG 3P BLACK

Part	Accessory Type	For Use With/Related Products	Number of Positions

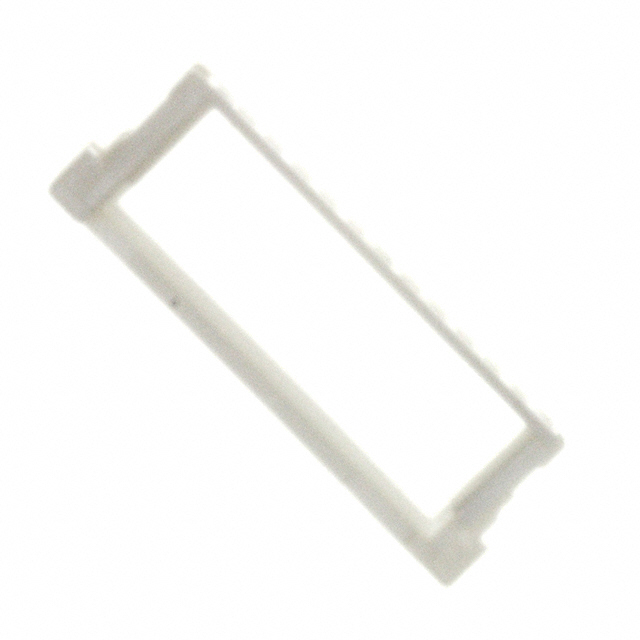

TE Connectivity AMP Connectors 2-353294-2	Shroud	Mini CT Series	22

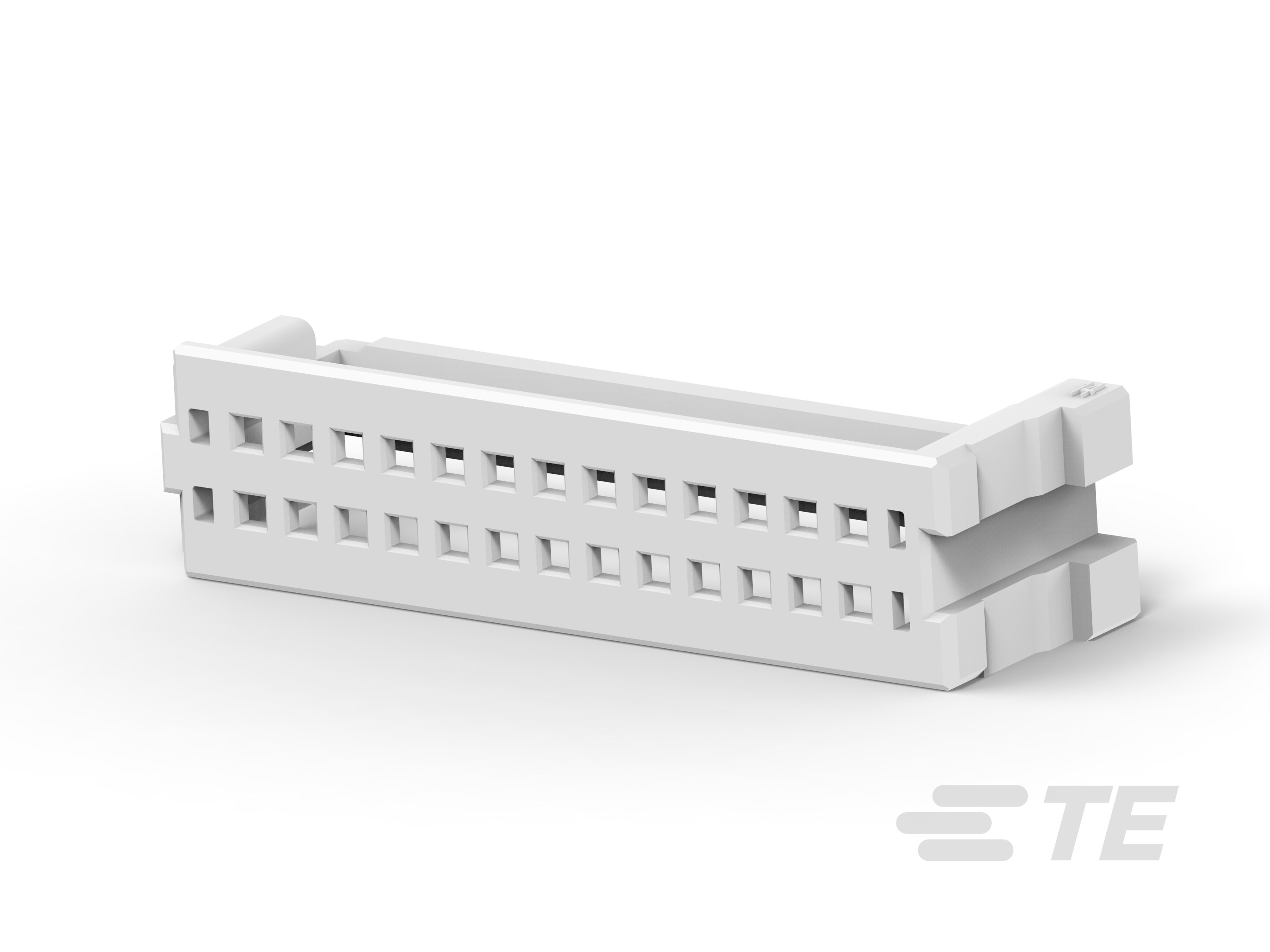

TE Connectivity AMP Connectors 2-353294-6	Shroud	Mini CT Series	26

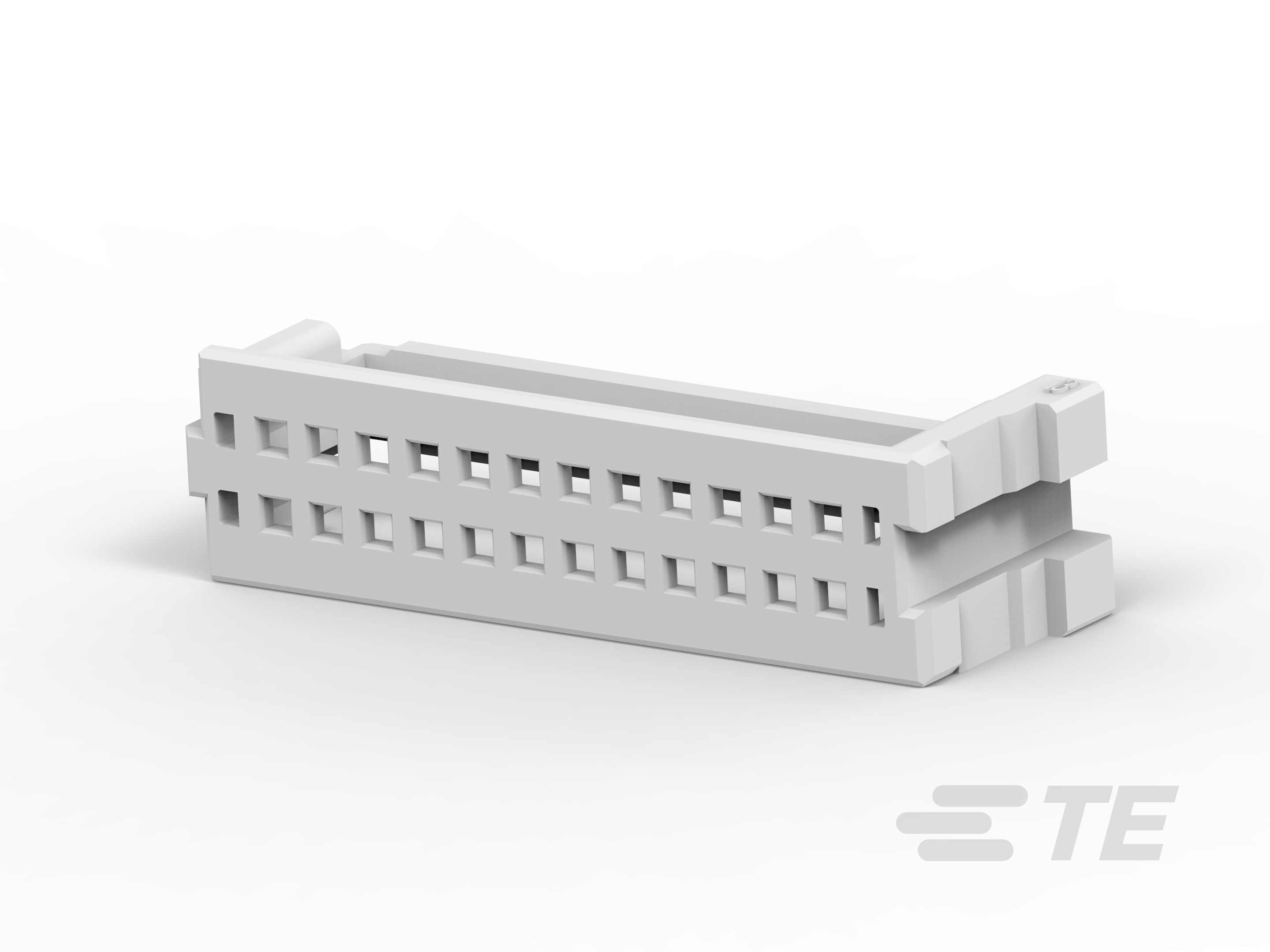

TE Connectivity AMP Connectors 2-353294-4	Shroud	Mini CT Series	24 pos

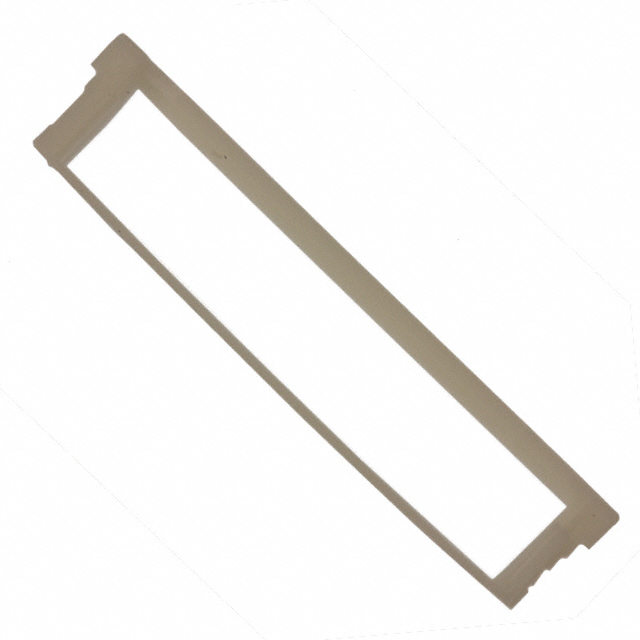

TE Connectivity AMP Connectors 4-353294-0	Shroud	Mini CT Series	40
