Specification	511JBA52M0000CAGR

Base Resonator	Crystal
Current - Supply (Disable) (Max)	18 mA
Current - Supply (Max)	23 mA
Frequency	52 MHz
Frequency Stability	25 ppm
Function	Enable, Disable
Height - Seated (Max)	0.043 in
Mounting Type	Surface Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Output	LVDS

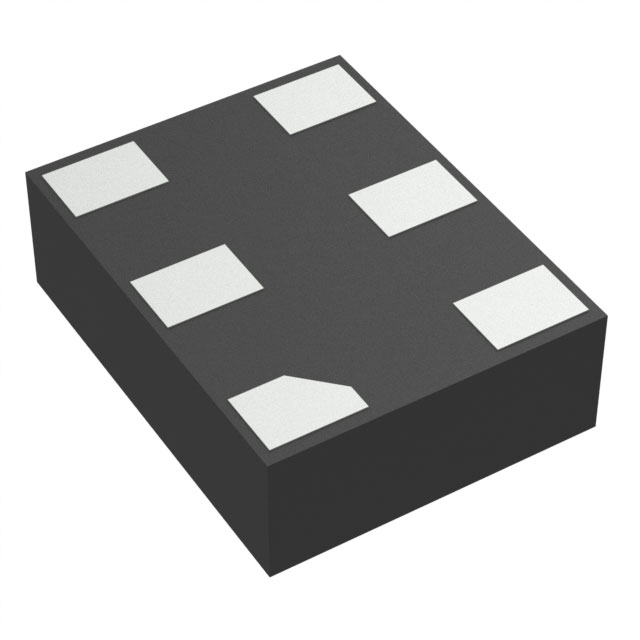

Package / Case	No Lead, 6-SMD
Package Length	3.2 mm
Package Name	6-SMD
Package Width	2.5 mm
Size / Dimension Length	0.126 in
Size / Dimension Width	0.098 in
Type	XO (Standard)
Voltage - Supply	1.8 V

511JBA Series

Part	Package Length	Package Name	Package Width	Current - Supply (Disable) (Max)	Frequency	Size / Dimension Width	Size / Dimension Length	Frequency Stability	Function	Height - Seated (Max)	Output	Type	Mounting Type	Voltage - Supply	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)	Base Resonator	Current - Supply (Max)
Skyworks Solutions Inc. 511JBA52M0000CAGR	3.2 mm	6-SMD	2.5 mm	18 mA	52 MHz	0.098 in	0.126 in	25 ppm	Disable Enable	0.043 in	LVDS	XO (Standard)	Surface Mount	1.8 V	6-SMD No Lead	-40 °C	85 °C	Crystal	23 mA
Skyworks Solutions Inc. 511JBA171M875BAGR	5 mm	6-SMD	3.2 mm	18 mA	171.875 MHz	0.126 in	0.197 in	25 ppm	Disable Enable	0.05 in 0.052 in	LVDS	XO (Standard)	Surface Mount	1.8 V	6-SMD No Lead	-40 °C	85 °C	Crystal	23 mA
Skyworks Solutions Inc. 511JBA250M000BAG	5 mm	6-SMD	3.2 mm	18 mA	250 MHz	0.126 in	0.197 in	25 ppm	Disable Enable	0.05 in 0.052 in	LVDS	XO (Standard)	Surface Mount	1.8 V	6-SMD No Lead	-40 °C	85 °C	Crystal	23 mA
Skyworks Solutions Inc. 511JBA200M000AAG	7 mm	6-SMD	5 mm	18 mA	200 MHz	0.197 in	0.276 in	25 ppm	Disable Enable	0.071 in	LVDS	XO (Standard)	Surface Mount	1.8 V	6-SMD No Lead	-40 °C	85 °C	Crystal	23 mA
Skyworks Solutions Inc. 511JBA171M875BAG				18 mA	171.875 MHz	0.126 in	0.197 in	25 ppm	Disable Enable	0.05 in	LVDS	XO (Standard)	Surface Mount	1.8 V	6-SMD No Lead	-40 °C	85 °C	Crystal	23 mA
Skyworks Solutions Inc. 511JBA135M000BAG	5 mm	6-SMD	3.2 mm	18 mA	135 MHz	0.126 in	0.197 in	25 ppm	Disable Enable	0.052 in	LVDS	XO (Standard)	Surface Mount	1.8 V	6-SMD No Lead	-40 °C	85 °C	Crystal	23 mA
Skyworks Solutions Inc. 511JBA150M000BAGR				18 mA	150 MHz	0.126 in	0.197 in	25 ppm	Disable Enable	0.05 in	LVDS	XO (Standard)	Surface Mount	1.8 V	6-SMD No Lead	-40 °C	85 °C	Crystal	23 mA
Skyworks Solutions Inc. 511JBA66M6670AAGR				18 mA	66.667 MHz	0.197 in	0.276 in	25 ppm	Disable Enable	0.071 in	LVDS	XO (Standard)	Surface Mount	1.8 V	6-SMD No Lead	-40 °C	85 °C	Crystal	23 mA
Skyworks Solutions Inc. 511JBA200M000BAGR	5 mm	6-SMD	3.2 mm	18 mA	200 MHz	0.126 in	0.197 in	25 ppm	Disable Enable	0.05 in 0.052 in	LVDS	XO (Standard)	Surface Mount	1.8 V	6-SMD No Lead	-40 °C	85 °C	Crystal	23 mA
Skyworks Solutions Inc. 511JBA233M000BAGR				18 mA	233 MHz	0.126 in	0.197 in	25 ppm	Disable Enable	0.05 in	LVDS	XO (Standard)	Surface Mount	1.8 V	6-SMD No Lead	-40 °C	85 °C	Crystal	23 mA
