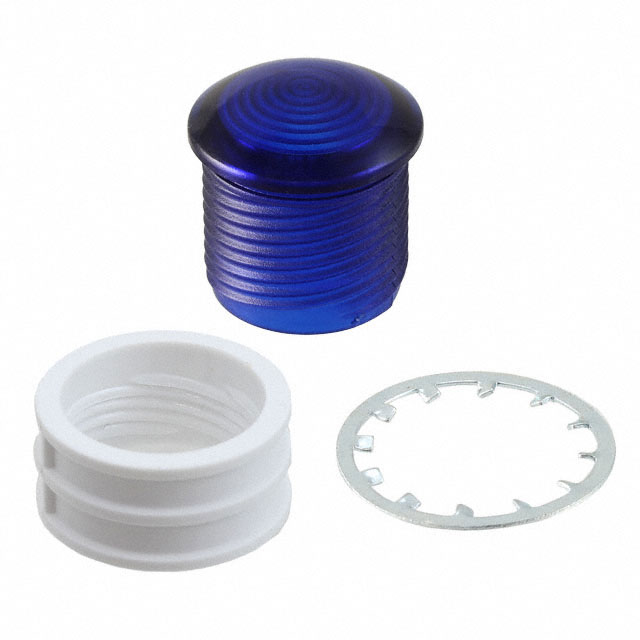

HMC_461_BTP
ActiveVisual Communications Company - VCC
LENS BLUE FRESNEL RING PANEL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HMC_461_BTP |
|---|---|
| Color | Blue |
| Lens Size [diameter] | 15.75 mm |
| Lens Style | Round with Convex Top |
| Lens Transparency | Clear |
| Material | Polycarbonate |
| Mounting Type | Panel Mount, Threaded Base |
| Number of LEDs | 1 |
| Optical Pattern | Fresnel Ring |
| Type | Lens Cap |
HMC_461 Series
| Part | Lens Style | Optical Pattern | Lens Transparency | Material | Color | Mounting Type | Lens Size [diameter] | Number of LEDs | Type |
|---|---|---|---|---|---|---|---|---|---|
Visual Communications Company - VCC | Round with Convex Top | Fresnel Ring | Clear | Polycarbonate | Blue | Panel Mount Threaded Base | 15.75 mm | 1 | Lens Cap |
Visual Communications Company - VCC | Round with Convex Top | Fresnel Ring | Clear | Polycarbonate | Green | Panel Mount Threaded Base | 15.75 mm | 1 | Lens Cap |
Visual Communications Company - VCC | Round with Convex Top | Fresnel Ring | Clear | Polycarbonate | Amber | Panel Mount Threaded Base | 15.75 mm | 1 | Lens Cap |
Visual Communications Company - VCC | Round with Convex Top | Fresnel Ring | Clear | Polycarbonate | Red | Panel Mount Threaded Base | 15.75 mm | 1 | Lens Cap |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.31 | |
| 10 | $ 2.21 | |||
| 100 | $ 1.70 | |||
| 500 | $ 1.54 | |||
| 1000 | $ 1.32 | |||
| 2000 | $ 1.25 | |||
| 5000 | $ 1.22 | |||
Description
General part information
HMC_461 Series
Lens Cap Blue Fresnel Ring Panel Mount, Threaded Base
