095-902-459-024

Active

Amphenol RF

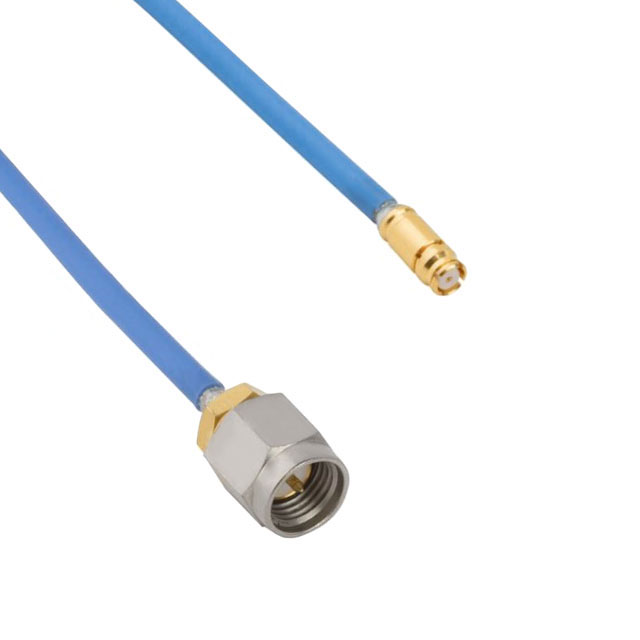

CBL ASSY SMA-SMP PLUG-PLUG 24"

Deep-Dive with AI

Search across all available documentation for this part.

095-902-459-024

Active

Amphenol RF

CBL ASSY SMA-SMP PLUG-PLUG 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	095-902-459-024

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMP Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	TFlex-405
Color	Blue
Features	Shielded
Frequency - Max [Max]	18 GHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms
Style	SMA to SMP

095-902 Series

...

Part	Style	Length	Length	1st Contact Gender	1st Connector Mounting Type	Cable Type	Frequency - Max [Max]	2nd Contact Gender	2nd Connector Mounting Type	Color	1st Connector	Overall Impedance	2nd Connector	Features	Cable Impedance	1st Connector Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Length
Amphenol RF 095-902-449-012	SMA to SMA	12 "	304.8 mm	Male	Free Hanging (In-Line)	Hand Formable .085	18 GHz	Male	Free Hanging (In-Line)	Gray	SMA Plug	50 Ohms	SMA Plug
Amphenol RF 095-902-475M050	SMA to SMA	19.69 "	50 cm	Male	Free Hanging (In-Line)	LMR 195	6000 MHz	Male	Free Hanging (In-Line)	Black	SMA Plug	50 Ohms	SMA Plug	Shielded	50 Ohms
Amphenol RF 095-902-480-036	SMA to SMA	36 in	91.44 cm	Male	Free Hanging (In-Line)	LMR 240	6000 MHz	Male	Free Hanging (In-Line)	Black	Right Angle SMA Plug	50 Ohms	SMA Plug	Shielded	50 Ohms
Amphenol RF 095-902-535-006	RP-SMA to RP-SMA	6 in	152.4 mm	Male	Panel Mount	RG-316	6000 MHz	Female	Free Hanging (In-Line)	Clear	RP-SMA Jack	50 Ohms		Shielded	50 Ohms	Bulkhead - Front Side Nut	-65 ░C	165 °C
Amphenol RF 095-902-463-010	SMA to Cable	10 in	254 mm	Female	Free Hanging (In-Line)	UT-085C	18 GHz			Gray	SMA Jack	50 Ohms	Cable (Round)	Shielded
Amphenol RF 095-902-476-024	SMA to SMA	24 "	609.6 mm	Male	Free Hanging (In-Line)	LMR 195	6000 MHz	Male	Free Hanging (In-Line)	Black	Right Angle SMA Plug	50 Ohms	SMA Plug	Shielded	50 Ohms
Amphenol RF 095-902-513-100	U.FL (UMCC) AMC to SMA			Female	Free Hanging (In-Line)	RG-178	3 GHz	Male	Free Hanging (In-Line)	Copper	U.FL (UMCC) AMC Plug Right Angle	50 Ohms	SMA Plug Right Angle		50 Ohms				0.1 m	3.937 in
Amphenol RF 095-902-513-050	U.FL (UMCC) AMC to SMA			Female	Free Hanging (In-Line)	RG-178	3 GHz	Male	Free Hanging (In-Line)	Copper	U.FL (UMCC) AMC Plug Right Angle	50 Ohms	SMA Plug Right Angle		50 Ohms				50 mm	1.969 in
Amphenol RF 095-902-477-048	SMA to SMA	48 in	1200 mm	Female	Panel Mount	LMR 195	6000 MHz	Male	Free Hanging (In-Line)	Black	SMA Jack	50 Ohms	SMA Plug	Shielded	50 Ohms	Bulkhead - Front Side Nut					4 ft
Amphenol RF 095-902-459-024	SMA to SMP	24 "	609.6 mm	Male	Free Hanging (In-Line)	TFlex-405	18 GHz	Female	Free Hanging (In-Line)	Blue	SMA Plug	50 Ohms	SMP Plug	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 85.50
		10	$ 66.43
		25	$ 60.39
		50	$ 56.32
		100	$ 52.63

Description

General part information

095-902 Series

Cable Assembly Coaxial SMA to SMP TFlex-405 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
