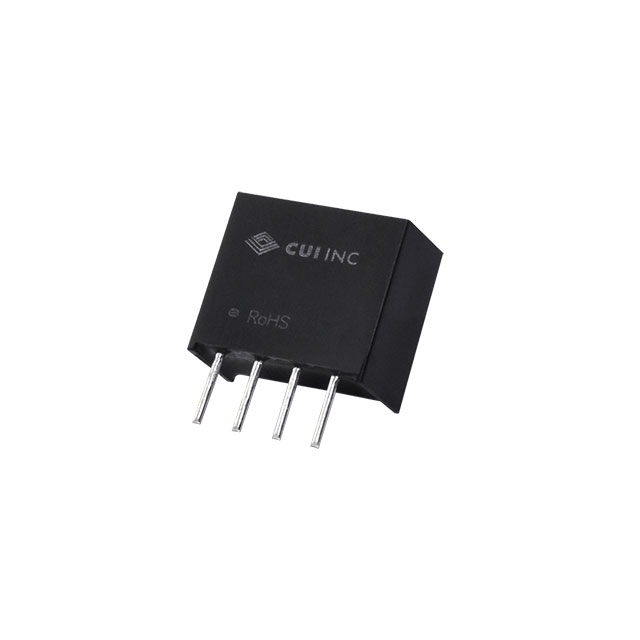

PQS075-S5-S15-S

CUI Inc.

DC DC CONVERTER 15V 750MW

Search across all available documentation for this part.

CUI Inc.

DC DC CONVERTER 15V 750MW

Technical Specifications

Parameters and characteristics for this part

Part	Efficiency	Power (Watts)	Approval Agency	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Voltage - Output 1	Applications	Voltage - Input (Min) [Min]	Voltage - Isolation	Current - Output (Max) [Max]	Mounting Type	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Type
CUI Inc. PQS075-S5-S15-S	74 %	0.75 W	CE	4-SIP Module	0.4 "	11.6 mm	0.46 in	10.2 mm	6 mm	0.24 "	5.25 V	15 V	ITE (Commercial)	4.75 V	1.5 kV	50 mA	Through Hole	1	85 °C	-40 °C	Isolated Module
CUI Inc. PQS075-S5-S5-S	72 %	0.75 W	CE	4-SIP Module	0.4 "	11.6 mm	0.46 in	10.2 mm	6 mm	0.24 "	5.25 V	5 V	ITE (Commercial)	4.75 V	1.5 kV	150 mA	Through Hole	1	85 °C	-40 °C	Isolated Module
CUI Inc. PQS075-S5-S9-S	72 %	747 mW	CE	4-SIP Module	0.4 "	11.6 mm	0.46 in	10.2 mm	6 mm	0.24 "	5.25 V	9 V	ITE (Commercial)	4.75 V	1.5 kV	83 mA	Through Hole	1	85 °C	-40 °C	Isolated Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.24

General part information

Isolated Module DC DC Converter 1 Output 15V 50mA 4.75V - 5.25V Input
