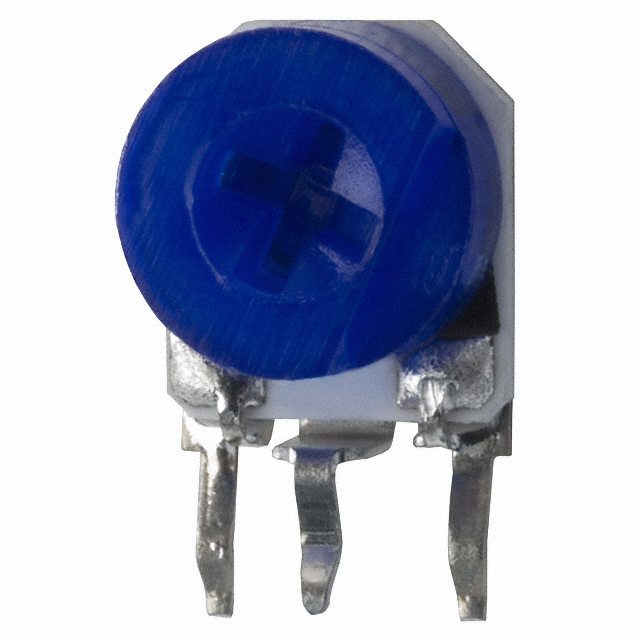

3306W-1-203
ActiveBourns Inc.
TRIMMER 20K OHM 0.2W PC PIN SIDE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3306W-1-203
ActiveBourns Inc.
TRIMMER 20K OHM 0.2W PC PIN SIDE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3306W-1-203 |
|---|---|
| Adjustment Type | Side Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 1 |
| Power (Watts) | 0.2 W |
| Power (Watts) | 1/5 |
| Resistance | 20 kOhms |
| Resistive Material | Cermet |
| Size / Dimension [x] | 6.81 mm |
| Size / Dimension [x] | 0.268 in |
| Size / Dimension [y] | 0.319 in |
| Size / Dimension [y] | 8.1 mm |
| Temperature Coefficient | 250 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 25 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.49 | |
| 10 | $ 0.46 | |||
| 25 | $ 0.41 | |||
| 50 | $ 0.40 | |||
| 200 | $ 0.37 | |||
| 400 | $ 0.36 | |||
| 600 | $ 0.33 | |||
| 1000 | $ 0.28 | |||
| 5000 | $ 0.23 | |||
Description
General part information
3306W Series
20 kOhms 0.2W, 1/5W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Side Adjustment
