337-037-500-168
ActiveEDAC Inc.

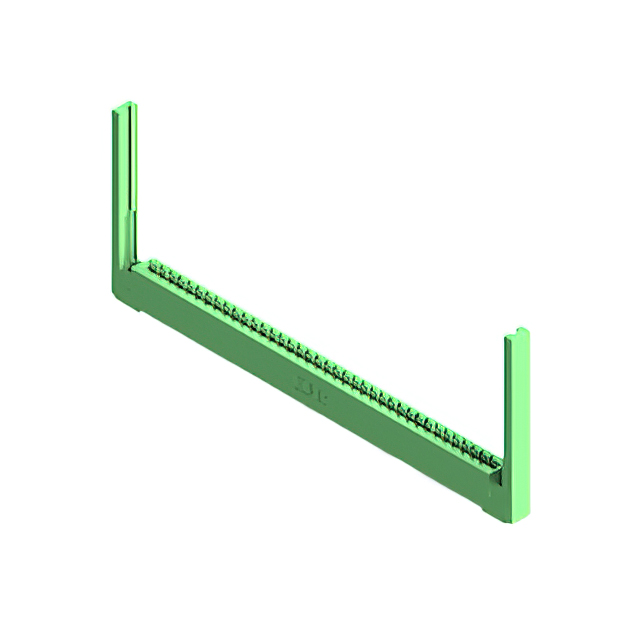

CONN EDGE SGL FMALE 37POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
337-037-500-168
ActiveEDAC Inc.
CONN EDGE SGL FMALE 37POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 337-037-500-168 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
337-037 Series
...
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Contact Material | Material - Insulation | Number of Positions | Mounting Type | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Type | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Pitch [x] | Pitch [x] | Termination Rows | Gender | Termination | Number of Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -40 °C | 105 ░C | 37 | 37 | 37 | Copper Alloy | Polyester Thermoplastic | 37 | Through Hole | Cantilever | 10 Áin | 0.25 Ám | Gold | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Non Specified - Single Edge | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | 1 | Female | Wire Wrap | 1 | |
EDAC Inc. | -40 °C | 105 ░C | 37 | 37 | 37 | Copper Alloy | Polyester Thermoplastic | 37 | Through Hole | Cantilever | 10 Áin | 0.25 Ám | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | 1 | Female | Solder | 1 | |||
EDAC Inc. | -40 °C | 105 ░C | 37 | 37 | 37 | Copper Alloy | Polyester Thermoplastic | 37 | Through Hole Right Angle | Cantilever | 10 Áin | 0.25 Ám | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | 1 | Female | Wire Wrap | 1 | |||
EDAC Inc. | -40 °C | 105 ░C | 37 | 37 | 37 | Copper Alloy | Polyester Thermoplastic | 37 | Through Hole | Cantilever | 10 Áin | 0.25 Ám | Gold | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Non Specified - Single Edge | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | 1 | Female | Wire Wrap | 1 | |
EDAC Inc. | -40 °C | 105 ░C | 37 | 37 | 37 | Copper Alloy | Polyester Thermoplastic | 37 | Through Hole | Cantilever | 10 Áin | 0.25 Ám | Gold | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Non Specified - Single Edge | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | 1 | Female | Solder | 1 | |
EDAC Inc. | -40 °C | 105 ░C | 37 | 37 | 37 | Copper Alloy | Polyester Thermoplastic | 37 | Through Hole | Cantilever | 10 Áin | 0.25 Ám | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | 1 | Female | Wire Wrap | 1 | |||
EDAC Inc. | -40 °C | 105 ░C | 37 | 37 | 37 | Copper Alloy | Polyester Thermoplastic | 37 | Through Hole | Cantilever | 10 Áin | 0.25 Ám | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | 1 | Female | Solder Eyelet(s) | 1 | Card Guides | ||
EDAC Inc. | -40 °C | 105 ░C | 37 | 37 | 37 | Copper Alloy | Polyester Thermoplastic | 37 | Through Hole | Cantilever | 10 Áin | 0.25 Ám | Gold | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | 1 | Female | Solder | 1 | Card Guides | ||
EDAC Inc. | -40 °C | 105 ░C | 37 | 37 | 37 | Copper Alloy | Polyester Thermoplastic | 37 | Through Hole | Cantilever | 10 Áin | 0.25 Ám | Gold | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Non Specified - Single Edge | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | 1 | Female | Solder | 1 | |
EDAC Inc. | -40 °C | 105 ░C | 37 | 37 | 37 | Copper Alloy | Polyester Thermoplastic | 37 | Through Hole Right Angle | Cantilever | 10 Áin | 0.25 Ám | Gold | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Non Specified - Single Edge | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | 3.96 mm | 1 | Female | Wire Wrap | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 27.70 | |
Description
General part information
337-037 Series
37 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
