Specification	7907-25FTBG00A

Color	Black
Connector Layout	DB, B
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating	1 A
Dielectric Material	Polyester Thermoplastic, Glass Filled
Finish	Tin Plated
Flange Feature	Shell (Unthreaded), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	25
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Primary Material	Metal
Shell Material	Metal
Shell Size	3
Termination	Solder Cup

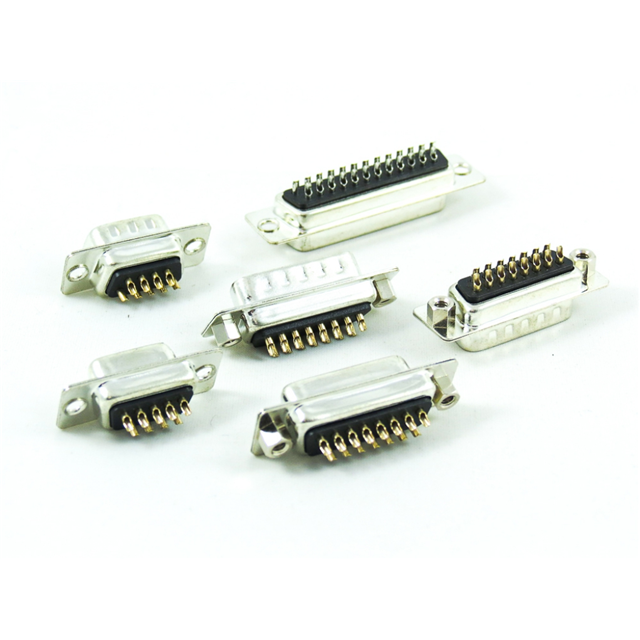

7907 Series

Part	Material Flammability Rating	Number of Positions	Mounting Type	Contact Type	Contact Finish Thickness (string set options)	Contact Finish Thickness	Shell Material	Finish	Termination	Flange Feature	Primary Material	Connector Style	Contact Finish	Current Rating	Shell Size	Connector Layout	Connector Type	Number of Rows	Contact Material	Color	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Features
Oupiin 7907-25FTBG00A	UL94 V-0	25	Free Hanging (In-Line)	Signal	Flash	Flash	Metal	Tin Plated	Solder Cup	Housing Shell (Unthreaded)	Metal	D-Sub	Gold	1 A	3	B DB	Female Sockets Receptacle	2	Copper Alloy	Black	Glass Filled Polyester Thermoplastic	-55 °C	105 °C
Oupiin 7907-09FTBG00A	UL94 V-0	9	Free Hanging (In-Line)	Signal	Flash	Flash	Metal	Tin Plated	Solder Cup	Housing Shell (Unthreaded)	Metal	D-Sub	Gold	1 A	1	DE E	Female Sockets Receptacle	2	Copper Alloy	Black	Glass Filled Polyester Thermoplastic	-55 °C	105 °C
Oupiin 7907-09MTWG00A	UL94 V-0	9	Free Hanging (In-Line)	Signal	Flash	Flash	Metal	Tin Plated	Solder Cup	Housing Shell (Unthreaded)	Metal	D-Sub	Gold	1 A	1	DE E	Male Pins Plug	2	Copper Alloy	White	Glass Filled Polyester Thermoplastic	-55 °C	105 °C	Grounding Indents
Oupiin 7907-15FTBG00A	UL94 V-0	15	Free Hanging (In-Line)	Signal	Flash	Flash	Metal	Tin Plated	Solder Cup	Housing Shell (Unthreaded)	Metal	D-Sub	Gold	1 A	2	A DA	Female Sockets Receptacle	2	Copper Alloy	Black	Glass Filled Polyester Thermoplastic	-55 °C	105 °C
Oupiin 7907-15FTWG00A	UL94 V-0	15	Free Hanging (In-Line)	Signal	Flash	Flash	Metal	Tin Plated	Solder Cup	Housing Shell (Unthreaded)	Metal	D-Sub	Gold	1 A	2	A DA	Female Sockets Receptacle	2	Copper Alloy	White	Glass Filled Polyester Thermoplastic	-55 °C	105 °C
Oupiin 7907-25MTBG00A	UL94 V-0	25	Free Hanging (In-Line)	Signal	Flash	Flash	Metal	Tin Plated	Solder Cup	Housing Shell (Unthreaded)	Metal	D-Sub	Gold	1 A	3	B DB	Male Pins Plug	2	Copper Alloy	Black	Glass Filled Polyester Thermoplastic	-55 °C	105 °C	Grounding Indents
Oupiin 7907-09MTBG00A	UL94 V-0	9	Free Hanging (In-Line)	Signal	Flash	Flash	Metal	Tin Plated	Solder Cup	Housing Shell (Unthreaded)	Metal	D-Sub	Gold	1 A	1	DE E	Male Pins Plug	2	Copper Alloy	Black	Glass Filled Polyester Thermoplastic	-55 °C	105 °C	Grounding Indents
Oupiin 7907-15MTBG00A	UL94 V-0	15	Free Hanging (In-Line)	Signal	Flash	Flash	Metal	Tin Plated	Solder Cup	Housing Shell (Unthreaded)	Metal	D-Sub	Gold	1 A	2	A DA	Male Pins Plug	2	Copper Alloy	Black	Glass Filled Polyester Thermoplastic	-55 °C	105 °C	Grounding Indents
