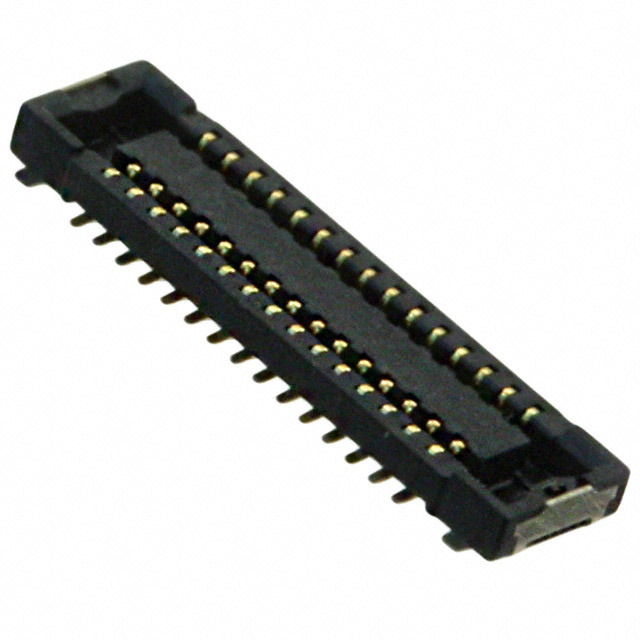

AXE530124

Obsolete

Panasonic Electric Works

CONN SOCKET 30POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN SOCKET 30POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXE530124

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.03 in
Height Above Board [z]	0.75 mm
Mated Stacking Heights	1 mm, 0.8 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Contact Finish	Number of Rows	Features	Mated Stacking Heights	Mounting Type	Height Above Board [z]	Height Above Board [z]	Connector Type	Pitch [x]	Pitch [x]	Number of Positions
Panasonic Electric Works AXE530124	Gold	2	Solder Retention	0.8 mm 1 mm	Surface Mount	0.03 in	0.75 mm	Socket Center Strip Contacts	0.016 in	0.4 mm	30

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

30 Position Connector Socket, Center Strip Contacts Surface Mount Gold
