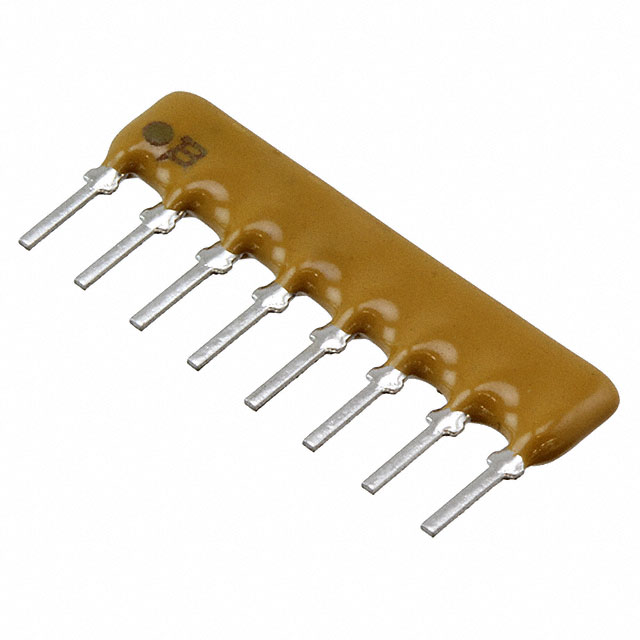

4608X-101-564LF

Active

Bourns Inc.

RES ARRAY 7 RES 560K OHM 8SIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 4300 vs. 4600 Model Bulletin

4608X-101-564LF

Active

Bourns Inc.

RES ARRAY 7 RES 560K OHM 8SIP

Deep-Dive with AI

DocumentsDatasheet 4300 vs. 4600 Model Bulletin

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4608X-101-564LF

Circuit Type	Bussed
Height - Seated (Max) [Max] [z]	5.08 mm
Height - Seated (Max) [Max] [z]	0.2 "
Mounting Type	Through Hole
Number of Pins	8
Number of Resistors	7
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	8-SIP
Power Per Element	200 mW
Resistance (Ohms)	560 kOhms
Size / Dimension [x]	0.798 "
Size / Dimension [x]	20.27 mm
Size / Dimension [y]	0.098 in
Size / Dimension [y]	2.49 mm
Supplier Device Package	8-SIP
Temperature Coefficient	100 ppm/°C
Tolerance	2 %

4608X Series

...

Part	Circuit Type	Power Per Element	Supplier Device Package	Mounting Type	Number of Pins	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Number of Resistors	Resistance (Ohms)	Tolerance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Resistance (Ohms)
Bourns Inc. 4608X-102-102LF	Isolated	300 mW	8-SIP	Through Hole	8	-55 °C	125 °C	100 ppm/°C	4	1 kOhms	2 %	0.798 "	20.27 mm	0.098 in	2.49 mm	8-SIP	5.08 mm	0.2 "
Bourns Inc. 4608X-102-331	Isolated	300 mW	8-SIP	Through Hole	8	-55 °C	125 °C	100 ppm/°C	4	330 Ohms	2 %	0.798 "	20.27 mm	0.098 in	2.49 mm	8-SIP	5.08 mm	0.2 "
Bourns Inc. 4608X-102-183LF	Isolated	300 mW	8-SIP	Through Hole	8	-55 °C	125 °C	100 ppm/°C	4	18 kOhms	2 %	0.798 "	20.27 mm	0.098 in	2.49 mm	8-SIP	5.08 mm	0.2 "
Bourns Inc. 4608X-102-152LF	Isolated	300 mW	8-SIP	Through Hole	8	-55 °C	125 °C	100 ppm/°C	4	1.5 kOhms	2 %	0.798 "	20.27 mm	0.098 in	2.49 mm	8-SIP	5.08 mm	0.2 "
Bourns Inc. 4608X-102-125LF	Isolated	300 mW	8-SIP	Through Hole	8	-55 °C	125 °C	100 ppm/°C	4	1.2 M	2 %	0.798 "	20.27 mm	0.098 in	2.49 mm	8-SIP	5.08 mm	0.2 "
Bourns Inc. 4608X-AP2-473LF	Isolated	300 mW	8-SIP	Through Hole	8	-55 °C	125 °C	100 ppm/°C	4		2 %	0.798 "	20.27 mm	0.098 in	2.49 mm	8-SIP	5.08 mm	0.2 "	47k
Bourns Inc. 4608X-101-564LF	Bussed	200 mW	8-SIP	Through Hole	8	-55 °C	125 °C	100 ppm/°C	7	560 kOhms	2 %	0.798 "	20.27 mm	0.098 in	2.49 mm	8-SIP	5.08 mm	0.2 "
Bourns Inc. 4608X-102-510LF	Isolated	300 mW	8-SIP	Through Hole	8	-55 °C	125 °C	100 ppm/°C	4	51 Ohms	2 %	0.798 "	20.27 mm	0.098 in	2.49 mm	8-SIP	5.08 mm	0.2 "
Bourns Inc. 4608X-101-681LF	Bussed	200 mW	8-SIP	Through Hole	8	-55 °C	125 °C	100 ppm/°C	7	680 Ohms	2 %	0.798 "	20.27 mm	0.098 in	2.49 mm	8-SIP	5.08 mm	0.2 "
Bourns Inc. 4608X-101-151LF	Bussed	200 mW	8-SIP	Through Hole	8	-55 °C	125 °C	100 ppm/°C	7	150 Ohms	2 %	0.798 "	20.27 mm	0.098 in	2.49 mm	8-SIP	5.08 mm	0.2 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2000	$ 0.10

Description

General part information

4608X Series

560k Ohm ±2% 200mW Power Per Element Bussed 7 Resistor Network/Array ±100ppm/°C 8-SIP
