Specification	7029-3411

1st Connector	SMA Jack
1st Connector Mounting Feature	Front Side Nut, Bulkhead
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	TFlex
Cable Type Size	405
Color	Blue
Features	Shielded
Frequency - Max	18 GHz
Length	0.5 ft
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Overall Impedance	50 Ohms
Style	SMA

7029-34 Series

Part	2nd Connector	Length	Features	Frequency - Max	Cable Type Size	Cable Type	Cable Diameter	Cable Outer Diameter	Operating Temperature (Min)	Operating Temperature (Max)	1st Connector	2nd Contact Gender	2nd Connector Mounting Type	Style	Color	1st Connector Mounting Type	1st Contact Gender	Overall Impedance	1st Connector Mounting Feature
McGill Microwave Systems 7029-3437	SMA Plug	0.5 ft	Shielded	26.5 GHz	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	-65 °C	165 °C	SMA Plug	Male	Free Hanging (In-Line)	SMA	Blue	Free Hanging (In-Line)	Male	50 Ohms

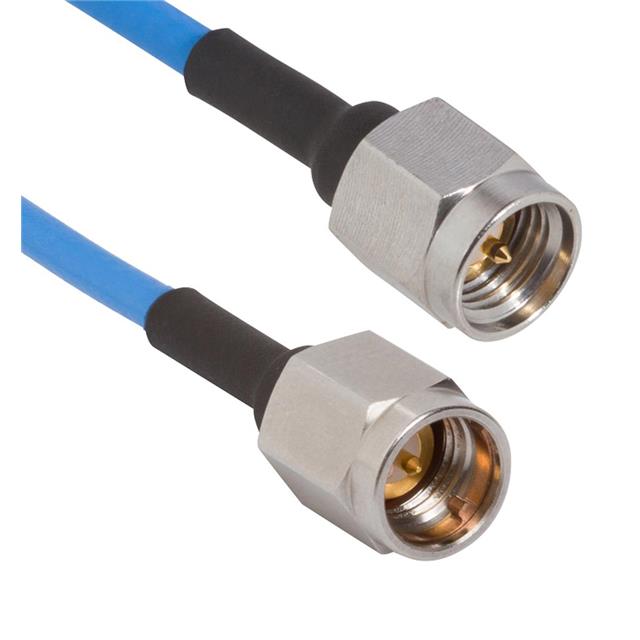

McGill Microwave Systems 7029-3413	SMA Plug	0.5 ft	Shielded	18 GHz	405	TFlex			-65 °C	165 °C	SMA Plug	Male	Free Hanging (In-Line)	SMA	Blue	Free Hanging (In-Line)	Male	50 Ohms
McGill Microwave Systems 7029-3436	SMA Plug	12 in	Shielded	26.5 GHz	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	-65 °C	165 °C	SMA Plug	Male	Free Hanging (In-Line)	SMA	Blue	Free Hanging (In-Line)	Male	50 Ohms
McGill Microwave Systems 7029-3411	SMA Plug	0.5 ft	Shielded	18 GHz	405	TFlex			-65 °C	165 °C	SMA Jack	Male	Free Hanging (In-Line)	SMA	Blue	Panel Mount	Female	50 Ohms	Bulkhead Front Side Nut

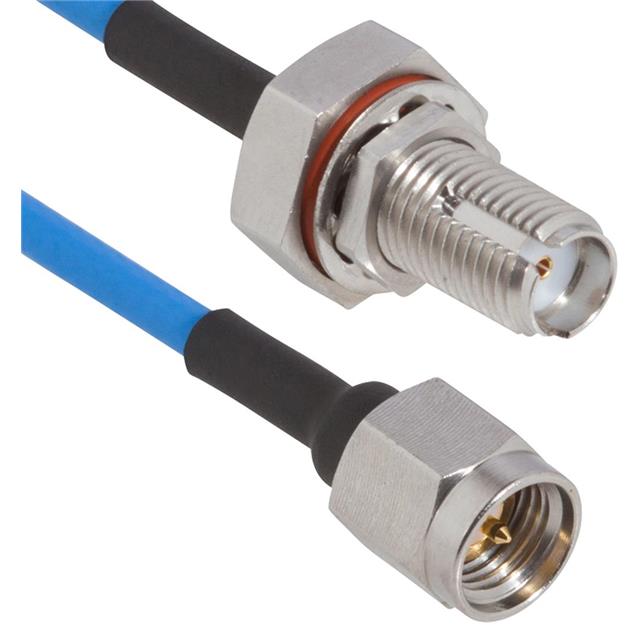

McGill Microwave Systems 7029-3410	SMA Plug	0.5 ft	Shielded	18 GHz	405	TFlex			-65 °C	165 °C	SMA Jack	Male	Free Hanging (In-Line)	SMA	Blue	Panel Mount	Female	50 Ohms	Bulkhead Front Side Nut

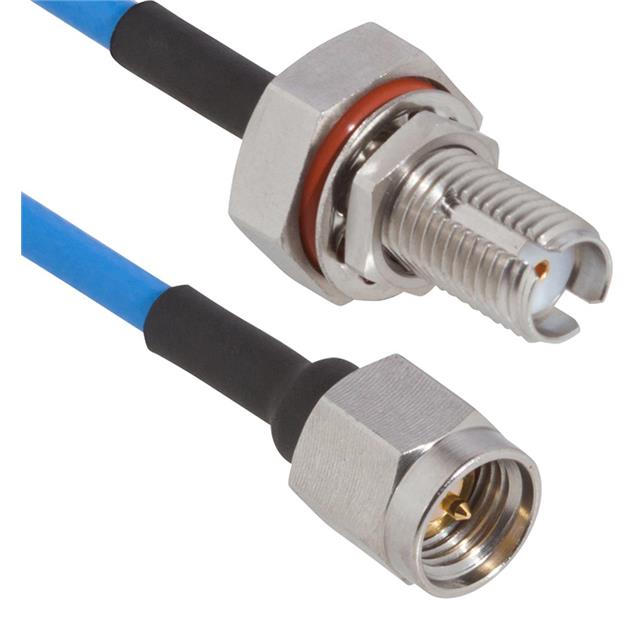

McGill Microwave Systems 7029-3408	SMA Plug	0.5 ft	Shielded	18 GHz	405	TFlex			-65 °C	165 °C	SMA Jack	Male	Free Hanging (In-Line)	SMA	Blue	Panel Mount	Female	50 Ohms	Bulkhead Front Side Nut
