H8MMH-1406G

Active

Assmann WSW Components

DIP CABLE - HDM14H/AE14G/HDM14H

Search across all available documentation for this part.

Active

Assmann WSW Components

DIP CABLE - HDM14H/AE14G/HDM14H

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

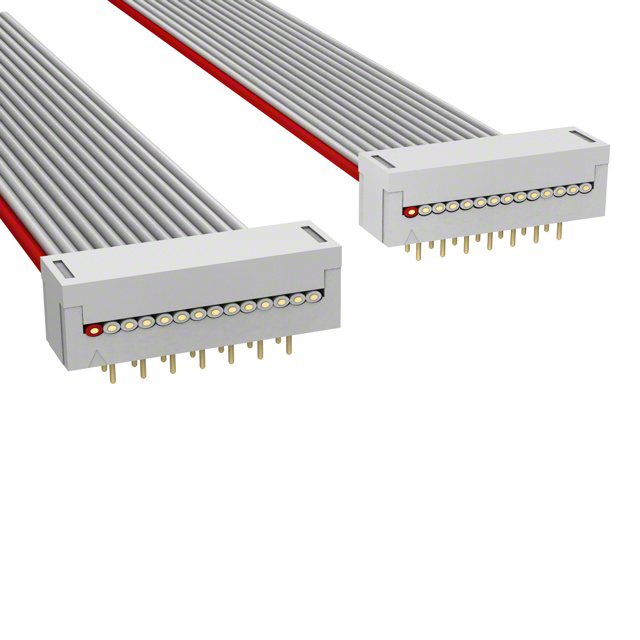

14 Position Cable Assembly Rectangular DIP to DIP, Reversed 0.500' (152.40mm, 6.00")

Technical documentation and resources

Part	Number of Rows	Shielding	Usage	Contact Finish	Length [x]	Length [x]	Cable Termination	Pitch - Cable	Pitch - Cable	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Color	Connector Type	Pitch - Connector	Pitch - Connector	Length	Length	Length
Assmann WSW Components H8MMH-1436M	2	Unshielded	Board In, Socket (0.1")	Gold	3 ft	914.4 mm	IDC	0.05 "	1.27 mm	14	0.76 Ám	30 Áin	Multiple, Ribbon	DIP to DIP, Reversed	0.1 in	2.54 mm
Assmann WSW Components H8MMH-1418M	2	Unshielded	Board In, Socket (0.1")	Gold	1.5 ft	457.2 mm	IDC	0.05 "	1.27 mm	14	0.76 Ám	30 Áin	Multiple, Ribbon	DIP to DIP, Reversed	0.1 in	2.54 mm
Assmann WSW Components H8MMH-1406G	2	Unshielded	Board In, Socket (0.1")	Gold			IDC	0.05 "	1.27 mm	14	0.76 Ám	30 Áin		DIP to DIP, Reversed	0.1 in	2.54 mm	152.4 mm	6 "	0.5 '
Assmann WSW Components H8MMH-1436G	2	Unshielded	Board In, Socket (0.1")	Gold	3 ft	914.4 mm	IDC	0.05 "	1.27 mm	14	0.76 Ám	30 Áin		DIP to DIP, Reversed	0.1 in	2.54 mm
