745-063-525-101
ActiveEDAC Inc.

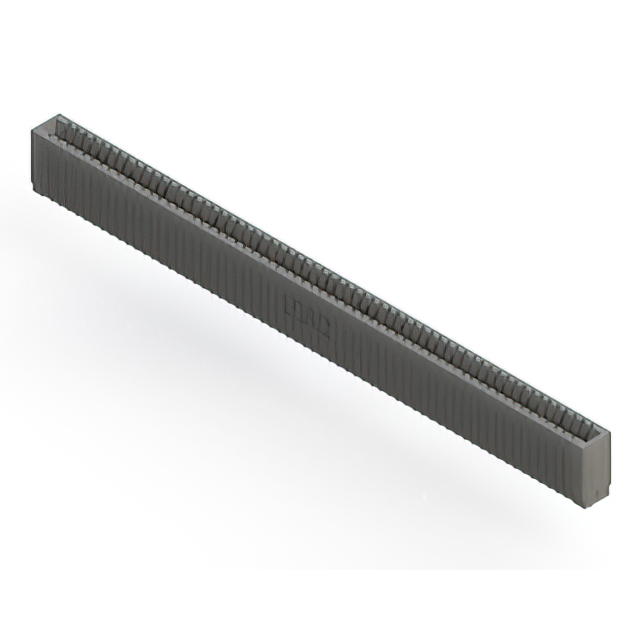

CONN EDGE SINGLE FML 63POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
745-063-525-101
ActiveEDAC Inc.
CONN EDGE SINGLE FML 63POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 745-063-525-101 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 63 |
| Number of Positions/Bay/Row [custom] | 63 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Press-Fit |
| Termination Rows | 1 |
745-063 Series
| Part | Termination Rows | Color | Contact Type | Termination | Contact Material | Gender | Number of Rows | Number of Positions | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Material - Insulation | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Contact Finish | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1 | Black | Cantilever | Press-Fit | Copper Alloy | Female | 1 | 63 | Through Hole | 0.76 Ám | 30 Áin | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Polyester Thermoplastic | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Gold | 63 |
EDAC Inc. | 1 | Black | Cantilever | Press-Fit | Copper Alloy | Female | 1 | 63 | Through Hole | 0.76 Ám | 30 Áin | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Polyester Thermoplastic | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Gold | 63 |
EDAC Inc. | 1 | Black | Cantilever | Press-Fit Wire Wrap | Copper Alloy | Female | 1 | 63 | Through Hole | 0.76 Ám | 30 Áin | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Polyester Thermoplastic | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Gold | 63 |
EDAC Inc. | 1 | Black | Cantilever | Press-Fit Wire Wrap | Copper Alloy | Female | 1 | 63 | Through Hole | 0.76 Ám | 30 Áin | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Polyester Thermoplastic | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Gold | 63 |
EDAC Inc. | 1 | Black | Cantilever | Press-Fit Wire Wrap | Copper Alloy | Female | 1 | 63 | Through Hole | 0.76 Ám | 30 Áin | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Polyester Thermoplastic | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Gold | 63 |
EDAC Inc. | 1 | Black | Cantilever | Press-Fit Wire Wrap | Copper Alloy | Female | 1 | 63 | Through Hole | 0.76 Ám | 30 Áin | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Polyester Thermoplastic | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Gold | 63 |
EDAC Inc. | 1 | Black | Cantilever | Press-Fit | Copper Alloy | Female | 1 | 63 | Through Hole | 0.76 Ám | 30 Áin | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Polyester Thermoplastic | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Gold | 63 |
EDAC Inc. | 1 | Black | Cantilever | Press-Fit | Copper Alloy | Female | 1 | 63 | Through Hole | 0.76 Ám | 30 Áin | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Polyester Thermoplastic | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Gold | 63 |
EDAC Inc. | 1 | Black | Cantilever | Press-Fit | Copper Alloy | Female | 1 | 63 | Through Hole | 0.76 Ám | 30 Áin | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Polyester Thermoplastic | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Gold | 63 |
EDAC Inc. | 1 | Black | Cantilever | Press-Fit | Copper Alloy | Female | 1 | 63 | Through Hole | 0.76 Ám | 30 Áin | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Polyester Thermoplastic | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Gold | 63 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 13.89 | |
Description
General part information
745-063 Series
63 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
