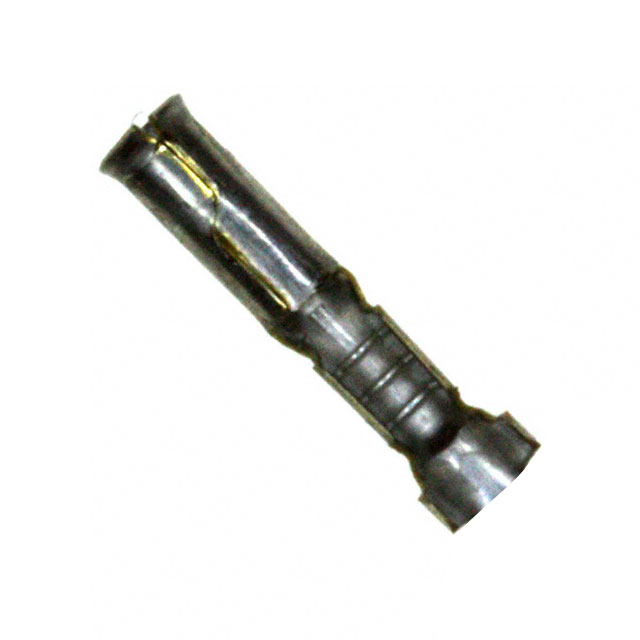

61622-1
ActiveTE Connectivity AMP Connectors
045SQ POST REC 24-20 010PTPBR ROHS COMPLIANT: YES
61622-1
ActiveTE Connectivity AMP Connectors
045SQ POST REC 24-20 010PTPBR ROHS COMPLIANT: YES
Description
General part information
61622 Series
Receptacle, 1.14 mm [.045 in] Pin Diameter, 24 – 20 AWG, .2 – .6 mm² Wire, 404 – 1021 CMA, Open Barrel, Tin Plating, 10.54 mm [.414 in] Length, Reel
Technical Specifications
Parameters and characteristics for this part
| Specification | 61622-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Diameter - Barrel | 0.062 in |
| Insulation | Non-Insulated |
| Insulation Diameter | 0.07 in |
| Length - Barrel | 0.19 in |
| Length - Overall | 0.415 in |
| Terminal Type | Receptacle (Socket), Female |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
