Specification	330369

Features	Brazed Seam, Serrated Mating Area
Insulation	Non-Insulated
Number of Wire Entries	2
Terminal Type	Inline, Individual Openings, Butt Splice
Termination	Crimp
Wire Gauge (AWG) (Max)	12 AWG
Wire Gauge (AWG) (Min)	10 AWG

3303 Series

Part	Insulation	Features	Number of Wire Entries	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Terminal Type	Termination	Color

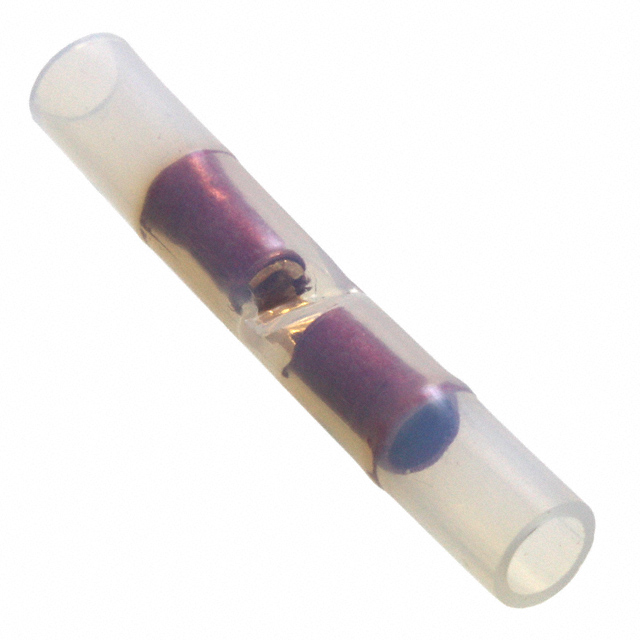

TE Connectivity AMP Connectors 330378	Fully Insulated	Serrated Mating Area	2	18 AWG	16 AWG	Butt Splice Individual Openings Inline	Crimp	Natural
TE Connectivity AMP Connectors 330369	Non-Insulated	Brazed Seam Serrated Mating Area	2	12 AWG	10 AWG	Butt Splice Individual Openings Inline	Crimp
TE Connectivity AMP Connectors 330377	Fully Insulated	Serrated Mating Area	2	22 AWG	19.5 AWG	Butt Splice Individual Openings Inline	Crimp	Natural
TE Connectivity AMP Connectors 330379	Fully Insulated	Serrated Mating Area	2	14 AWG	12 AWG	Butt Splice Individual Openings Inline	Crimp	Blue
