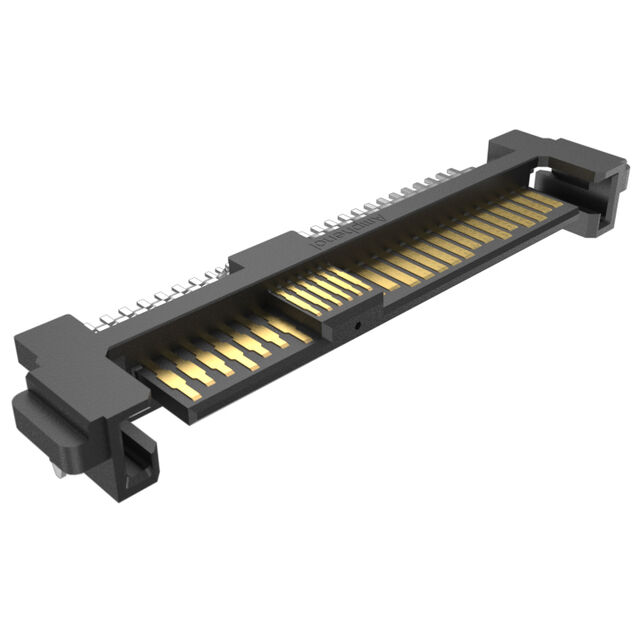

PSAS4M2130081TR

Active

Amphenol ICC (FCI)

SAS/PCIE 4.0 (U.2 & U.3) CONNECT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

SAS/PCIE 4.0 (U.2 & U.3) CONNECT

Technical Specifications

Parameters and characteristics for this part

Specification	PSAS4M2130081TR

Connector Style	Plug
Connector Type	SAS/PCIe
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Solder Retention, Board Guide, Pick and Place Cap
Mounting Type	Surface Mount, Right Angle
Number of Positions	68
Termination	Solder

Part	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Termination	Contact Finish	Features	Connector Style	Number of Positions	Mounting Type
Amphenol ICC (FCI) PSAS4M2130081TR	0.76 Ám	30 Áin	SAS/PCIe	Solder	Gold	Board Guide Pick and Place Cap Solder Retention	Plug	68	Surface Mount Right Angle
Amphenol ICC (FCI) PSAS4F2130122TR	0.38 µm	15 µin	SAS/PCIe	Solder	Gold	Board Lock Mating Guide Pick and Place Solder Retention	Receptacle	68	Surface Mount Right Angle
