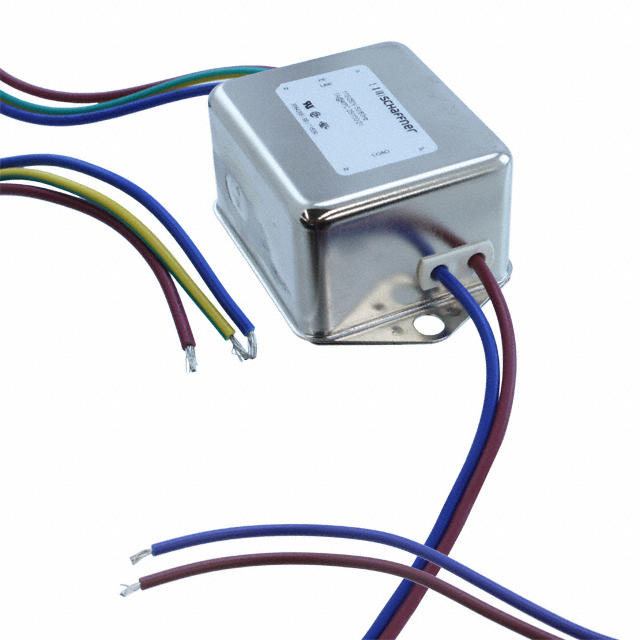

FN2060-16-07

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 250VAC 16A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN2060-16-07

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 250VAC 16A CHASSIS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN2060-16-07

Applications	General Purpose
Approval Agency	UR, CSA, ENEC, CE
Configuration	Two Stage
Current	16 A
Filter Type	Single Phase
Frequency - Operating	400 Hz
Inductance	650 µH
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Wire Leads
Voltage - Rated AC	250 V

FN2060 Series

Part	Configuration	Current	Applications	Operating Temperature [custom]	Termination Style	Mounting Type	Filter Type	Frequency - Operating	Voltage - Rated AC	Inductance	Approval Agency
TE Connectivity Raychem Cable Protection FN2060-10-06	Two Stage	10 A	General Purpose	-25 °C 100 °C	Quick Connect	Chassis Mount	Single Phase	400 Hz	250 V	800 µH	CE CSA ENEC UR
TE Connectivity Raychem Cable Protection FN2060-16-07	Two Stage	16 A	General Purpose	-25 °C 100 °C	Wire Leads	Chassis Mount	Single Phase	400 Hz	250 V	650 µH	CE CSA ENEC UR
TE Connectivity Raychem Cable Protection FN2060-12-06	Two Stage	12 A	General Purpose	-25 °C 100 °C	Quick Connect	Chassis Mount	Single Phase	400 Hz	250 V	580 µH	CE CSA ENEC UR
TE Connectivity Raychem Cable Protection FN2060-16-08	Two Stage	16 A	General Purpose	-25 °C 100 °C	Threaded Post (M4)	Chassis Mount	Single Phase	400 Hz	250 V	650 µH	CE CSA ENEC UR
TE Connectivity Raychem Cable Protection FN2060-3-06	Two Stage	3 A	General Purpose	-25 °C 100 °C	Quick Connect	Chassis Mount	Single Phase	400 Hz	250 V	2.5 mH	CE CSA ENEC UR
TE Connectivity Raychem Cable Protection FN2060B-3-06	Two Stage	3 A	General Purpose	-25 °C 100 °C	Quick Connect	Chassis Mount	Single Phase	400 Hz	250 V	2.5 mH	CE CSA ENEC UR
TE Connectivity Raychem Cable Protection FN2060-12-07	Two Stage	12 A	General Purpose	-25 °C 100 °C	Wire Leads	Chassis Mount	Single Phase	400 Hz	250 V	580 µH	CE CSA ENEC UR
TE Connectivity Raychem Cable Protection FN2060-20-08	Two Stage	20 A	General Purpose	-25 °C 100 °C	Threaded Post (M4)	Chassis Mount	Single Phase	400 Hz	250 V	600 µH	CE CSA ENEC UR
TE Connectivity Raychem Cable Protection FN2060-3-07	Two Stage	3 A	General Purpose	-25 °C 100 °C	Wire Leads	Chassis Mount	Single Phase	400 Hz	250 V	2.5 mH	CE CSA ENEC UR
TE Connectivity Raychem Cable Protection FN2060-20-08	Two Stage	20 A	General Purpose	-25 °C 100 °C	Threaded Post (M4)	Chassis Mount	Single Phase	400 Hz	250 V	600 µH	CE CSA ENEC UR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 48.34
		10	$ 39.42
		25	$ 36.35
		40	$ 34.86
		80	$ 34.38

Description

General part information

FN2060 Series

Single Phase EMC/EMI Line Filter 16 A 250V DC ~ 400Hz Two Stage Wire Leads
