2956026

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 120V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 120V

Technical Specifications

Parameters and characteristics for this part

RELAY GEN PURPOSE SPDT 120V

Part	Coil Voltage	Coil Type	Termination Style	Operate Time	Features	Relay Type	Contact Form	Mounting Type	Contact Rating (Current)	Switching Voltage	Load - Max Switching	Contact Material	Release Time	Approval Agency
Phoenix Contact 2956026	120 VAC, 120 VDC	Non Latching	Screw Terminal	6 ms	Socket Included	General Purpose	SPDT (1 Form C)	DIN Rail	6 A	250 VAC, 250 VDC	95 W, 1500 VA	Silver Nickel (AgNi)	11 ms	cULus, EAC, UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

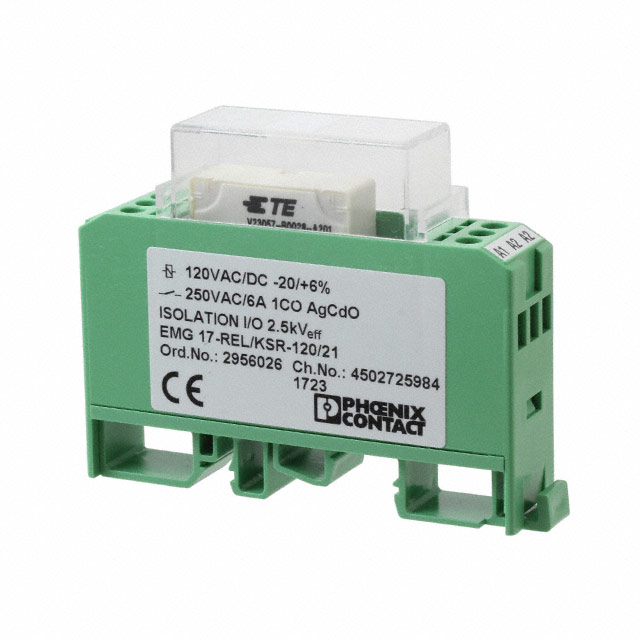

General Purpose Relay SPDT (1 Form C) 120VAC/DC Coil DIN Rail

Technical documentation and resources

No documents available
