6380-3PG-311

Active

Conxall/Switchcraft

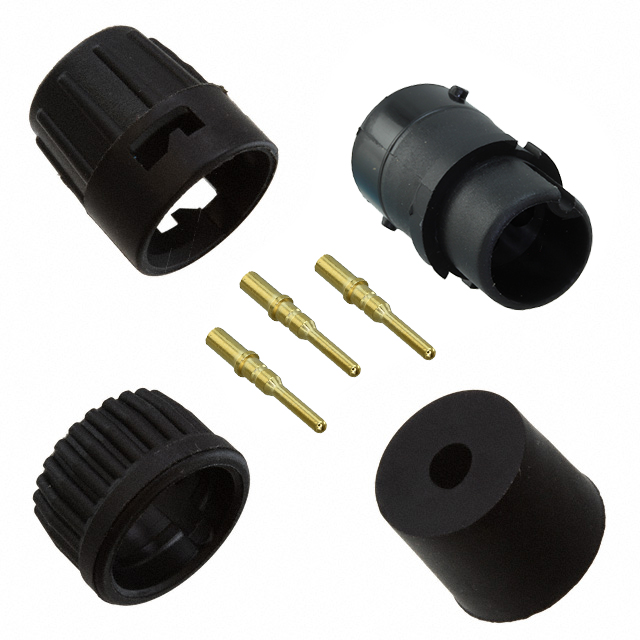

CONN PLUG MALE 3POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6380-3PG-311

Active

Conxall/Switchcraft

CONN PLUG MALE 3POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.04
		10	$ 8.13
		25	$ 7.66
		50	$ 7.46
		100	$ 7.27
		300	$ 6.48
		500	$ 6.09
		1000	$ 5.38

Description

General part information

6380-3PG Series

3 Position Circular Connector Plug, Male Pins Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6380-3PG-311	6380-3PG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	5.33 - 6.35 mm
Cable Opening	-	0.21 - 0.25 in
Cable Opening	-	0.19 - 0.22 in
Cable Opening	-	4.83 - 5.59 mm
Cable Opening	-	5.84 mm
Cable Opening	-	0.13 - 0.17 in
Cable Opening	-	3.3 - 4.32 mm
Cable Opening [diameter]	2.29 mm	2.29 mm
Cable Opening [diameter]	0.14 in, 0.09 in	0.09 - 0.14 in
Cable Opening [diameter]	3.56 mm	3.56 mm
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

6380-3PG Series

CONN PLUG MALE 3POS GOLD CRIMP

Part	Color	Orientation	Shielding	Termination	Contact Material	Current Rating (Amps)	Connector Type	Ingress Protection	Fastening Type	Backshell Material, Plating	Applications	Contact Finish - Mating	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Primary Material	Mounting Type	Voltage Rating	Features	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 6380-3PG-522	Black	Keyed	Unshielded	Crimp	Brass	Varies by Wire Gauge	Male Pins, Plug	Weathertight	Bayonet Lock	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Gold	6.35 mm	0.25 in	0.22 in	5.59 mm	Plastic	Free Hanging (In-Line)	600 V	Backshell	-40 °C	115 °C
Conxall/Switchcraft 6380-3PG-311	Black	Keyed	Unshielded	Crimp	Brass	Varies by Wire Gauge	Male Pins, Plug	Weathertight	Bayonet Lock	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Gold					Plastic	Free Hanging (In-Line)	600 V	Backshell	-40 °C	115 °C	2.29 mm	0.09 in, 0.14 in	3.56 mm
Conxall/Switchcraft 6380-3PG-321	Black	Keyed	Unshielded	Crimp	Brass	Varies by Wire Gauge	Male Pins, Plug	Weathertight	Bayonet Lock	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Gold		0.23 in	0.21 in	5.33 mm	Plastic	Free Hanging (In-Line)	600 V	Backshell	-40 °C	115 °C				5.84 mm
Conxall/Switchcraft 6380-3PG-315	Black	Keyed	Unshielded	Crimp	Brass	Varies by Wire Gauge	Male Pins, Plug	Weathertight	Bayonet Lock	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Gold					Plastic	Free Hanging (In-Line)	600 V	Backshell	-40 °C	115 °C					0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 6380-3PG-513	Black	Keyed	Unshielded	Crimp	Brass	Varies by Wire Gauge	Male Pins, Plug	Weathertight	Bayonet Lock	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Gold					Plastic	Free Hanging (In-Line)	600 V	Backshell	-40 °C	115 °C					0.13 in, 0.15 in	3.3 mm, 3.81 mm
Conxall/Switchcraft 6380-3PG-519	Black	Keyed	Unshielded	Crimp	Brass	Varies by Wire Gauge	Male Pins, Plug	Weathertight	Bayonet Lock	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Gold	5.33 mm	0.21 in	0.19 in	4.83 mm	Plastic	Free Hanging (In-Line)	600 V	Backshell	-40 °C	115 °C
