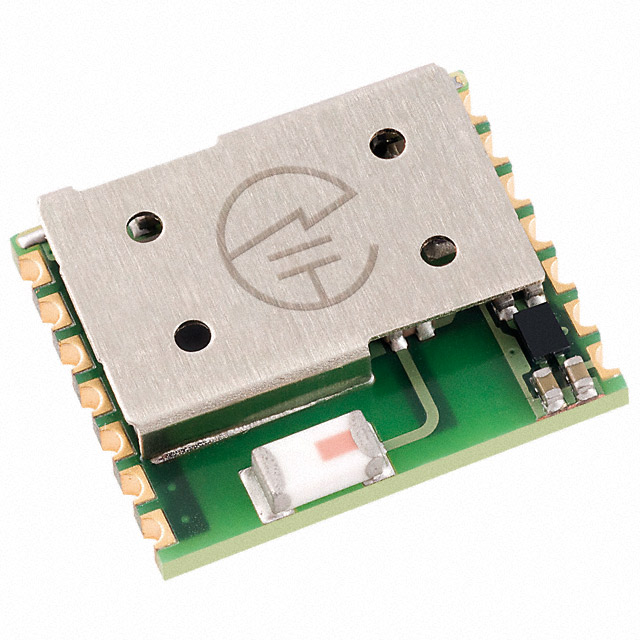

SPBT2632C2A.AT2
ObsoleteSTMicroelectronics
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
SPBT2632C2A.AT2
ObsoleteSTMicroelectronics
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SPBT2632C2A.AT2 |
|---|---|
| Antenna Type | Integrated, Chip |
| Current - Receiving | 2.7 mA |
| Current - Transmitting | 11.2 mA |
| Data Rate | 560 kbps |
| Frequency | 2.4 GHz |
| Memory Size | 256 kB, 48 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 0 dBm |
| Protocol | Bluetooth v3.1 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -86 dBm |
| Serial Interfaces | UART |
| Utilized IC / Part | STLC2690 |
| Voltage - Supply | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SPBT2632 Series
Bluetooth Bluetooth v3.1 Transceiver Module 2.4GHz Integrated, Chip Surface Mount
Documents
Technical documentation and resources
No documents available
