2-1355200-2

Active

TE Connectivity AMP Connectors

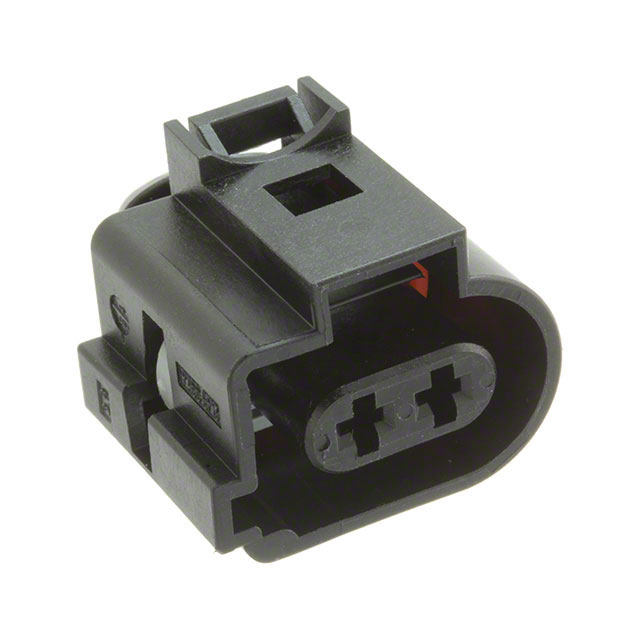

CONN RCPT HSG 2POS 6.00MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 2POS 6.00MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Receptacle Black 0.236" (6.00mm)

Technical documentation and resources

Specification	2-1355200-2	1355200 Series

Color	Black	Black, Blue
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Holder	Latch Holder
Insulation Material	Nylon, Polyamide (PA), Glass Filled	Nylon, Polyamide (PA), Glass Filled, Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	2	2
Number of Rows	1	1
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Pitch [x]	0.236 in	0.236 in
Pitch [x]	6 mm	6 mm

Part	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Number of Positions	Mounting Type	Color	Insulation Material	Number of Rows	Fastening Type	Contact Type	Pitch [x]	Pitch [x]	Contact Termination	Note
TE Connectivity AMP Connectors 2-1355200-2	100 °C	-30 ░C	Receptacle	2	Free Hanging (In-Line)	Black	Glass Filled, Nylon, Polyamide (PA)	1	Latch Holder	Female Socket	0.236 in	6 mm	Crimp	Contacts Not Included
TE Connectivity AMP Connectors 1-1355200-1	100 °C	-30 ░C	Receptacle	2	Free Hanging (In-Line)	Black	Glass Filled, Nylon, Polyamide (PA)	1	Latch Holder	Female Socket	0.236 in	6 mm	Crimp	Contacts Not Included
TE Connectivity AMP Connectors 3-1355200-1	100 °C	-30 ░C	Receptacle	2	Free Hanging (In-Line)	Blue	Polyamide (PA66), Nylon 6/6, Glass Filled	1	Latch Holder	Female Socket	0.236 in	6 mm	Crimp	Contacts Not Included
