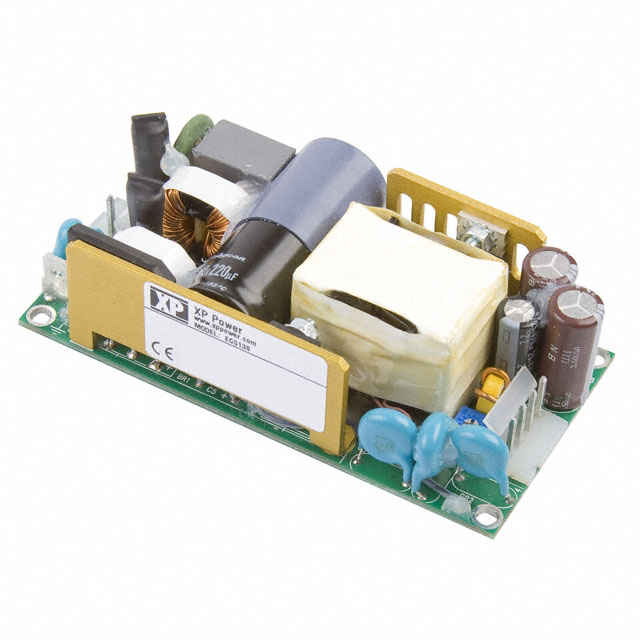

ECS130US48

Active

XP POWER

AC/DC CONVERTER 48V 100W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER 48V 100W

Technical Specifications

Parameters and characteristics for this part

Specification	ECS130US48

Applications	ITE (Commercial), Medical
Approval Agency	CB
Current - Output 1	2.7 A
Efficiency	90 %
Features	Universal Input, Adjustable Output, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	130 W
Power (Watts)	100 W
Size / Dimension [x]	101.6 mm
Size / Dimension [x]	4 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	1.25 "
Size / Dimension [z]	31.8 mm
Standard Number	62368-1
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	80 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	48 V

Part	Power (Watts)	Power (Watts)	Mounting Type	Voltage - Output 1	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Standard Number	Applications	Features	Type	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Current - Output 1
XP POWER ECS130US48	130 W	100 W	Chassis Mount	48 V	4000 V	-20 °C	70 °C	90 %	62368-1	ITE (Commercial) Medical	Adjustable Output DC Input Capable Universal Input	Open Frame	1	2 in	1.25 "	31.8 mm	50.8 mm	101.6 mm	4 in	264 VAC	80 VAC	CB	2.7 A
XP POWER ECS130US15	130 W	100 W	Chassis Mount	15 V	4000 V	-20 °C	70 °C	90 %	62368-1	ITE (Commercial) Medical	Adjustable Output DC Input Capable Universal Input	Open Frame	1	2 in	1.25 "	31.8 mm	50.8 mm	101.6 mm	4 in	264 VAC	80 VAC	CB	8.7 A
XP POWER ECS130US18	130 W	100 W	Chassis Mount	18 V	4000 V	-20 °C	70 °C	90 %	62368-1	ITE (Commercial) Medical	Adjustable Output DC Input Capable Universal Input	Open Frame	1	2 in	1.25 "	31.8 mm	50.8 mm	101.6 mm	4 in	264 VAC	80 VAC	CB	7.3 A
