Specification	STR2W153D

Duty Cycle	74 %
Fault Protection	Over Temperature, Over Voltage, Current Limiting, Over Load
Frequency - Switching (Max)	74 kHz
Frequency - Switching (Min)	60 kHz
Internal Switch(s)	Yes
Mounting Type	Through Hole
Operating Temperature (Max)	115 °C
Operating Temperature (Min)	-20 °C
Output Isolation	Isolated

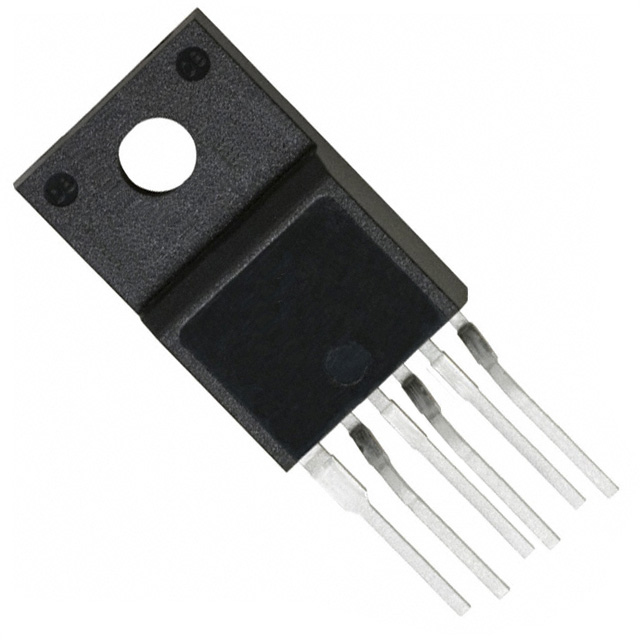

Package / Case	Formed Leads, TO-220-6 Full Pack
Package Name	TO-220F-6L
Power (Watts)	90 W
Topology	Flyback
Voltage - Breakdown	650 V
Voltage - Start Up	15.3 V
Voltage - Supply (Vcc/Vdd) Maximum	32 V
Voltage - Supply (Vcc/Vdd) Minimum	8.1 V

STR2W153 Series

Part	Package Name	Voltage - Start Up	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Breakdown	Topology	Power (Watts)	Internal Switch(s)	Fault Protection	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Package / Case	Frequency - Switching (Max)	Frequency - Switching (Min)	Duty Cycle	Output Isolation
Sanken Electric USA Inc. STR2W153D	TO-220F-6L	15.3 V	Through Hole	115 °C	-20 °C	650 V	Flyback	90 W	Yes	Current Limiting Over Load Over Temperature Over Voltage	32 V	8.1 V	Formed Leads TO-220-6 Full Pack	74 kHz	60 kHz	74 %	Isolated
