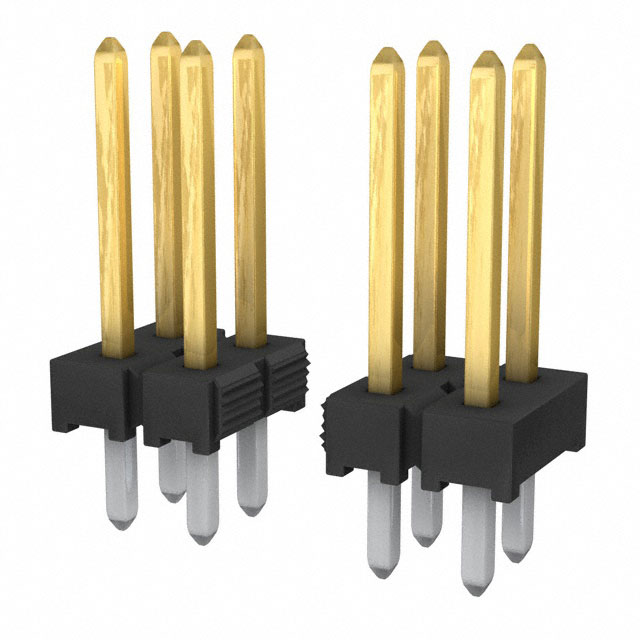

MTMM-116-06-S-D-220

Active

Samtec Inc.

CONN HEADER VERT 32POS 2MM

MTMM-116-06-S-D-220

Active

Samtec Inc.

CONN HEADER VERT 32POS 2MM

Description Specifications Series Pricing CAD Documents

Description

General part information

MTMM-116 Series

Connector Header Through Hole 32 position 0.079" (2.00mm)

Technical Specifications

Parameters and characteristics for this part

Specification	MTMM-116-06-S-D-220

Connector Type	Header, Cuttable
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 µin
Contact Length - Mating	0.22 in
Contact Length - Post	0.118 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.059 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	32
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Overall Contact Length	0.397 in
Pitch - Mating	0.079 in
Row Spacing - Mating	0.079 in
Shrouding	Unshrouded
Style	Board, Board or Cable
Termination	Solder

MTMM-116 Series

...

Part	Connector Type	Contact Material	Pitch - Mating	Number of Positions Loaded	Fastening Type	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Insulation Color	Material Flammability Rating	Contact Finish - Post	Insulation Material	Overall Contact Length	Contact Type	Contact Finish - Mating	Style	Shrouding	Mounting Type	Contact Shape	Contact Length - Post	Number of Rows	Contact Length - Mating	Insulation Height	Termination	Row Spacing - Mating	Contact Finish Thickness - Mating	Number of Positions	Number of Positions Loaded	Contact Finish Thickness - Post
Samtec Inc. MTMM-116-05-G-D-185	Cuttable Header	Phosphor Bronze	0.079 in	All	Push-Pull	3 A	125 °C	-55 °C	Black	UL94 V-0	Gold	Liquid Crystal Polymer (LCP)	0.377 in	Male Pin	Gold	Board Board or Cable	Unshrouded	Through Hole	Square	0.133 in	2	0.185 in	0.059 in	Solder	0.079 in	20 Ąin	32
Samtec Inc. MTMM-116-10-T-S-405	Cuttable Header	Phosphor Bronze	0.079 in	All	Push-Pull	3 A	105 °C	-55 °C	Black	UL94 V-0	Tin	Liquid Crystal Polymer (LCP)	0.555 in	Male Pin	Tin	Board Board or Cable	Unshrouded	Through Hole	Square	0.091 in	1	0.405 in	0.059 in	Solder			16
Samtec Inc. MTMM-116-14-T-S-450	Cuttable Header	Phosphor Bronze	0.079 in	All	Push-Pull	3 A	105 °C	-55 °C	Black	UL94 V-0	Tin	Liquid Crystal Polymer (LCP)	0.751 in	Male Pin	Tin	Board Board or Cable	Unshrouded	Through Hole	Square	0.242 in	1	0.45 in	0.059 in	Solder			16
Samtec Inc. MTMM-116-06-G-D-194-002	Cuttable Header	Phosphor Bronze	0.079 in		Push-Pull	3 A	125 °C	-55 °C	Black	UL94 V-0	Gold	Liquid Crystal Polymer (LCP)	0.397 in	Male Pin	Gold	Board Board or Cable	Unshrouded	Through Hole	Square	0.144 in	2	0.194 in	0.059 in	Solder	0.079 in	20 Ąin	32	31
Samtec Inc. MTMM-116-12-T-S-300	Cuttable Header	Phosphor Bronze	0.079 in	All	Push-Pull	3 A	105 °C	-55 °C	Black	UL94 V-0	Tin	Liquid Crystal Polymer (LCP)	0.614 in	Male Pin	Tin	Board Board or Cable	Unshrouded	Through Hole	Square	0.255 in	1	0.3 in	0.059 in	Solder			16
Samtec Inc. MTMM-116-06-S-D-220	Cuttable Header	Phosphor Bronze	0.079 in	All	Push-Pull	3 A	125 °C	-55 °C	Black	UL94 V-0	Tin	Liquid Crystal Polymer (LCP)	0.397 in	Male Pin	Gold	Board Board or Cable	Unshrouded	Through Hole	Square	0.118 in	2	0.22 in	0.059 in	Solder	0.079 in	30 µin	32
Samtec Inc. MTMM-116-11-G-S-320	Cuttable Header	Phosphor Bronze	0.079 in	All	Push-Pull	3 A	125 °C	-55 °C	Black	UL94 V-0	Gold	Liquid Crystal Polymer (LCP)	0.594 in	Male Pin	Gold	Board Board or Cable	Unshrouded	Through Hole	Square	0.215 in	1	0.32 in	0.059 in	Solder		20 Ąin	16		3 µin
Samtec Inc. MTMM-116-03-G-D-150	Cuttable Header	Phosphor Bronze	0.079 in	All	Push-Pull	3 A	125 °C	-55 °C	Black	UL94 V-0	Gold	Liquid Crystal Polymer (LCP)	0.302 in	Male Pin	Gold	Board Board or Cable	Unshrouded	Through Hole	Square	0.093 in	2	0.15 in	0.059 in	Solder	0.079 in	20 Ąin	32		3 µin
Samtec Inc. MTMM-116-07-L-D-228	Cuttable Header	Phosphor Bronze	0.079 in	All	Push-Pull	3 A	125 °C	-55 °C	Black	UL94 V-0	Tin	Liquid Crystal Polymer (LCP)	0.456 in	Male Pin	Gold	Board Board or Cable	Unshrouded	Through Hole	Square	0.169 in	2	0.228 in	0.059 in	Solder	0.079 in	10 µin	32
Samtec Inc. MTMM-116-15-L-D-700	Cuttable Header	Phosphor Bronze	0.079 in	All	Push-Pull	3 A	125 °C	-55 °C	Black	UL94 V-0	Tin	Liquid Crystal Polymer (LCP)	0.83 in	Male Pin	Gold	Board Board or Cable	Unshrouded	Through Hole	Square	0.071 in	2	0.7 in	0.059 in	Solder	0.079 in	10 µin	32

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

MTMM-116-06-S-D-220 | Datasheet
