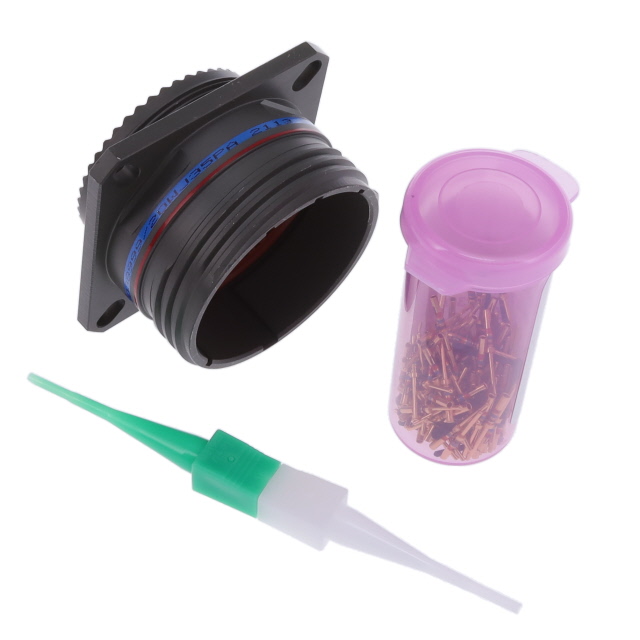

D38999/20WJ35PA

Active

Amphenol Aerospace Operations

CONN RCPT MALE 128POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/20WJ35PA

Active

Amphenol Aerospace Operations

CONN RCPT MALE 128POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/20WJ35PA

Applications	Aviation, Aerospace, Marine, Military
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Number of Positions	128
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	A
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size, MIL	J
Shielding	Shielded
Termination	Crimp

D38999/20WJ Series

...

Part	Qualification	Contact Size	Shell Material	Contact Shape	Ingress Protection	Grade	Orientation	Note	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Type	Connector Type	Housing Color	Contact Type	Shell Size, MIL	Shell Finish	Shielding	Shell Size - Insert	Mounting Feature	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Contact Finish - Mating	Contact Material	Color	Applications	Termination	Contact Size
Amphenol Aerospace Operations D38999/20WJ11BB	MIL-DTL-38999 Series III	10 20	Aluminum	Circular	Environment Resistant	Military	B	Contacts Not Included	11	-65 ░C	347 °F	For Female Sockets	Receptacle Housing	Olive Drab	Crimp	J	Cadmium	Shielded	25-11	Flange
Amphenol Aerospace Operations D38999/20WJ19SA-LC	MIL-DTL-38999 Series III	12	Aluminum	Circular	Environment Resistant	Military	A	Contacts Not Included	19	-65 ░C	347 °F	For Female Sockets	Receptacle Housing	Olive Drab	Crimp	J	Cadmium	Shielded		Flange	25	19
Amphenol Aerospace Operations D38999/20WJ43HN	MIL-DTL-38999 Series III		Aluminum		Environment Resistant	Military	N		43	-65 ░C	347 °F		Male Pins Receptacle			J	Olive Drab Cadmium	Shielded		Flange	25	43	2.54 çm	100 çin	Metal	Gold	Copper Alloy	Olive Drab	Aviation Marine Military	Crimp
Amphenol Aerospace Operations D38999/20WJ19HN-LC	MIL-DTL-38999 Series III	12	Aluminum	Circular	Environment Resistant	Military	N	Contacts Not Included	19	-65 ░C	347 °F	For Male Pins	Receptacle Housing	Olive Drab	Crimp	J	Cadmium	Shielded		Flange	25	19
Amphenol Aerospace Operations D38999/20WJ37HB	MIL-DTL-38999 Series III		Aluminum		Environment Resistant	Military	B		37	-65 ░C	347 °F		Male Pins Receptacle			J	Olive Drab Cadmium	Shielded		Flange	25	37	2.54 çm	100 çin	Metal	Gold	Copper Alloy	Olive Drab	Aviation Marine Military	Crimp
Amphenol Aerospace Operations D38999/20WJ37PA-LC	MIL-DTL-38999 Series III	16	Aluminum	Circular	Environment Resistant	Military	A	Contacts Not Included	37	-65 ░C	347 °F	For Male Pins	Receptacle Housing	Olive Drab	Crimp	J	Cadmium	Shielded		Flange	25	37
Amphenol Aerospace Operations D38999/20WJ35PA	MIL-DTL-38999 Series III		Aluminum		Environment Resistant	Military	A		128	-65 ░C	347 °F		Male Pins Receptacle			J	Olive Drab Cadmium	Shielded		Flange			1.27 µm	50 µin	Metal	Gold	Copper Alloy	Olive Drab	Aerospace Aviation Marine Military	Crimp
Amphenol Aerospace Operations D38999/20WJ4JA-LC	MIL-DTL-38999 Series III		Aluminum	Circular	Environment Resistant	Military	A	Contacts Not Included	56	-65 ░C	347 °F	For Female Sockets	Receptacle Housing	Olive Drab	Crimp	J	Cadmium	Shielded		Flange	25	4									16 (8) 20 (48)
Amphenol Aerospace Operations D38999/20WJ24PA-LC	MIL-DTL-38999 Series III	12 16	Aluminum	Circular	Environment Resistant	Military	A	Contacts Not Included	24	-65 ░C	347 °F	For Male Pins	Receptacle Housing	Olive Drab	Crimp	J	Cadmium	Shielded		Flange	25	24
Amphenol Aerospace Operations D38999/20WJ4BA	MIL-DTL-38999 Series III		Aluminum	Circular	Environment Resistant	Military	A	Contacts Not Included	56	-65 ░C	347 °F	For Female Sockets	Receptacle Housing	Olive Drab	Crimp	J	Cadmium	Shielded		Flange	25	4									16 (8) 20 (48)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 82.80
		10	$ 80.12
		25	$ 77.62
		50	$ 76.43
		100	$ 71.99
		250	$ 70.97
		500	$ 68.05
		1000	$ 66.23
	Bulk	1	$ 321.57
		10	$ 315.34

Description

General part information

D38999/20WJ Series

128 Position Circular Connector Receptacle, Male Pins Crimp
