Q-0I0600001001M

Active

Amphenol Custom Cable

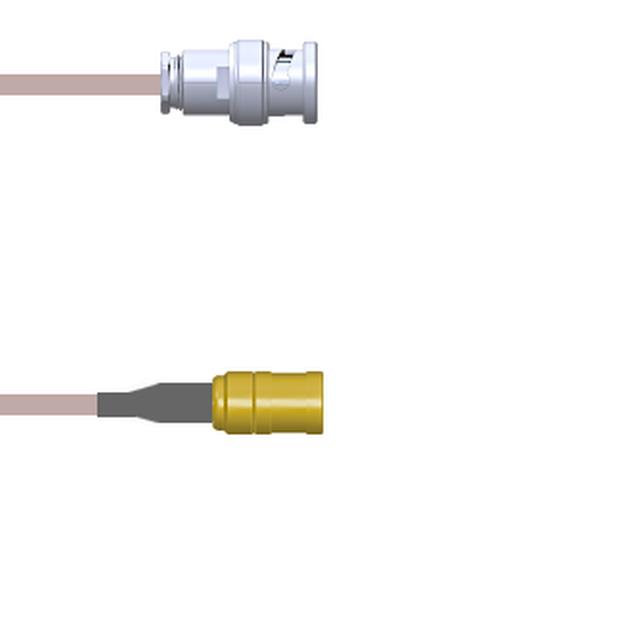

CBL ASSY BNC-SMB PLUG-PLUG 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0I0600001001M

Active

Amphenol Custom Cable

CBL ASSY BNC-SMB PLUG-PLUG 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0I0600001001M

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMB Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	BNC to SMB

Q-0I0600 Series

Part	1st Connector Mounting Type	Overall Impedance	Frequency - Max [Max]	2nd Contact Gender	1st Connector	2nd Connector	Features	1st Contact Gender	Color	2nd Connector Mounting Type	Style	Cable Type	Length	Length	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0I0600001108i	Free Hanging (In-Line)	50 Ohms	4 GHz	Male	BNC Plug	SMB Plug	Shielded	Male	Copper	Free Hanging (In-Line)	BNC to SMB	RG-178	2.7 m	9 ft	108 in
Amphenol Custom Cable Q-0I0600001024i	Free Hanging (In-Line)	50 Ohms	4 GHz	Male	BNC Plug	SMB Plug	Shielded	Male	Copper	Free Hanging (In-Line)	BNC to SMB	RG-178	609.6 mm		24 "
Amphenol Custom Cable Q-0I0600001018i	Free Hanging (In-Line)	50 Ohms	4 GHz	Male	BNC Plug	SMB Plug	Shielded	Male	Copper	Free Hanging (In-Line)	BNC to SMB	RG-178				457.2 mm	457.2 mm
Amphenol Custom Cable Q-0I0600001001M	Free Hanging (In-Line)	50 Ohms	4 GHz	Male	BNC Plug	SMB Plug	Shielded	Male	Copper	Free Hanging (In-Line)	BNC to SMB	RG-178	1 m	3.3 ft	39.4 in
Amphenol Custom Cable Q-0I0600001060i	Free Hanging (In-Line)	50 Ohms	4 GHz	Male	BNC Plug	SMB Plug	Shielded	Male	Copper	Free Hanging (In-Line)	BNC to SMB	RG-178	1.5 m	5 ft	5 '
Amphenol Custom Cable Q-0I0600001002M	Free Hanging (In-Line)	50 Ohms	4 GHz	Male	BNC Plug	SMB Plug	Shielded	Male	Copper	Free Hanging (In-Line)	BNC to SMB	RG-178	2 m	6.6 ft	78.7 in
Amphenol Custom Cable Q-0I0600001006i	Free Hanging (In-Line)	50 Ohms	4 GHz	Male	BNC Plug	SMB Plug	Shielded	Male	Copper	Free Hanging (In-Line)	BNC to SMB	RG-178	152.4 mm		6 in
Amphenol Custom Cable Q-0I0600001009i	Free Hanging (In-Line)	50 Ohms	4 GHz	Male	BNC Plug	SMB Plug	Shielded	Male	Copper	Free Hanging (In-Line)	BNC to SMB	RG-178	228.6 mm		9 "
Amphenol Custom Cable Q-0I0600001003M	Free Hanging (In-Line)	50 Ohms	4 GHz	Male	BNC Plug	SMB Plug	Shielded	Male	Copper	Free Hanging (In-Line)	BNC to SMB	RG-178	3 m	9.8 '	118.1 in
Amphenol Custom Cable Q-0I0600001012i	Free Hanging (In-Line)	50 Ohms	4 GHz	Male	BNC Plug	SMB Plug	Shielded	Male	Copper	Free Hanging (In-Line)	BNC to SMB	RG-178	304.8 mm		12 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 97.42
		25	$ 95.52
		50	$ 93.63
		100	$ 91.73
		250	$ 89.84

Description

General part information

Q-0I0600 Series

Cable Assembly Coaxial BNC to SMB RG-178 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
