Connectors, Interconnects

337-068-541-807

Active

EDAC Inc.

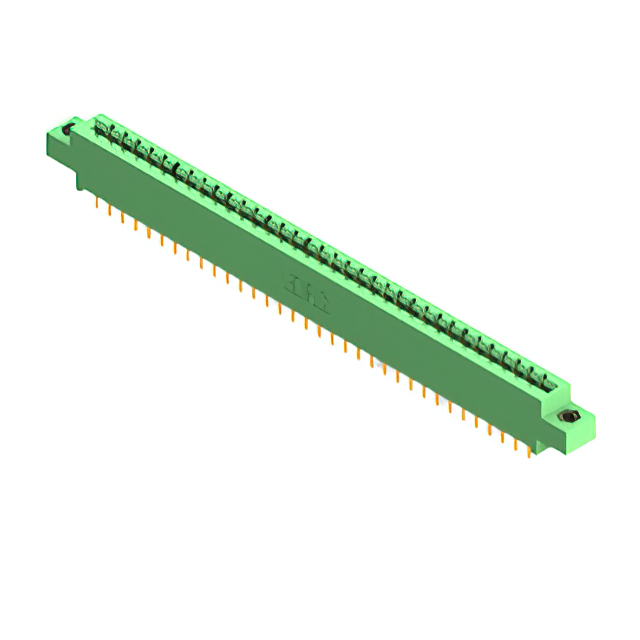

CONN EDGE DUAL FMALE 68POS 0.156

Connectors, Interconnects

337-068-541-807

Active

EDAC Inc.

CONN EDGE DUAL FMALE 68POS 0.156

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	337-068-541-807

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Threaded Insert, M3
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	34, 68
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2 rows

337-068 Series

...

Part	Termination	Mounting Type	Color	Pitch	Card Thickness (Min)	Card Thickness (Max)	Contact Finish	Number of Positions	Contact Type	Contact Material	Card Type	Read Out	Flange Feature Diameter	Flange Feature	Number of Rows	Gender	Contact Finish Thickness	Operating Temperature (Min)	Operating Temperature (Max)	Features	Termination Rows	Material - Insulation
EDAC Inc. 337-068-556-812	Solder	Board Edge Straddle Mount	Green	0.156 in	0.054 in	0.07 in	Gold	34 68	Cantilever	Copper Alloy	Dual Edge Non Specified	Dual	0.128 in	Side Mount Opening Unthreaded	2	Female	10 Ąin	-40 °C	105 °C	Card Extender	2 rows	Polyester Thermoplastic
EDAC Inc. 337-068-520-807	Solder	Through Hole	Green	0.156 in	0.054 in	0.07 in	Gold	34 68	Cantilever	Copper Alloy	Dual Edge Non Specified	Dual		M3 Threaded Insert Top Mount Opening	2	Female	10 Ąin	-40 °C	105 °C		2 rows	Polyester Thermoplastic
EDAC Inc. 337-068-540-203	Wire Wrap	Through Hole	Green	0.156 in	0.054 in	0.07 in	Gold	34 68	Cantilever	Copper Alloy	Dual Edge Non Specified	Dual	0.116 in	Floating Bobbin Flush Mount	2	Female	10 Ąin	-40 °C	105 °C		2 rows	Polyester Thermoplastic
EDAC Inc. 337-068-560-868	Solder	Board Edge Straddle Mount	Green	0.156 in	0.054 in	0.07 in	Gold	34 68	Cantilever	Copper Alloy	Dual Edge Non Specified	Dual		4-40 Threaded Insert Top Mount Opening	2	Female	10 Ąin	-40 °C	105 °C	Card Extender Card Guides	2 rows	Polyester Thermoplastic
EDAC Inc. 337-068-540-208	Wire Wrap	Through Hole	Green	0.156 in	0.054 in	0.07 in	Gold	34 68	Cantilever	Copper Alloy	Dual Edge Non Specified	Dual		4-40 Flush Mount Threaded Insert Top Opening	2	Female	10 Ąin	-40 °C	105 °C		2 rows	Polyester Thermoplastic
EDAC Inc. 337-068-541-807	Wire Wrap	Through Hole	Green	0.156 in	0.054 in	0.07 in	Gold	34 68	Cantilever	Copper Alloy	Dual Edge Non Specified	Dual		M3 Threaded Insert Top Mount Opening	2	Female	10 Ąin	-40 °C	105 °C		2 rows	Polyester Thermoplastic
EDAC Inc. 337-068-500-858	Solder Eyelet(s)	Through Hole	Green	0.156 in	0.054 in	0.07 in	Gold	34 68	Cantilever	Copper Alloy	Dual Edge Non Specified	Dual		4-40 Threaded Insert Top Mount Opening	2	Female	10 Ąin	-40 °C	105 °C	Card Guides	2 rows	Polyester Thermoplastic
EDAC Inc. 337-068-559-204	Wire Wrap	Right Angle Through Hole	Green	0.156 in	0.054 in	0.07 in	Gold	34 68	Cantilever	Copper Alloy	Dual Edge Non Specified	Dual	0.156 in	Flush Mount Top Opening Unthreaded	2	Female	10 Ąin	-40 °C	105 °C		2 rows	Polyester Thermoplastic
EDAC Inc. 337-068-558-802	Wire Wrap	Right Angle Through Hole	Green	0.156 in	0.054 in	0.07 in	Gold	34 68	Cantilever	Copper Alloy	Dual Edge Non Specified	Dual	0.128 in	Top Mount Opening Unthreaded	2	Female	10 Ąin	-40 °C	105 °C		2 rows	Polyester Thermoplastic
EDAC Inc. 337-068-556-258	Solder	Board Edge Straddle Mount	Green	0.156 in	0.054 in	0.07 in	Gold	34 68	Cantilever	Copper Alloy	Dual Edge Non Specified	Dual		4-40 Flush Mount Threaded Insert Top Opening	2	Female	10 Ąin	-40 °C	105 °C	Card Extender Card Guides	2 rows	Polyester Thermoplastic
