03-619.011
ActiveEAO

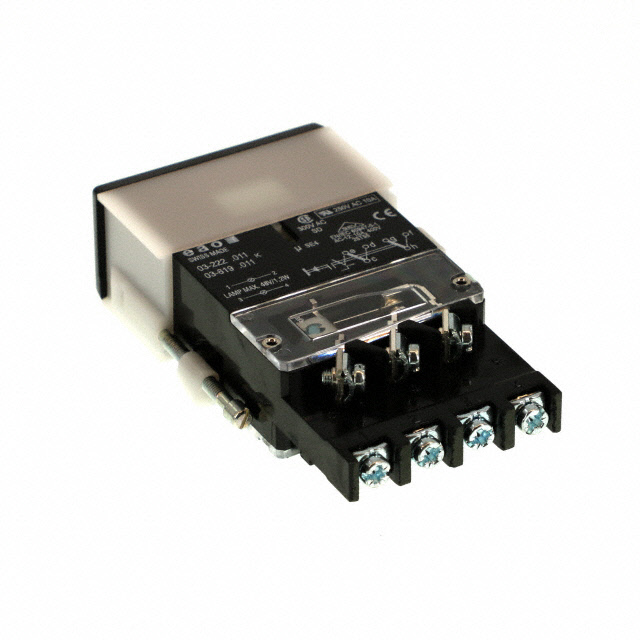

PUSHBUTTON SWITCH, 03 SERIES, DPDT, MAINTAINED, RECTANGULAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
03-619.011
ActiveEAO
PUSHBUTTON SWITCH, 03 SERIES, DPDT, MAINTAINED, RECTANGULAR
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 03-619.011 | 03-619 Series |
|---|---|---|
| Actuator Marking | - | No Marking |
| Actuator Type | - | Rectangular, Button (Not Included) |
| Circuit | - | DPDT |
| Current Rating (Amps) | - | 10 A |
| Ingress Protection | - | IP40 |
| Mechanical Life | - | 1000000 Cycles |
| Mounting Type | - | Panel Mount, Front |
| null | - | |
| Operating Temperature | - | 55 °C |
| Operating Temperature | - | -25 °C |
| Panel Cutout Dimensions | - | 41.2 mm |
| Panel Cutout Dimensions | - | 21.2 mm |
| Switch Function | - | On-On |
| Termination Style | - | Screw Terminal |
| Type | - | Standard |
| Voltage Rating - AC | - | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
03-619 Series
PUSHBUTTON SWITCH, 03 SERIES, DPDT, MAINTAINED, RECTANGULAR
| Part | Type | Termination Style | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Circuit | Actuator Type | Actuator Marking | Switch Function | Voltage Rating - AC | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Mechanical Life | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 03-619.011 | Standard | Screw Terminal | Panel Mount, Front | 55 °C | -25 °C | 10 A | DPDT | Rectangular, Button (Not Included) | No Marking | On-On | 400 V | 41.2 mm | 21.2 mm | 1000000 Cycles | IP40 |
EAO 03-619.011 |
Description
General part information
03-619 Series
Pushbutton Switch DPDT Standard Panel Mount, Front
