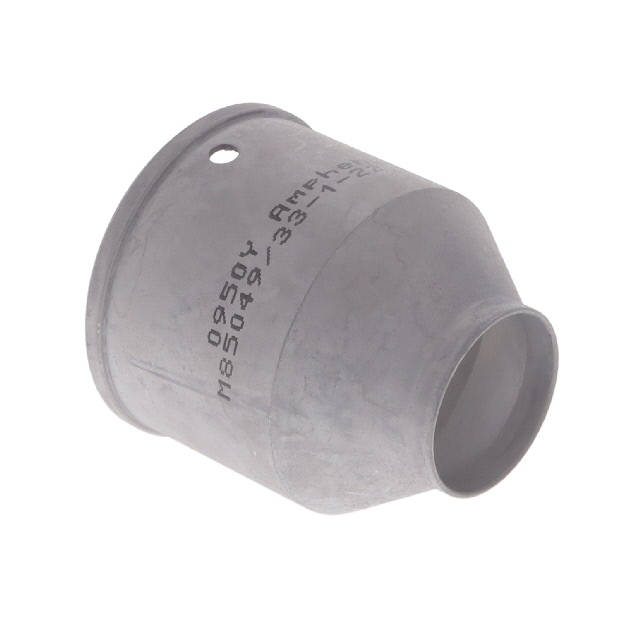

M85049/33-1-22

Active

Amphenol Interconnect India

CONN BACKSHELL SZ22

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M85049/33-1-22

Active

Amphenol Interconnect India

CONN BACKSHELL SZ22

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 54.07
		10	$ 41.89

Description

General part information

M85049/33 Series

Connector Backshell 22

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M85049/33-1-22	M85049/33 Series

Cable Exit	180 °	180 °
Cable Opening	-	14.22 - 20.32 mm
Cable Opening	-	0.56 - 0.8 in
Cable Opening	-	0.27 - 1.13 in
Cable Opening	-	6.86 - 28.7 mm
Color	-	Black
Diameter - Outside	-	0.75 - 1.75 in
Diameter - Outside	-	19.05 - 44.45 mm
For Use With/Related Products	MIL-DTL-38999 Series I, II	MIL-DTL-38999 Series I, II
Material	Aluminum	Aluminum Alloy, Aluminum
Plating	-	Zinc Cobalt
Shell Size - Insert	22	8 - 25
Shielding	Unshielded	Unshielded
Type	Backshell	Backshell

M85049/33 Series

CONN BACKSHELL SZ18 19 BLACK

Part	Type	Shielding	Cable Exit	Cable Opening [diameter]	Cable Opening [diameter]	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]	For Use With/Related Products	Plating	Color	Shell Size - Insert	Cable Opening [custom]	Cable Opening [custom]
Amphenol Interconnect India M85049/33-2-18Z	Backshell	Unshielded	180 °	20.32 mm	0.8 in	Aluminum Alloy	1.4 in	35.56 mm	MIL-DTL-38999 Series I, II	Zinc Cobalt	Black
Amphenol Interconnect India M85049/33-2-14Z	Backshell	Unshielded	180 °	14.22 mm	0.56 in	Aluminum Alloy	1.1 "	27.94 mm	MIL-DTL-38999 Series I, II	Zinc Cobalt	Black	14, 15
Amphenol Interconnect India M85049/33-2-22Z	Backshell	Unshielded	180 °			Aluminum Alloy	1.65 "	41.91 mm	MIL-DTL-38999 Series I, II	Zinc Cobalt	Black	22, 23	1.05 in	26.67 mm
Amphenol Interconnect India M85049/33-2-16Z	Backshell	Unshielded	180 °			Aluminum Alloy	1.25 in	31.75 mm	MIL-DTL-38999 Series I, II	Zinc Cobalt	Black	16, 17	0.69 in	17.53 mm
Amphenol Interconnect India M85049/33-2-12Z	Backshell	Unshielded	180 °			Aluminum Alloy	1 in	25.4 mm	MIL-DTL-38999 Series I, II	Zinc Cobalt	Black	12, 13	0.44 in	11.18 mm
Amphenol Interconnect India M85049/33-2-08Z	Backshell	Unshielded	180 °			Aluminum Alloy	0.75 in	19.05 mm	MIL-DTL-38999 Series I, II	Zinc Cobalt	Black	8, 9	0.27 in	6.86 mm
Amphenol Interconnect India M85049/33-2-20Z	Backshell	Unshielded	180 °			Aluminum Alloy	1.5 in	38.1 mm	MIL-DTL-38999 Series I, II	Zinc Cobalt	Black	20, 21	0.93 in	23.62 mm
Amphenol Interconnect India M85049/33-2-10Z	Backshell	Unshielded	180 °			Aluminum Alloy	0.85 in	21.59 mm	MIL-DTL-38999 Series I, II	Zinc Cobalt	Black	10, 11
Amphenol Interconnect India M85049/33-2-24Z	Backshell	Unshielded	180 °			Aluminum Alloy	1.75 in	44.45 mm	MIL-DTL-38999 Series I, II	Zinc Cobalt	Black	24, 25	1.13 in	28.7 mm
Amphenol Interconnect India M85049/33-1-22	Backshell	Unshielded	180 °			Aluminum			MIL-DTL-38999 Series I, II			22
