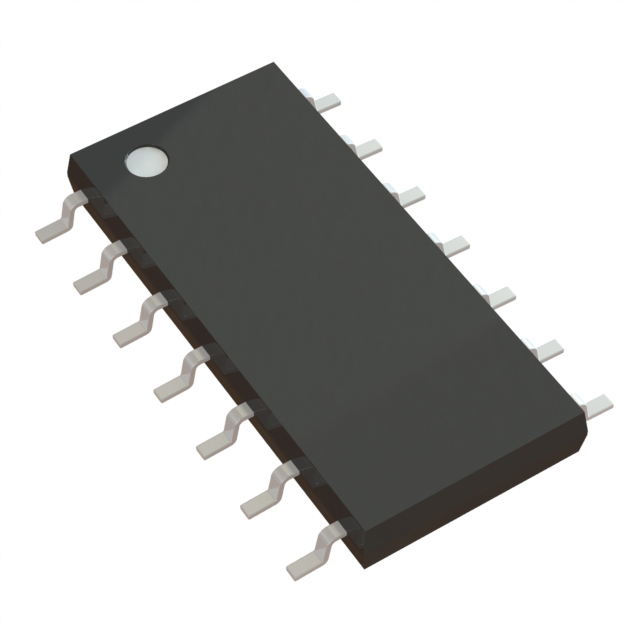

TSV994AIDT
ActiveSTMicroelectronics
OP-AMP, 20MHZ, -40 TO 125DEG C, SOIC-14 ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
TSV994AIDT
ActiveSTMicroelectronics
OP-AMP, 20MHZ, -40 TO 125DEG C, SOIC-14 ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TSV994AIDT | TSV994 Series |
|---|---|---|
| - | - | |
| Amplifier Type | General Purpose | General Purpose |
| Current - Input Bias | 1 pA | 1 pA |
| Current - Output / Channel | 35 mA | 35 mA |
| Current - Supply | 820 µA | 820 µA |
| Gain Bandwidth Product | 20 MHz | 20 MHz |
| Grade | Automotive | Automotive |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 4 | 4 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | Rail-to-Rail | Rail-to-Rail |
| Package / Case | 14-SOIC | 14-SOIC, 14-TSSOP |
| Package / Case | - | 0.173 " |
| Package / Case | - | 4.4 mm |
| Package / Case [x] | 0.154 in | 0.154 in |
| Package / Case [y] | 3.9 mm | 3.9 mm |
| Qualification | AEC-Q100 | AEC-Q100 |
| Slew Rate | 10 V/çs | 10 V/çs |
| Supplier Device Package | 14-SO | 14-SO, 14-TSSOP |
| Voltage - Input Offset | 100 çV | 100 çV |
| Voltage - Supply Span (Max) [Max] | 5.5 V | 5.5 V |
| Voltage - Supply Span (Min) [Min] | 2.5 V | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.91 | |
| 10 | $ 1.71 | |||
| 25 | $ 1.61 | |||
| 100 | $ 1.38 | |||
| 250 | $ 1.29 | |||
| 500 | $ 1.13 | |||
| 1000 | $ 0.94 | |||
| Digi-Reel® | 1 | $ 1.91 | ||
| 10 | $ 1.71 | |||
| 25 | $ 1.61 | |||
| 100 | $ 1.38 | |||
| 250 | $ 1.29 | |||
| 500 | $ 1.13 | |||
| 1000 | $ 0.94 | |||
| Tape & Reel (TR) | 2500 | $ 0.87 | ||
| 5000 | $ 0.84 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 1.69 | |
| 10 | $ 1.13 | |||
| 25 | $ 1.09 | |||
| 50 | $ 1.05 | |||
| 100 | $ 1.01 | |||
| 250 | $ 0.94 | |||
| 500 | $ 0.91 | |||
| 1000 | $ 0.86 | |||
TSV994 Series
OPERATIONAL AMPLIFIER, 4 CHANNELS, 20 MHZ, 10 V/US, 2.5 V TO 5.5 V, 14 PINS, TSSOP
| Part | Output Type | Package / Case [x] | Package / Case [y] | Package / Case | Voltage - Supply Span (Max) [Max] | Number of Circuits | Qualification | Grade | Mounting Type | Current - Input Bias | Current - Output / Channel | Voltage - Supply Span (Min) [Min] | Slew Rate | Current - Supply | Amplifier Type | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Gain Bandwidth Product | Voltage - Input Offset | Package / Case [custom] | Package / Case [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics TSV994IPT | ||||||||||||||||||||||
STMicroelectronics TSV994AIDT | Rail-to-Rail | 0.154 in | 3.9 mm | 14-SOIC | 5.5 V | 4 | AEC-Q100 | Automotive | Surface Mount | 1 pA | 35 mA | 2.5 V | 10 V/çs | 820 µA | General Purpose | 14-SO | 125 °C | -40 °C | 20 MHz | 100 çV | ||
STMicroelectronics TSV994AIPT | Rail-to-Rail | 14-TSSOP | 5.5 V | 4 | AEC-Q100 | Automotive | Surface Mount | 1 pA | 35 mA | 2.5 V | 10 V/çs | 820 µA | General Purpose | 14-TSSOP | 125 °C | -40 °C | 20 MHz | 100 çV | 0.173 " | 4.4 mm | ||
STMicroelectronics TSV994IYPT | Rail-to-Rail | 14-TSSOP | 5.5 V | 4 | AEC-Q100 | Automotive | Surface Mount | 1 pA | 35 mA | 2.5 V | 10 V/çs | 820 µA | General Purpose | 14-TSSOP | 125 °C | -40 °C | 20 MHz | 100 çV | 0.173 " | 4.4 mm | ||
STMicroelectronics TSV994AIDT | ||||||||||||||||||||||
STMicroelectronics TSV994IPT | Rail-to-Rail | 14-TSSOP | 5.5 V | 4 | AEC-Q100 | Automotive | Surface Mount | 1 pA | 35 mA | 2.5 V | 10 V/çs | 820 µA | General Purpose | 14-TSSOP | 125 °C | -40 °C | 20 MHz | 100 çV | 0.173 " | 4.4 mm | ||
STMicroelectronics TSV994AID | Rail-to-Rail | 0.154 in | 3.9 mm | 14-SOIC | 5.5 V | 4 | AEC-Q100 | Automotive | Surface Mount | 1 pA | 35 mA | 2.5 V | 10 V/çs | 820 µA | General Purpose | 14-SO | 125 °C | -40 °C | 20 MHz | 100 çV |
Description
General part information
TSV994 Series
General Purpose Amplifier 4 Circuit Rail-to-Rail 14-SO
