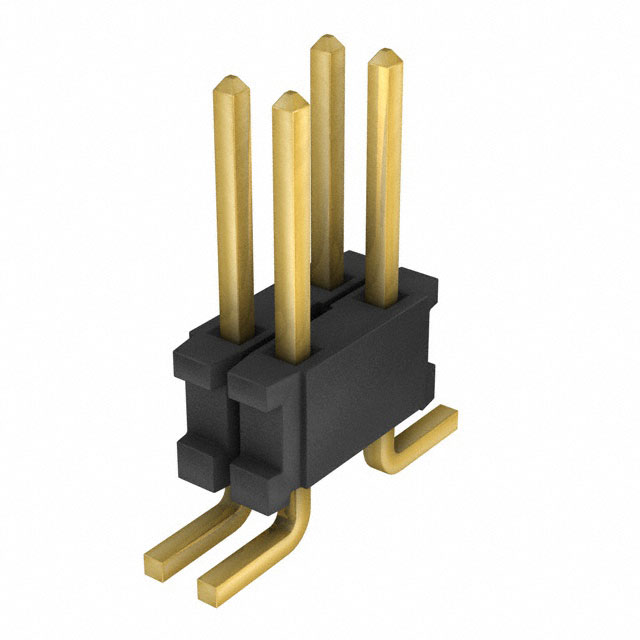

FTR-102-51-G-D

Active

Samtec Inc.

CONN UNSHROUDED HEADER HDR 4 POS 1.27MM SOLDER ST TOP ENTRY SMD BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFTR Series Other Related Documents 03 Datasheet +2

FTR-102-51-G-D

Active

Samtec Inc.

CONN UNSHROUDED HEADER HDR 4 POS 1.27MM SOLDER ST TOP ENTRY SMD BULK

Deep-Dive with AI

DocumentsFTR Series Other Related Documents 03 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTR-102-51-G-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	0.19 "
Contact Length - Mating	4.83 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

FTR-102 Series

Part	Current Rating (Amps)	Contact Finish - Post	Insulation Color	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Termination	Contact Type	Insulation Material	Number of Positions Loaded	Connector Type	Contact Length - Mating	Contact Length - Mating	Contact Shape	Number of Positions	Number of Rows	Fastening Type	Mounting Type	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating [x]	Contact Length - Mating
Samtec Inc. FTR-102-56-S-D	3.1 A	Tin	Black	Phosphor Bronze	2.54 mm	0.1 in	Gold	0.05 in	1.27 mm	-55 °C	125 °C	Unshrouded	30 Áin	0.76 Ám	0.1 in	2.54 mm	Solder	Male Pin	Liquid Crystal Polymer (LCP)	All	Header	0.405 in	10.29 mm	Square	4	2	Push-Pull	Surface Mount	UL94 V-0
Samtec Inc. FTR-102-02-T-D	3.1 A	Tin	Black	Phosphor Bronze	2.54 mm	0.1 in		0.05 in	1.27 mm	-55 °C	125 °C	Unshrouded			0.1 in	2.54 mm	Solder	Male Pin	Liquid Crystal Polymer (LCP)	All	Header	0.1 in	2.54 mm	Square	4	2	Push-Pull	Surface Mount	UL94 V-0
Samtec Inc. FTR-102-51-G-D	3.1 A	Gold	Black	Phosphor Bronze	2.54 mm	0.1 in	Gold	0.05 in	1.27 mm	-55 °C	125 °C	Unshrouded	10 çin	0.25 çm	0.1 in	2.54 mm	Solder	Male Pin	Liquid Crystal Polymer (LCP)	All	Header	0.19 "	4.83 mm	Square	4	2	Push-Pull	Surface Mount	UL94 V-0	3 µin	0.076 µm
Samtec Inc. FTR-102-01-L-S	3.1 A	Tin	Black	Phosphor Bronze			Gold	0.05 in	1.27 mm	-55 °C	125 °C	Unshrouded	10 çin	0.25 çm	0.1 in	2.54 mm	Solder	Male Pin	Liquid Crystal Polymer (LCP)	All	Header		5.84 mm	Square	2	1	Push-Pull	Surface Mount	UL94 V-0			0.23 in
Samtec Inc. FTR-102-53-S-D	3.1 A	Tin	Black	Phosphor Bronze	2.54 mm	0.1 in	Gold	0.05 in	1.27 mm	-55 °C	125 °C	Unshrouded	30 Áin	0.76 Ám	0.1 in	2.54 mm	Solder	Male Pin	Liquid Crystal Polymer (LCP)	All	Header	0.285 in	7.24 mm	Square	4	2	Push-Pull	Surface Mount	UL94 V-0
Samtec Inc. FTR-102-57-S-D	3.1 A	Tin	Black	Phosphor Bronze	2.54 mm	0.1 in	Gold	0.05 in	1.27 mm	-55 °C	125 °C	Unshrouded	30 Áin	0.76 Ám	0.1 in	2.54 mm	Solder	Male Pin	Liquid Crystal Polymer (LCP)	All	Header		0.43 in	Square	4	2	Push-Pull	Surface Mount	UL94 V-0				10.92 mm
Samtec Inc. FTR-102-52-L-S	3.1 A	Tin	Black	Phosphor Bronze			Gold	0.05 in	1.27 mm	-55 °C	125 °C	Unshrouded	10 çin	0.25 çm	0.1 in	2.54 mm	Solder	Male Pin	Liquid Crystal Polymer (LCP)	All	Header	0.205 in	5.21 mm	Square	2	1	Push-Pull	Surface Mount	UL94 V-0
Samtec Inc. FTR-102-01-F-D	3.1 A	Tin	Black	Phosphor Bronze	2.54 mm	0.1 in	Gold	0.05 in	1.27 mm	-55 °C	125 °C	Unshrouded	3 µin	0.076 µm	0.1 in	2.54 mm	Solder	Male Pin	Liquid Crystal Polymer (LCP)	All	Header		5.84 mm	Square	4	2	Push-Pull	Surface Mount	UL94 V-0			0.23 in
Samtec Inc. FTR-102-03-G-D-TR	3.1 A	Gold	Black	Phosphor Bronze	2.54 mm	0.1 in	Gold	0.05 in	1.27 mm	-55 °C	125 °C	Unshrouded	10 çin	0.25 çm	0.1 in	2.54 mm	Solder	Male Pin	Liquid Crystal Polymer (LCP)	All	Header	0.125 in	3.18 mm	Square	4	2	Push-Pull	Surface Mount	UL94 V-0	3 µin	0.076 µm
Samtec Inc. FTR-102-03-L-D-TR	3.1 A	Tin	Black	Phosphor Bronze	2.54 mm	0.1 in	Gold	0.05 in	1.27 mm	-55 °C	125 °C	Unshrouded	10 çin	0.25 çm	0.1 in	2.54 mm	Solder	Male Pin	Liquid Crystal Polymer (LCP)	All	Header	0.125 in	3.18 mm	Square	4	2	Push-Pull	Surface Mount	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.41
		10	$ 1.08
		100	$ 0.83
		500	$ 0.69
		1000	$ 0.65
		5000	$ 0.55
		10000	$ 0.51
