General part information

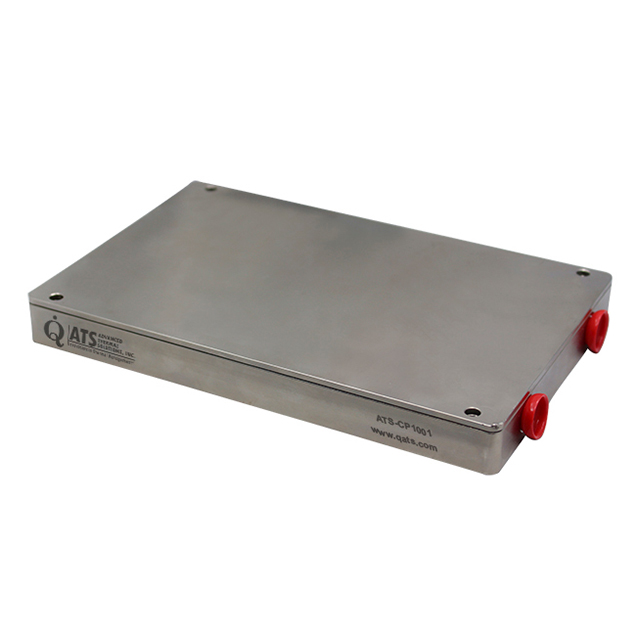

Liquid Cold Plates, Liquid Cooling & Heat Pipes Cold Plate at DT= 5.5oC and 4L/min., Cool Capacity 1kW, No Finish, 202x130x20mm
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | ATS-CP-1000 | ATS-CP Series |
|---|---|---|
| Dimensions - Overall [x] | 202 mm | 162 - 202 mm |
| Dimensions - Overall [x] | 7.95 " | 6.38 - 7.95 " |
| Dimensions - Overall [y] | 130 mm | 130 - 172 mm |
| Dimensions - Overall [y] | 5.12 " | 5.12 - 6.77 " |
| Dimensions - Overall [z] | 0.79 " | 0.79 " |
| Dimensions - Overall [z] | 20 mm | 20 mm |
| Flow Rate | 4 LPM | 4 LPM |
| Flow Rate | 1.06 GPM | 1.06 GPM |
| Power - Cooling | 1000 W | 1000 W |
| Product Type | Passive, Cold Plate | Passive, Cold Plate |
| Thermal Resistance @ GPM | 0.007 °C/W | 0.007 °C/W |
| Weight | 2.4 lbs | 2.4 lbs |
| Weight | 1.1 kg | 1.1 kg |
Liquid Cold Plates, Liquid Cooling & Heat Pipes Cold Plate at DT= 5.5oC and 4L/min., Cool Capacity 1kW, No Finish, 202x130x20mm
| Part | Power - Cooling | Flow Rate | Flow Rate | Dimensions - Overall [z] | Dimensions - Overall [x] | Dimensions - Overall [y] | Dimensions - Overall [z] | Dimensions - Overall [x] | Dimensions - Overall [y] | Thermal Resistance @ GPM | Weight | Weight | Product Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Advanced Thermal Solutions Inc. ATS-CP-1002-DIY | 1000 W | 4 LPM | 1.06 GPM | 0.79 " | 6.38 " | 5.35 " | 20 mm | 162 mm | 136 mm | 0.007 °C/W | 2.4 lbs | 1.1 kg | Cold Plate, Passive |
Advanced Thermal Solutions Inc. ATS-CP-1000 | 1000 W | 4 LPM | 1.06 GPM | 0.79 " | 7.95 " | 5.12 " | 20 mm | 202 mm | 130 mm | 0.007 °C/W | 2.4 lbs | 1.1 kg | Cold Plate, Passive |
Advanced Thermal Solutions Inc. ATS-CP-1002 | 1000 W | 4 LPM | 1.06 GPM | 0.79 " | 6.38 " | 5.35 " | 20 mm | 162 mm | 136 mm | 0.007 °C/W | 2.4 lbs | 1.1 kg | Cold Plate, Passive |
Advanced Thermal Solutions Inc. ATS-CP-1004 | 1000 W | 4 LPM | 1.06 GPM | 0.79 " | 6.38 " | 6.77 in | 20 mm | 162 mm | 172 mm | 0.007 °C/W | 2.4 lbs | 1.1 kg | Cold Plate, Passive |
Advanced Thermal Solutions Inc. ATS-CP-1003 | 1000 W | 4 LPM | 1.06 GPM | 0.79 " | 6.38 " | 5.79 " | 20 mm | 162 mm | 147 mm | 0.007 °C/W | 2.4 lbs | 1.1 kg | Cold Plate, Passive |
