ESD8V0L2B03LE6327XTMA1

Obsolete

Infineon Technologies

TVS DIODE 22VWM 26VC PGTSLP31

Search across all available documentation for this part.

Obsolete

Infineon Technologies

TVS DIODE 22VWM 26VC PGTSLP31

Technical Specifications

Parameters and characteristics for this part

Specification	ESD8V0L2B03LE6327XTMA1

Applications	General Purpose
Bidirectional Channels	2
Capacitance @ Frequency	4 pF
Current - Peak Pulse (10/1000µs)	2.5 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C

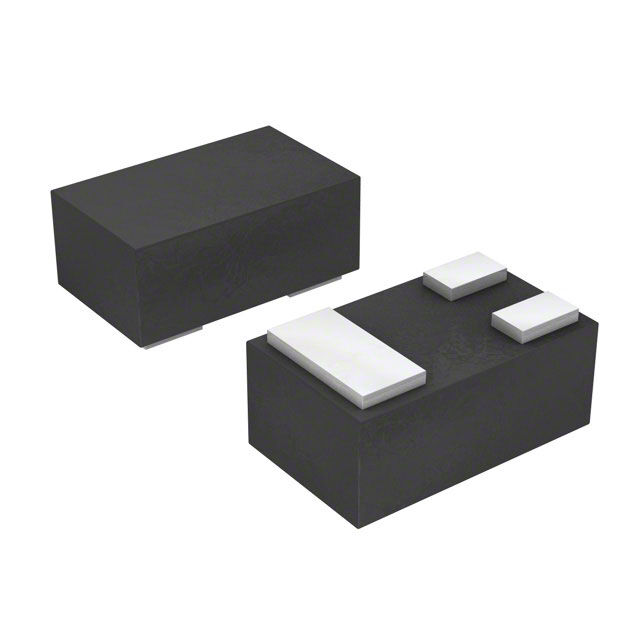

Package / Case	SOT-883, SC-101
Power Line Protection	False
Supplier Device Package	PG-TSLP-3-1
Type	Zener
Voltage - Breakdown (Min)	23 V
Voltage - Clamping (Max) @ Ipp	26 V
Voltage - Reverse Standoff (Typ)	22 V

Part	Mounting Type	Supplier Device Package	Package / Case	Bidirectional Channels	Applications	Voltage - Reverse Standoff (Typ)	Voltage - Breakdown (Min)	Type	Voltage - Clamping (Max) @ Ipp	Current - Peak Pulse (10/1000µs)	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance @ Frequency	Voltage - Breakdown (Min) [Min]	Qualification	Voltage - Clamping (Max) @ Ipp [Max]	Package / Case	Bidirectional Channels [custom]	Grade
Infineon Technologies ESD8V0L2B03LE6327XTMA1	Surface Mount	PG-TSLP-3-1	SC-101 SOT-883	2	General Purpose	22 V	23 V	Zener	26 V	2.5 A	125 ¯C	-55 °C	4 pF
Infineon Technologies ESD8V0R1B02LSE6327XTSA1	Surface Mount	PG-TSSLP-2-1	0201			14 V		Zener		1 A	150 °C	-55 °C	4 pF	8.5 V	AEC-Q101	28 V	0603 Metric	1	Automotive
Infineon Technologies ESD8V0R1B-02EL E6433	Surface Mount	PG-TSLP-2-17	SOD-882		General Purpose	14 V		Zener		1 A	150 °C	-55 °C	4 pF	8.5 V		28 V		1
Infineon Technologies ESD8V0R1B-02LRH E6433	Surface Mount	PG-TSLP-2-17	SOD-882			14 V		Zener		1 A	150 °C	-55 °C	4 pF	8.5 V	AEC-Q101	28 V		1	Automotive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

26V (Typ) Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount PG-TSLP-3-1
