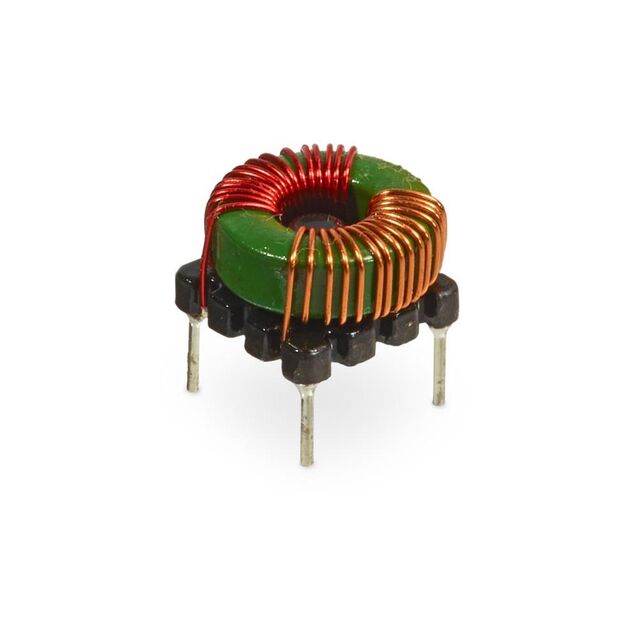

TCK-026

Active

Traco Power

COMMON MODE CHOKES / FILTERS 373UH 36MOHM 3A COMMON MODE CHOKE

Search across all available documentation for this part.

Active

Traco Power

COMMON MODE CHOKES / FILTERS 373UH 36MOHM 3A COMMON MODE CHOKE

Technical Specifications

Parameters and characteristics commom to parts in this series

Common Mode Chokes / Filters 398uH 9mOhm 10.05A Common Mode Choke

Part	Height - Seated (Max) [Max]	Height - Seated (Max)	Mounting Type	Inductance	Tolerance	Current Rating (Amps)	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR)	Type	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance Frequency - Test	Current Rating (Max) [Max]	Inductance @ Frequency	Voltage Rating - DC	Height (Max) [Max]	Height (Max) [Max]	Package / Case	Number of Lines	DC Resistance (DCR) (Max) [Max]	Height (Max) [Max] [z]	Height (Max) [Max] [z]	DC Resistance (DCR) [Max]
Traco Power TCK-156	0.199 "	5.05 mm	Surface Mount	22 µH	20 %	1.1 A	Unshielded	125 °C	-40 °C	180 mOhm	Wirewound	Nonstandard	5.8 mm	0.228 in	5.2 mm	0.205 "
Traco Power TCK-176			Surface Mount	4.7 ÁH	20 %	4.5 A	Unshielded	125 °C	-40 °C			Nonstandard					3.2 mm	0.126 in	100 kHz
Traco Power TCK-177			Through Hole					105 ░C	-40 °C			Horizontal	16 mm	0.63 "	16 mm	0.63 in				10.05 A	398 µH	500 V	15 mm	0.591 in	4 Lead	2	9 mOhm
Traco Power TCK-159			Surface Mount	1 µH	20 %	5 A	Unshielded	125 °C	-55 °C			Nonstandard	4 mm	0.157 "	4 mm	0.157 in	2.1 mm	0.083 "	100 kHz
Traco Power TCK-026			Through Hole					105 ░C	-40 °C			Horizontal	11.5 mm	0.453 "	11.5 mm	0.453 in				3 A	373 µH	500 V			4 Lead	2	36 mOhm	8.8 mm	0.346 in
Traco Power TCK-078	0.199 "	5.05 mm	Surface Mount	1.1 µH	20 %	3.24 A	Unshielded	125 °C	-40 °C			Nonstandard	5.8 mm	0.228 in	5.2 mm	0.205 "			100 kHz											15 mOhm
