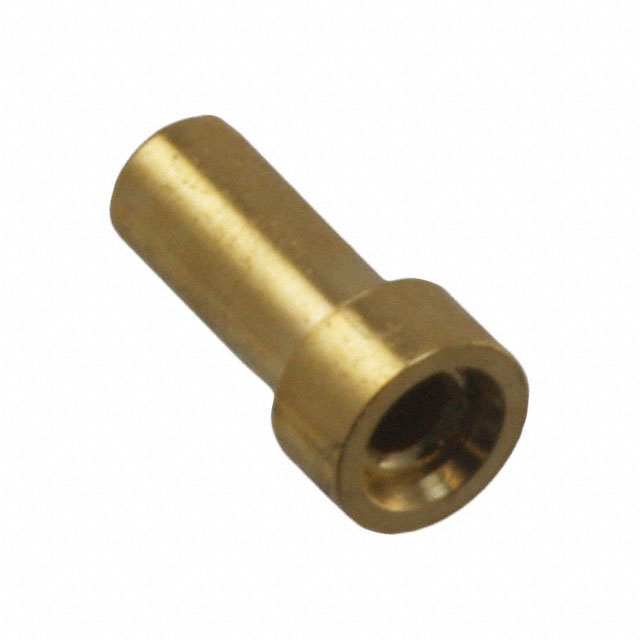

0555-0-15-15-20-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.025 SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0555-0-15-15-20-27-10-0

Accepts Pin Diameter [Max]	0.025 "
Accepts Pin Diameter [Max]	0.64 mm
Accepts Pin Diameter [Min]	0.015 "
Accepts Pin Diameter [Min]	0.38 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.83 mm
Flange Diameter [diameter]	0.072 in
Length - Overall [x]	4.06 mm
Length - Overall [x]	0.16 in
Mounting Hole Diameter [diameter]	0.053 in
Mounting Hole Diameter [diameter]	1.35 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Socket Depth [z]	3.43 mm
Socket Depth [z]	0.135 in
Tail Type	No Tail
Termination	Solder

0555-0 Series

Part	Flange Diameter [diameter]	Flange Diameter [diameter]	Socket Depth [z]	Socket Depth [z]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Tail Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Length - Overall [x]	Length - Overall [x]
Mill-Max Manufacturing Corp. 0555-0-15-15-20-27-10-0	1.83 mm	0.072 in	3.43 mm	0.135 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	Gold	No Tail	0.76 Ám	30 Áin	0.053 in	1.35 mm	Solder	4.06 mm	0.16 in
Mill-Max Manufacturing Corp. 0555-0-15-80-30-27-10-0	1.83 mm	0.072 in	3.43 mm	0.135 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	Gold	No Tail	0.76 Ám	30 Áin	0.053 in	1.35 mm	Solder	4.06 mm	0.16 in
Mill-Max Manufacturing Corp. 0555-0-15-80-32-84-10-0	1.83 mm	0.072 in	3.43 mm	0.135 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	Tin	No Tail	2.54 µm	100 µin	0.053 in	1.35 mm	Solder	4.06 mm	0.16 in
Mill-Max Manufacturing Corp. 0555-0-15-15-32-14-10-0	1.83 mm	0.072 in	3.43 mm	0.135 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	Gold	No Tail	0.25 Ám	10 Áin	0.053 in	1.35 mm	Solder	4.06 mm	0.16 in
Mill-Max Manufacturing Corp. 0555-0-15-15-30-14-10-0	1.83 mm	0.072 in	3.43 mm	0.135 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	Gold	No Tail	0.25 Ám	10 Áin	0.053 in	1.35 mm	Solder	4.06 mm	0.16 in
Mill-Max Manufacturing Corp. 0555-0-15-80-20-27-10-0	1.83 mm	0.072 in	3.43 mm	0.135 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	Gold	No Tail	0.76 Ám	30 Áin	0.053 in	1.35 mm	Solder	4.06 mm	0.16 in
Mill-Max Manufacturing Corp. 0555-0-15-01-20-02-10-0	1.83 mm	0.072 in	3.43 mm	0.135 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	Tin-Lead	No Tail	2.54 µm	100 µin	0.053 in	1.35 mm	Solder	4.06 mm	0.16 in
Mill-Max Manufacturing Corp. 0555-0-15-01-32-02-10-0	1.83 mm	0.072 in	3.43 mm	0.135 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	Tin-Lead	No Tail	2.54 µm	100 µin	0.053 in	1.35 mm	Solder	4.06 mm	0.16 in
Mill-Max Manufacturing Corp. 0555-0-15-01-32-14-10-0	1.83 mm	0.072 in	3.43 mm	0.135 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	Gold	No Tail	0.25 Ám	10 Áin	0.053 in	1.35 mm	Solder	4.06 mm	0.16 in
Mill-Max Manufacturing Corp. 0555-0-15-01-30-14-10-0	1.83 mm	0.072 in	3.43 mm	0.135 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	Gold	No Tail	0.25 Ám	10 Áin	0.053 in	1.35 mm	Solder	4.06 mm	0.16 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.44
		10	$ 0.37
		100	$ 0.29
		1000	$ 0.21
		5000	$ 0.18
		10000	$ 0.17

Description

General part information

0555-0 Series

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) No Tail Solder
