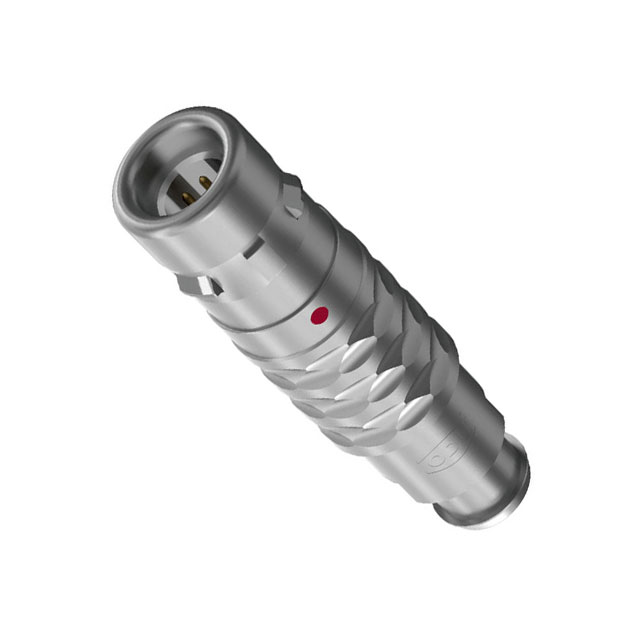

S20K0C-P10MCC9-350S

Active

ODU

CONN PLUG MALE 10P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsODU MINI-SNAP L, K, B Assembly Instruction GB ODU MINI-SNAP® L,K,B Series Catalog +1

S20K0C-P10MCC9-350S

Active

ODU

CONN PLUG MALE 10P GOLD SLDR CUP

Deep-Dive with AI

DocumentsODU MINI-SNAP L, K, B Assembly Instruction GB ODU MINI-SNAP® L,K,B Series Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S20K0C-P10MCC9-350S

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Brass, Chrome over Nickel
Cable Opening [Max] [diameter]	0.138 in
Cable Opening [Max] [diameter]	3.5 mm
Cable Opening [Min] [diameter]	3 mm
Cable Opening [Min] [diameter]	0.118 in
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	4 A
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	0
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	0
Shielding	Shielded

S20K0C-P Series

Part	Applications	Features	Connector Type	Shielding	Number of Positions	Backshell Material, Plating	Shell Finish	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Insert Material	Ingress Protection	Shell Material	Fastening Type	Primary Material	Mounting Type	Contact Finish - Mating	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Current Rating (Amps)	Cable Opening [Max] [diameter]	Voltage Rating	Termination	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
ODU S20K0C-P07MCC0-500S	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	Male Pins Plug	Shielded	7	Brass Chrome over Nickel	Chrome over Nickel	Brass	-40 °C	120 °C	Silver	Polyetheretherketone (PEEK)	IP68 - Dust Tight Waterproof	Brass	Push-Pull	Metal	Free Hanging (In-Line)	Gold	0.197 in	0.177 in	5 mm	4.5 mm	4 A
ODU S20K0C-P04PFG0-350S	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	Male Pins Plug	Shielded	4	Brass Chrome over Nickel	Chrome over Nickel	Brass	-40 °C	120 °C	Silver	Polyetheretherketone (PEEK)	IP68 - Dust Tight Waterproof	Brass	Push-Pull	Metal	Free Hanging (In-Line)	Gold	0.138 in	0.118 in		3 mm	7.5 A	3.5 mm	300 VDC	Crimp
ODU S20K0C-P02MJG0-350S	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	Male Pins Plug	Shielded	2	Brass Chrome over Nickel	Chrome over Nickel	Brass	-40 °C	120 °C	Silver	Polyetheretherketone (PEEK)	IP68 - Dust Tight Waterproof	Brass	Push-Pull	Metal	Free Hanging (In-Line)	Gold	0.138 in	0.118 in		3 mm	7.5 A	3.5 mm
ODU S20K0C-P10MCC9-350S	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	Male Pins Plug	Shielded	10	Brass Chrome over Nickel	Chrome over Nickel	Brass	-40 °C	120 °C	Silver	Polyetheretherketone (PEEK)	IP68 - Dust Tight Waterproof	Brass	Push-Pull	Metal	Free Hanging (In-Line)	Gold	0.138 in	0.118 in		3 mm	4 A	3.5 mm
ODU S20K0C-P05MFG0-500S	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	Male Pins Plug	Shielded		Brass Chrome over Nickel	Chrome over Nickel	Brass	-40 °C	120 °C	Silver	Polyetheretherketone (PEEK)	IP68 - Dust Tight Waterproof	Brass	Push-Pull	Metal	Free Hanging (In-Line)	Gold	0.197 in	0.177 in	5 mm	4.5 mm	7.5 A
ODU S20K0C-P03MJG0-250S	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	Male Pins Plug	Shielded		Brass Chrome over Nickel	Chrome over Nickel	Brass	-40 °C	120 °C	Silver	Polyetheretherketone (PEEK)	IP68 - Dust Tight Waterproof	Brass	Push-Pull	Metal	Free Hanging (In-Line)	Gold					7.5 A				0.098 in	2 mm	0.079 in	2.5 mm
ODU S20K0C-P10MCC9-400S	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	Male Pins Plug	Shielded	10	Brass Chrome over Nickel	Chrome over Nickel	Brass	-40 °C	120 °C	Silver	Polyetheretherketone (PEEK)	IP68 - Dust Tight Waterproof	Brass	Push-Pull	Metal	Free Hanging (In-Line)	Gold	0.157 in	0.138 in		3.5 mm	4 A	4 mm
ODU S20K0C-P10MCC9-250S	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	Male Pins Plug	Shielded	10	Brass Chrome over Nickel	Chrome over Nickel	Brass	-40 °C	120 °C	Silver	Polyetheretherketone (PEEK)	IP68 - Dust Tight Waterproof	Brass	Push-Pull	Metal	Free Hanging (In-Line)	Gold					4 A				0.098 in	2 mm	0.079 in	2.5 mm
ODU S20K0C-P04MFG0-450S	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	Male Pins Plug	Shielded	4	Brass Chrome over Nickel	Chrome over Nickel	Brass	-40 °C	120 °C	Silver	Polyetheretherketone (PEEK)	IP68 - Dust Tight Waterproof	Brass	Push-Pull	Metal	Free Hanging (In-Line)	Gold					7.5 A				0.177 in	4 mm	0.157 in		4.5 mm
ODU S20K0C-P04MFG0-350S	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	Male Pins Plug	Shielded	4	Brass Chrome over Nickel	Chrome over Nickel	Brass	-40 °C	120 °C	Silver	Polyetheretherketone (PEEK)	IP68 - Dust Tight Waterproof	Brass	Push-Pull	Metal	Free Hanging (In-Line)	Gold	0.138 in	0.118 in		3 mm	7.5 A	3.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.48

Description

General part information

S20K0C-P Series

10 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

ODU MINI-SNAP L, K, B Assembly Instruction GB

Datasheet

ODU MINI-SNAP® L,K,B Series Catalog

Datasheet
