M3BBK-3418R
Active3M
IDC CABLE - MSR34K/MC34M/MSR34K
Deep-Dive with AI
Search across all available documentation for this part.
M3BBK-3418R
Active3M
IDC CABLE - MSR34K/MC34M/MSR34K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M3BBK-3418R | M3BBK Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Ribbon, Multiple | Ribbon, Multiple, Multiple, Twisted Pair (Flat) |
| Connector Type | Socket to Socket | Socket to Socket |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Strain Relief | Strain Relief |
| Length | - | 1.52 - 508 mm |
| Length | - | 6 " |
| Length | - | 0.5 ' |
| Length | - | 1.67 - 5 ft |
| Length [x] | 457.2 mm | 1.02 - 914.4 mm |
| Length [x] | 1.5 ft | 1.5 - 3.34 ft |
| Number of Positions | 34 | 10 - 60 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M3BBK Series
IDC CABLE - MSR60K/MC60M/MSR60K
| Part | Features | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Shielding | Length | Length | Length | Pitch - Cable | Pitch - Cable | Number of Rows | Pitch - Connector | Pitch - Connector | Color | Cable Termination | Number of Positions | Contact Finish | Length [x] | Length [x] | Length | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Strain Relief | Socket to Socket | 0.76 Ám | 30 Áin | Unshielded | 152.4 mm | 6 " | 0.5 ' | 0.05 " | 1.27 mm | 2 | 0.1 in | 2.54 mm | Multiple, Ribbon | IDC | 60 | Gold | |||||
Strain Relief | Socket to Socket | 0.76 Ám | 30 Áin | Unshielded | 0.05 " | 1.27 mm | 2 | 0.1 in | 2.54 mm | Multiple, Ribbon | IDC | 20 | Gold | 457.2 mm | 1.5 ft | ||||||
Strain Relief | Socket to Socket | 0.76 Ám | 30 Áin | Unshielded | 152.4 mm | 6 " | 0.5 ' | 0.05 " | 1.27 mm | 2 | 0.1 in | 2.54 mm | IDC | 26 | Gold | ||||||
Strain Relief | Socket to Socket | 0.76 Ám | 30 Áin | Unshielded | 0.05 " | 1.27 mm | 2 | 0.1 in | 2.54 mm | Multiple, Ribbon | IDC | 50 | Gold | 914.4 mm | 3 ft | ||||||
Strain Relief | Socket to Socket | 0.76 Ám | 30 Áin | Unshielded | 0.05 " | 1.27 mm | 2 | 0.1 in | 2.54 mm | IDC | 30 | Gold | 457.2 mm | 1.5 ft | |||||||
Strain Relief | Socket to Socket | 0.76 Ám | 30 Áin | Unshielded | 0.05 " | 1.27 mm | 2 | 0.1 in | 2.54 mm | Multiple, Ribbon | IDC | 10 | Gold | 914.4 mm | 3 ft | ||||||
Strain Relief | Socket to Socket | 0.76 Ám | 30 Áin | Unshielded | 0.05 " | 1.27 mm | 2 | 0.1 in | 2.54 mm | Multiple, Ribbon | IDC | 26 | Gold | 457.2 mm | 1.5 ft | ||||||
Strain Relief | Socket to Socket | 0.76 Ám | 30 Áin | Unshielded | 152.4 mm | 6 " | 0.5 ' | 0.05 " | 1.27 mm | 2 | 0.1 in | 2.54 mm | Multiple, Ribbon | IDC | 34 | Gold | |||||
Strain Relief | Socket to Socket | 0.76 Ám | 30 Áin | Unshielded | 0.05 " | 1.27 mm | 2 | 0.1 in | 2.54 mm | Multiple, Ribbon | IDC | 26 | Gold | 914.4 mm | 3 ft | ||||||
Strain Relief | Socket to Socket | 0.76 Ám | 30 Áin | Unshielded | 508 mm | 0.05 " | 1.27 mm | 2 | 0.1 in | 2.54 mm | Multiple, Twisted Pair (Flat) | IDC | 40 | Gold | 1.67 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.66 | |
| 10 | $ 19.01 | |||
| 25 | $ 17.22 | |||
| 50 | $ 16.00 | |||
| 100 | $ 14.90 | |||
| 250 | $ 13.60 | |||
| 500 | $ 12.73 | |||
Description
General part information
M3BBK Series

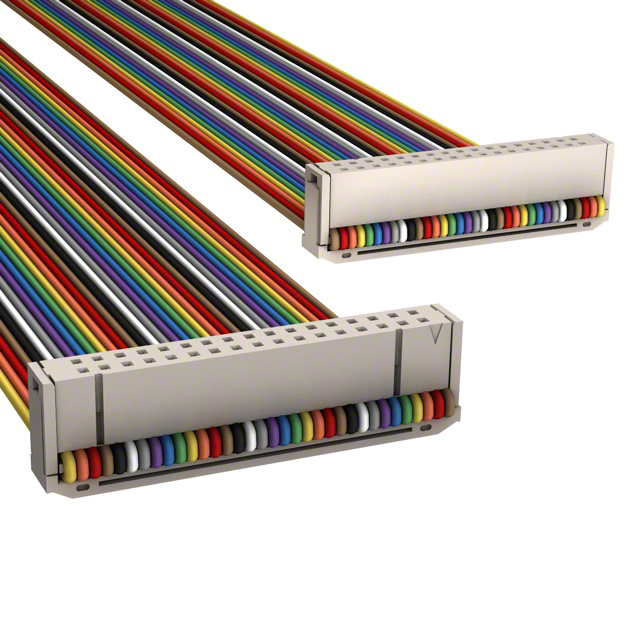

34 Position Cable Assembly Rectangular Socket to Socket 1.50' (457.20mm)
