M3BBK-2018R

Active

IDC CABLE - MSR20K/MC20M/MSR20K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRibbon Cable Assembly Length Guide Datasheet +1

M3BBK-2018R

Active

IDC CABLE - MSR20K/MC20M/MSR20K

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.84
		10	$ 12.95
		25	$ 11.72
		50	$ 10.88
		100	$ 10.12
		250	$ 9.23
		500	$ 8.62
		1000	$ 8.08

Description

General part information

M3BBK Series

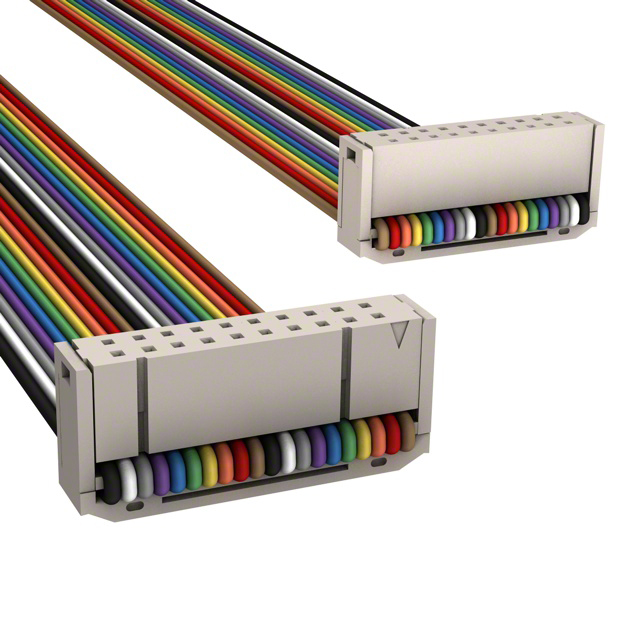

20 Position Cable Assembly Rectangular Socket to Socket 1.50' (457.20mm)

Documents

Technical documentation and resources

Ribbon Cable Assembly Length Guide

Datasheet

3302 Series

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3BBK-2018R	M3BBK Series

Cable Termination	IDC	IDC
Color	Ribbon, Multiple	Ribbon, Multiple, Multiple, Twisted Pair (Flat)
Connector Type	Socket to Socket	Socket to Socket
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Strain Relief	Strain Relief
Length	-	1.52 - 508 mm
Length	-	6 "
Length	-	0.5 '
Length	-	1.67 - 5 ft
Length [x]	457.2 mm	1.02 - 914.4 mm
Length [x]	1.5 ft	1.5 - 3.34 ft
Number of Positions	20	10 - 60
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M3BBK Series

IDC CABLE - MSR60K/MC60M/MSR60K

Part	Features	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Shielding	Length	Length	Length	Pitch - Cable	Pitch - Cable	Number of Rows	Pitch - Connector	Pitch - Connector	Color	Cable Termination	Number of Positions	Contact Finish	Length [x]	Length [x]	Length
3M M3BBK-6006R	Strain Relief	Socket to Socket	0.76 Ám	30 Áin	Unshielded	152.4 mm	6 "	0.5 '	0.05 "	1.27 mm	2	0.1 in	2.54 mm	Multiple, Ribbon	IDC	60	Gold
3M M3BBK-2018R	Strain Relief	Socket to Socket	0.76 Ám	30 Áin	Unshielded				0.05 "	1.27 mm	2	0.1 in	2.54 mm	Multiple, Ribbon	IDC	20	Gold	457.2 mm	1.5 ft
3M M3BBK-2606J	Strain Relief	Socket to Socket	0.76 Ám	30 Áin	Unshielded	152.4 mm	6 "	0.5 '	0.05 "	1.27 mm	2	0.1 in	2.54 mm		IDC	26	Gold
3M M3BBK-5036R	Strain Relief	Socket to Socket	0.76 Ám	30 Áin	Unshielded				0.05 "	1.27 mm	2	0.1 in	2.54 mm	Multiple, Ribbon	IDC	50	Gold	914.4 mm	3 ft
3M M3BBK-3018J	Strain Relief	Socket to Socket	0.76 Ám	30 Áin	Unshielded				0.05 "	1.27 mm	2	0.1 in	2.54 mm		IDC	30	Gold	457.2 mm	1.5 ft
3M M3BBK-1036R	Strain Relief	Socket to Socket	0.76 Ám	30 Áin	Unshielded				0.05 "	1.27 mm	2	0.1 in	2.54 mm	Multiple, Ribbon	IDC	10	Gold	914.4 mm	3 ft
3M M3BBK-2618R	Strain Relief	Socket to Socket	0.76 Ám	30 Áin	Unshielded				0.05 "	1.27 mm	2	0.1 in	2.54 mm	Multiple, Ribbon	IDC	26	Gold	457.2 mm	1.5 ft
3M M3BBK-3406R	Strain Relief	Socket to Socket	0.76 Ám	30 Áin	Unshielded	152.4 mm	6 "	0.5 '	0.05 "	1.27 mm	2	0.1 in	2.54 mm	Multiple, Ribbon	IDC	34	Gold
3M M3BBK-2636R	Strain Relief	Socket to Socket	0.76 Ám	30 Áin	Unshielded				0.05 "	1.27 mm	2	0.1 in	2.54 mm	Multiple, Ribbon	IDC	26	Gold	914.4 mm	3 ft
3M M3BBK-4020K	Strain Relief	Socket to Socket	0.76 Ám	30 Áin	Unshielded	508 mm			0.05 "	1.27 mm	2	0.1 in	2.54 mm	Multiple, Twisted Pair (Flat)	IDC	40	Gold			1.67 ft
