CSI-RSFB-300-UFFR

Active

TE Connectivity Linx

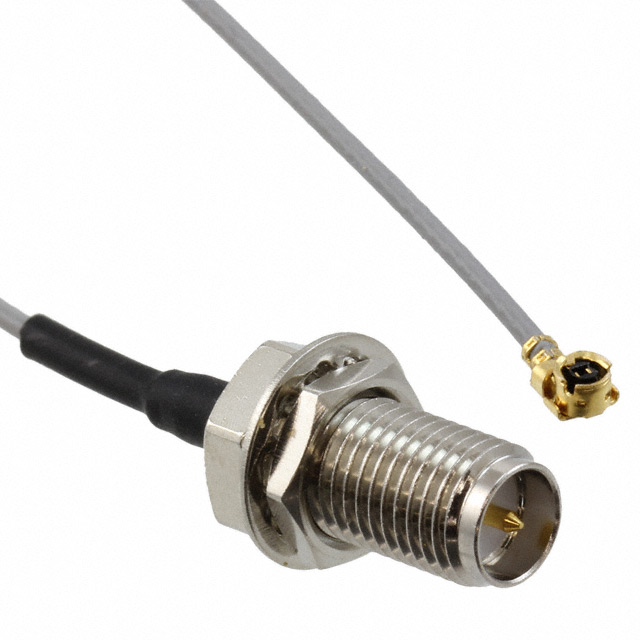

CBL ASSY U.FL-RPSMA J-PL 11.811"

Search across all available documentation for this part.

Active

TE Connectivity Linx

CBL ASSY U.FL-RPSMA J-PL 11.811"

Technical Specifications

Parameters and characteristics for this part

Specification	CSI-RSFB-300-UFFR

1st Connector	RP-SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	U.FL (UMCC) Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	1.13mm OD Coaxial Cable
Color	Gray
Frequency - Max [Max]	3 GHz
Length [x]	300 mm
Length [x]	11.811 in
Overall Impedance	50 Ohms
Style	U.FL (UMCC) to RP-SMA

Part	Style	1st Connector Mounting Type	Length [x]	Length [x]	Overall Impedance	Frequency - Max [Max]	1st Connector Mounting Feature	2nd Connector Mounting Type	1st Contact Gender	2nd Connector	2nd Contact Gender	1st Connector	Cable Type	Color	Length	Length
TE Connectivity Linx CSI-RSFB-300-UFFR	U.FL (UMCC) to RP-SMA	Panel Mount	300 mm	11.811 in	50 Ohms	3 GHz	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Male	U.FL (UMCC) Plug Right Angle	Female	RP-SMA Jack	1.13mm OD Coaxial Cable	Gray
TE Connectivity Linx CSI-RSFB-100-UFFR	U.FL (UMCC) to RP-SMA	Panel Mount	0.1 m	3.937 in	50 Ohms	3 GHz	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Male	U.FL (UMCC) Plug Right Angle	Female	RP-SMA Jack	1.13mm OD Coaxial Cable	Gray
TE Connectivity Linx CSI-RSFB-200-UFFR	U.FL (UMCC) to RP-SMA	Panel Mount			50 Ohms	3 GHz	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Male	U.FL (UMCC) Plug Right Angle	Female	RP-SMA Jack	1.13mm OD Coaxial Cable	Gray	7.874 in	200 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.56

General part information

Cable Assembly Coaxial U.FL (UMCC) to RP-SMA 1.13mm OD Coaxial Cable 11.811" (300.00mm)
