829265-3

Active

TE Connectivity AMP Connectors

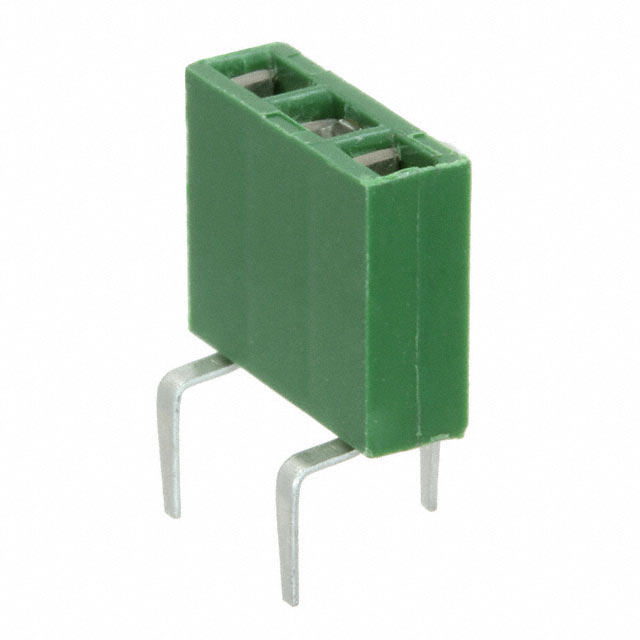

CONN RCPT 3POS 0.1 GOLD PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT 3POS 0.1 GOLD PCB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	829265-3	829265 Series

Connector Type	Receptacle, Bottom or Top Entry	Receptacle, Bottom or Top Entry
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	31.5 µin	31.5 µin
Contact Finish Thickness - Mating	0.8 µm	0.8 µm
Contact Finish Thickness - Post	3 µm	3 µm
Contact Finish Thickness - Post	118.1 µin	118.1 µin
Contact Length - Post [x]	0.12 in	0.12 in
Contact Length - Post [x]	3.05 mm	3.05 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black or Green	Green, Black or Green
Insulation Height	6.5 mm	6.5 mm
Insulation Height	0.256 in	0.256 in
Insulation Material	Polybutylene Terephthalate (PBTP)	Polybutylene Terephthalate (PBTP)
Mounting Type	Through Hole	Through Hole
Number of Positions	-	8 - 10
Number of Positions Loaded	All	All
Number of Rows	1	1
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Termination	Solder	Solder

CONN RCPT 10POS 0.1 GOLD PCB

Part	Fastening Type	Connector Type	Contact Material	Contact Finish - Post	Contact Shape	Contact Finish - Mating	Contact Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Insulation Height	Insulation Height	Insulation Color	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Termination	Number of Rows	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 1-829265-0	Push-Pull	Receptacle, Bottom or Top Entry	Copper Alloy	Tin	Square	Gold	Female Socket	0.1 in	2.54 mm	31.5 µin	0.8 µm	10	6.5 mm	0.256 in	Green	Through Hole	0.12 in	3.05 mm	All	Solder	1	Polybutylene Terephthalate (PBTP)	3 µm	118.1 µin
TE Connectivity AMP Connectors 829265-3	Push-Pull	Receptacle, Bottom or Top Entry	Copper Alloy	Tin	Square	Gold	Female Socket	0.1 in	2.54 mm	31.5 µin	0.8 µm		6.5 mm	0.256 in	Black or Green	Through Hole	0.12 in	3.05 mm	All	Solder	1	Polybutylene Terephthalate (PBTP)	3 µm	118.1 µin
TE Connectivity AMP Connectors 829265-8	Push-Pull	Receptacle, Bottom or Top Entry	Copper Alloy	Tin	Square	Gold	Female Socket	0.1 in	2.54 mm	31.5 µin	0.8 µm	8	6.5 mm	0.256 in	Green	Through Hole	0.12 in	3.05 mm	All	Solder	1	Polybutylene Terephthalate (PBTP)	3 µm	118.1 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Through Hole Gold
