LSF0102DQER
ActiveTexas Instruments

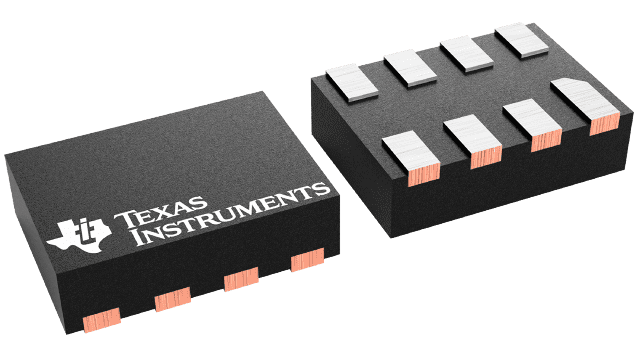

DUAL BIDIRECTIONAL MULTIVOLTAGE LEVEL TRANSLATOR 8-X2SON -40 TO 125
Deep-Dive with AI
Search across all available documentation for this part.
LSF0102DQER
ActiveTexas Instruments
DUAL BIDIRECTIONAL MULTIVOLTAGE LEVEL TRANSLATOR 8-X2SON -40 TO 125
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LSF0102DQER | LSF0102 Series |
|---|---|---|
| Channel Type | Bidirectional | Bidirectional |
| Channels per Circuit | 2 | 2 |
| Data Rate | - | 100 MHz |
| Features | Auto-Direction Sensing | Auto-Direction Sensing |
| Grade | - | Automotive |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | Push-Pull, Open Drain | Push-Pull, Open Drain |
| Package / Case | 8-XFDFN | 8-VFSOP, TSOT-23-8, SOT-23-8 Thin, 8-XFDFN |
| Package / Case | - | 0.091 in |
| Package / Case | - | 2.3 mm |
| Qualification | - | AEC-Q100 |
| Supplier Device Package | 8-X2SON (1.4x1) | SM8, TSOT-23-8, 8-X2SON (1.4x1) |
| Translator Type | Voltage Level | Voltage Level |
| Voltage - VCCA [Max] | 5 V | 5 V |
| Voltage - VCCA [Min] | 0 V | 0 V |
| Voltage - VCCB [Max] | 5 V | 5 V |
| Voltage - VCCB [Min] | 0 V | 0 - 0.95 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
LSF0102 Series
Dual bidirectional multivoltage level translator
| Part | Translator Type | Channel Type | Voltage - VCCA [Min] | Voltage - VCCA [Max] | Output Type | Channels per Circuit | Qualification | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Package / Case | Package / Case | Voltage - VCCB [Max] | Voltage - VCCB [Min] | Number of Circuits | Grade | Mounting Type | Supplier Device Package | Features | Data Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments LSF0102QDCURQ1The LSF0102-Q1 device is an auto bidirectional voltage translator that translates among a wide range of supplies without the need for a directional pin. The LSF0102-Q1 supports up to 100 MHz up translation and greater than 100 MHz down translation with capacitive loads ≤ 30 pF. Additionally, the LSF0102-Q1 supports up to 40 MHz up and down translation at 50 pF capacitance load, which enables the LSF0102-Q1 device to support a wide variety of standard interfaces commonly found in automotive applications such as I 2C, SPI, GPIO, SDIO, UART, and MDIO.
The LSF0102-Q1 device has 5-V tolerant data inputs. This makes the device compatible with TTL voltage levels. Furthermore, the LSF0102-Q1 supports mixed-mode voltage translation, allowing the device to up translate and down translate to different supply levels on each channel.
The LSF0102-Q1 device is an auto bidirectional voltage translator that translates among a wide range of supplies without the need for a directional pin. The LSF0102-Q1 supports up to 100 MHz up translation and greater than 100 MHz down translation with capacitive loads ≤ 30 pF. Additionally, the LSF0102-Q1 supports up to 40 MHz up and down translation at 50 pF capacitance load, which enables the LSF0102-Q1 device to support a wide variety of standard interfaces commonly found in automotive applications such as I 2C, SPI, GPIO, SDIO, UART, and MDIO.
The LSF0102-Q1 device has 5-V tolerant data inputs. This makes the device compatible with TTL voltage levels. Furthermore, the LSF0102-Q1 supports mixed-mode voltage translation, allowing the device to up translate and down translate to different supply levels on each channel. | Voltage Level | Bidirectional | 0 V | 5 V | Open Drain, Push-Pull | 2 | AEC-Q100 | 125 °C | -40 °C | 0.091 in | 8-VFSOP | 2.3 mm | 5 V | 0 V | 1 | Automotive | Surface Mount | |||
Texas Instruments LSF0102DCTRThe LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I2C, SMBus, and so forth). The LSF family of devices supports up to 100MHz up translation and greater than 100MHz down translation at ≤ 30pF capacitive load and up to 40MHz up or down translation at 50pF capacitive load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO).
LSF family supports 5V tolerance on I/O port which makes it compatible with TTL levels in industrial and telecom applications. The LSF family is able to set up different voltage translation levels which makes it very flexible.
The LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I2C, SMBus, and so forth). The LSF family of devices supports up to 100MHz up translation and greater than 100MHz down translation at ≤ 30pF capacitive load and up to 40MHz up or down translation at 50pF capacitive load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO).
LSF family supports 5V tolerance on I/O port which makes it compatible with TTL levels in industrial and telecom applications. The LSF family is able to set up different voltage translation levels which makes it very flexible. | Voltage Level | Bidirectional | 0 V | 5 V | Open Drain, Push-Pull | 2 | 125 °C | -40 °C | 5 V | 0 V | 1 | Surface Mount | SM8 | Auto-Direction Sensing | ||||||
Texas Instruments LSF0102DDFRThe LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I2C, SMBus, and so forth). The LSF family of devices supports up to 100MHz up translation and greater than 100MHz down translation at ≤ 30pF capacitive load and up to 40MHz up or down translation at 50pF capacitive load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO).
LSF family supports 5V tolerance on I/O port which makes it compatible with TTL levels in industrial and telecom applications. The LSF family is able to set up different voltage translation levels which makes it very flexible.
The LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I2C, SMBus, and so forth). The LSF family of devices supports up to 100MHz up translation and greater than 100MHz down translation at ≤ 30pF capacitive load and up to 40MHz up or down translation at 50pF capacitive load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO).
LSF family supports 5V tolerance on I/O port which makes it compatible with TTL levels in industrial and telecom applications. The LSF family is able to set up different voltage translation levels which makes it very flexible. | Voltage Level | Bidirectional | Open Drain, Push-Pull | 2 | 125 °C | -40 °C | SOT-23-8 Thin, TSOT-23-8 | 5 V | 0.95 V | 1 | Surface Mount | TSOT-23-8 | 100 MHz | |||||||
Texas Instruments LSF0102DQERThe LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I2C, SMBus, and so forth). The LSF family of devices supports up to 100MHz up translation and greater than 100MHz down translation at ≤ 30pF capacitive load and up to 40MHz up or down translation at 50pF capacitive load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO).
LSF family supports 5V tolerance on I/O port which makes it compatible with TTL levels in industrial and telecom applications. The LSF family is able to set up different voltage translation levels which makes it very flexible.
The LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I2C, SMBus, and so forth). The LSF family of devices supports up to 100MHz up translation and greater than 100MHz down translation at ≤ 30pF capacitive load and up to 40MHz up or down translation at 50pF capacitive load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO).
LSF family supports 5V tolerance on I/O port which makes it compatible with TTL levels in industrial and telecom applications. The LSF family is able to set up different voltage translation levels which makes it very flexible. | Voltage Level | Bidirectional | 0 V | 5 V | Open Drain, Push-Pull | 2 | 125 °C | -40 °C | 8-XFDFN | 5 V | 0 V | 1 | Surface Mount | 8-X2SON (1.4x1) | Auto-Direction Sensing | |||||
Texas Instruments LSF0102DCURThe LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I2C, SMBus, and so forth). The LSF family of devices supports up to 100MHz up translation and greater than 100MHz down translation at ≤ 30pF capacitive load and up to 40MHz up or down translation at 50pF capacitive load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO).
LSF family supports 5V tolerance on I/O port which makes it compatible with TTL levels in industrial and telecom applications. The LSF family is able to set up different voltage translation levels which makes it very flexible.
The LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I2C, SMBus, and so forth). The LSF family of devices supports up to 100MHz up translation and greater than 100MHz down translation at ≤ 30pF capacitive load and up to 40MHz up or down translation at 50pF capacitive load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO).
LSF family supports 5V tolerance on I/O port which makes it compatible with TTL levels in industrial and telecom applications. The LSF family is able to set up different voltage translation levels which makes it very flexible. | Voltage Level | Bidirectional | 0 V | 5 V | Open Drain, Push-Pull | 2 | 125 °C | -40 °C | 0.091 in | 8-VFSOP | 2.3 mm | 5 V | 0 V | 1 | Surface Mount | Auto-Direction Sensing |
Description
General part information
LSF0102 Series
The LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I2C, SMBus, and so forth). The LSF family of devices supports up to 100MHz up translation and greater than 100MHz down translation at ≤ 30pF capacitive load and up to 40MHz up or down translation at 50pF capacitive load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO).
LSF family supports 5V tolerance on I/O port which makes it compatible with TTL levels in industrial and telecom applications. The LSF family is able to set up different voltage translation levels which makes it very flexible.
The LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I2C, SMBus, and so forth). The LSF family of devices supports up to 100MHz up translation and greater than 100MHz down translation at ≤ 30pF capacitive load and up to 40MHz up or down translation at 50pF capacitive load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO).
