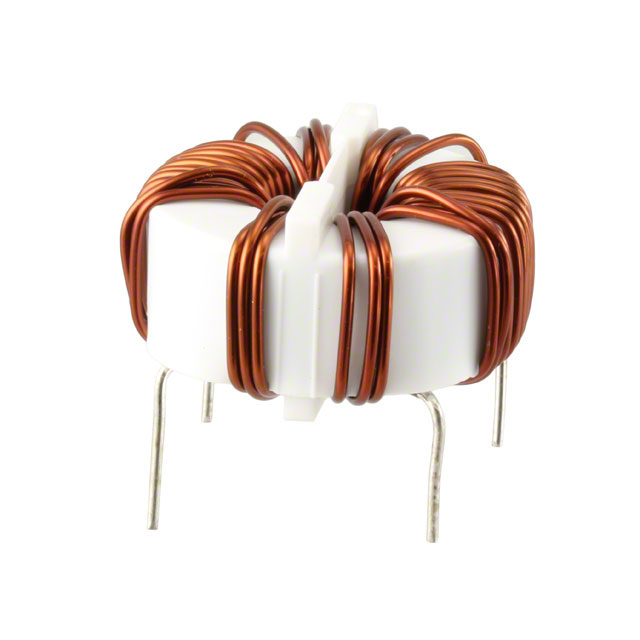

Specification	SC-10-200

Current Rating (Max)	10 A
DC Resistance (DCR) (Max)	28 mOhm
Filter Type	Power Line
Height (Max)	1.063 in
Inductance	2 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	No Base, 4 PC Pin, Horizontal
Package Name	No Base, Horizontal
Pad Count	4 PC Pin
Size / Dimension Diameter	1.85 in
Voltage Rating - AC	250 V
Voltage Rating - DC	250 VDC

SC-10 Series

Part	Inductance	Voltage Rating - AC	Voltage Rating - DC	Current Rating (Max)	Height (Max)	Size / Dimension Diameter	DC Resistance (DCR) (Max)	Filter Type	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Pad Count	Package / Case	Package Name	Number of Lines	Package Leads	Size / Dimension Width	Size / Dimension Length	Pin Count
KEMET SC-10-1000	10 mH	250 V	250 VDC	10 A	1.181 in	2.244 in	35 mOhm	Power Line	Through Hole	-40 °C	105 °C	4 PC Pin	4 PC Pin Horizontal No Base	Horizontal No Base	2
KEMET SC-10-200	2 mH	250 V	250 VDC	10 A	1.063 in	1.85 in	28 mOhm	Power Line	Through Hole	-40 °C	105 °C	4 PC Pin	4 PC Pin Horizontal No Base	Horizontal No Base	2
KEMET SC-10-55JH	5.5 mH	250 V	250 VDC	10 A	1.339 in	2.008 in		Power Line	Through Hole	-40 °C	105 °C		4 PC Pin Horizontal	Horizontal	2	4 Leads
KEMET SC-10-E200H	2 mH	250 V	250 VDC	10 A	0.945 in	1.339 in	20 mOhm	Power Line	Through Hole	-40 °C	120 °C	4 PC Pin	4 PC Pin Horizontal No Base	Horizontal No Base	2
KEMET SC-10-500	5 mH	250 V	250 VDC	10 A	1.063 in	1.929 in	25 mOhm	Power Line	Through Hole	-40 °C	105 °C	4 PC Pin	4 PC Pin Horizontal No Base	Horizontal No Base	2
KEMET SC-10-10J	1 mH	250 V	250 VDC	10 A	1.299 in		20 mOhm	Power Line	Through Hole	-40 °C	105 °C		4 PC Pin Vertical	Vertical	2	4 Leads	0.906 in	1.339 in
KEMET SC-10-340	3.4 mH	250 V	250 VDC	10 A	1.89 in	1.89 in	32 mOhm	Power Line	Through Hole	-40 °C	105 °C		4 PC Pin No Base Vertical	No Base Vertical	2	4 Leads			4
KEMET SC-10-20JH	2 mH	250 V	250 VDC	10 A	1.614 in	1.654 in	22 mOhm	Power Line	Through Hole	-40 °C	105 °C		4 PC Pin Horizontal	Horizontal	2	4 Leads
KEMET SC-10-E80JH	8 mH	250 V	250 VDC	10 A	1.378 in	2.087 in		Power Line	Through Hole	-40 °C	120 °C		4 PC Pin Horizontal	Horizontal	2	4 Leads
