C2463A.41.10

Active

Prysmian Group

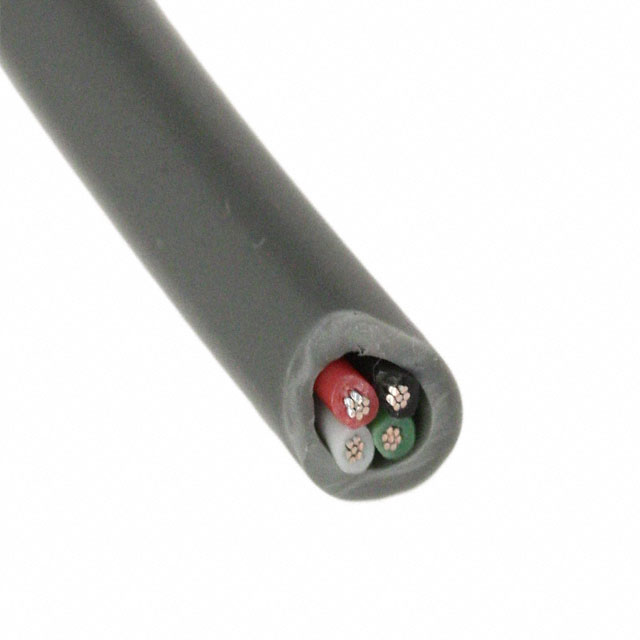

CABLE 4COND 24AWG GRAY

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 4COND 24AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	C2463A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.174 "
Jacket (Insulation) Diameter [diameter]	4.42 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1000 ft
Length	304.8 m, 15.24 m
Length [x]	50 ft, 100 ft
Length [x]	30.5 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	ASTM B-33
Usage	Control, Communication
Voltage	300 V
Wire Gauge	24 AWG

Part	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Length	Length	Conductor Insulation	Length [x]	Jacket Color	Jacket (Insulation) Material	Length [x]	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Cable Type
Prysmian Group C2463A.41.10	ASTM B-33	32 AWG	7	4	300 V	0.174 "	4.42 mm	Communication Control	1000 ft	15.24 m 304.8 m	Poly-Vinyl Chloride (PVC)	50 ft 100 ft	Gray	Poly-Vinyl Chloride (PVC)	30.5 m	24 AWG	-20 C	80 C	Copper Annealed Tinned	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Gray 24 AWG 1000.0' (304.8m)
