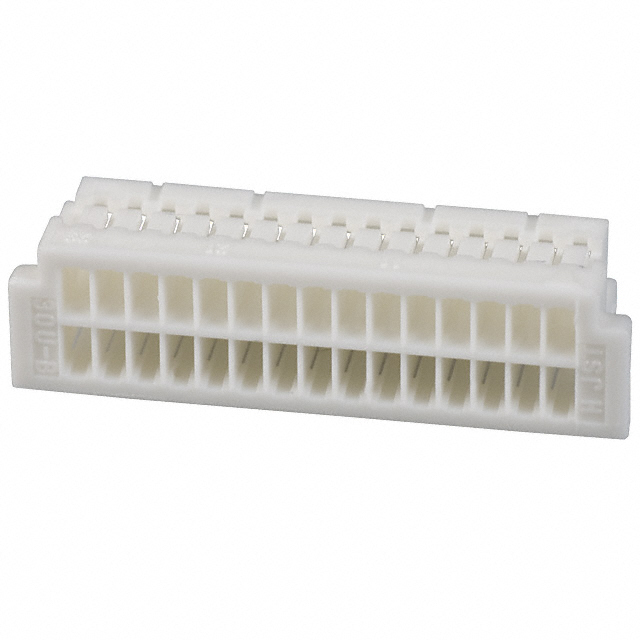

SHDR-30V-S-B

Active

JST Sales America Inc.

CONN RCPT HSG 30POS 1.00MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT HSG 30POS 1.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	SHDR-30V-S-B

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Features	Pick and Place
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	30
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Row Spacing	0.039 in
Row Spacing	1 mm

Part	Color	Connector Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Row Spacing	Row Spacing	Insulation Material	Contact Termination	Features	Note	Contact Type	Number of Positions	Pitch [x]	Pitch [x]
JST Sales America Inc. SHDR-30V-S-B	Natural	Receptacle	2	-25 °C	85 °C	Free Hanging (In-Line)	0.039 in	1 mm	Polybutylene Terephthalate (PBT)	Crimp	Pick and Place	Contacts Not Included	Female Socket	30	0.039 in	1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Rectangular Connectors - Housings Receptacle Natural 0.039" (1.00mm)
