307-006-457-158
ActiveEDAC Inc.

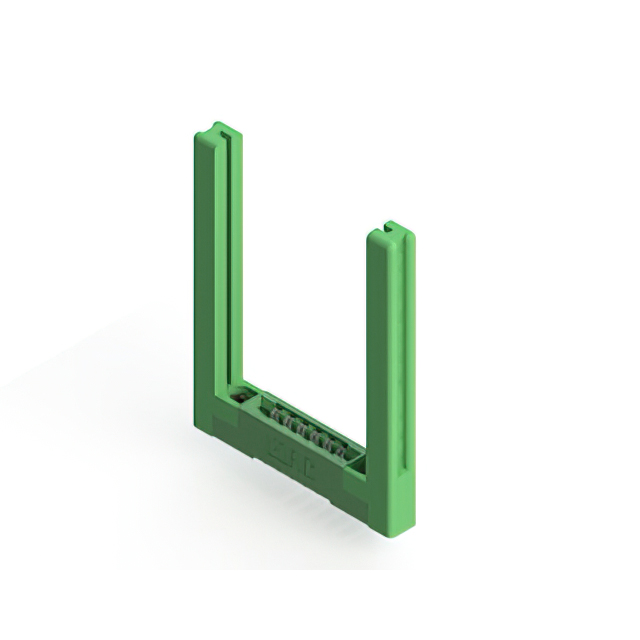

CONN EDGE DUAL FMALE 12POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
307-006-457-158
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 12POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 307-006-457-158 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 12 |
| Number of Positions/Bay/Row [custom] | 6 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
307-006 Series
...
| Part | Card Type | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Number of Positions/Bay/Row [custom] | Contact Finish | Gender | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Contact Material | Termination | Material - Insulation | Contact Type | Termination Rows | Number of Rows | Pitch [x] | Pitch [x] | Number of Positions | Features | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Single Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 6 | Tin | Female | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | -40 °C | 105 ░C | Single | Copper Alloy | Wire Wrap | Polyester Thermoplastic | Semi Bellows | 1 | 1 | 0.156 in | 3.96 mm | 6 | |||
EDAC Inc. | Non Specified - Single Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 6 | Tin | Female | -40 °C | 105 ░C | Single | Copper Alloy | Wire Wrap | Polyester Thermoplastic | Semi Bellows | 1 | 1 | 0.156 in | 3.96 mm | 6 | ||||||
EDAC Inc. | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 6 | Gold | Female | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Dual | Copper Alloy | Solder Eyelet(s) | Polyester Thermoplastic | Semi Bellows | 1 | 2 | 0.156 in | 3.96 mm | 12 | Card Guides | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Non Specified - Single Edge | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 6 | Tin | Female | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Single | Copper Alloy | Solder | Polyester Thermoplastic | Semi Bellows | 1 | 1 | 0.156 in | 3.96 mm | 6 | Card Guides | ||||
EDAC Inc. | Non Specified - Dual Edge | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 6 | Tin | Female | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Dual | Copper Alloy | Solder | Polyester Thermoplastic | Semi Bellows | 1 | 2 | 0.156 in | 3.96 mm | 12 | |||||
EDAC Inc. | Non Specified - Dual Edge | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 6 | Gold | Female | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Dual | Copper Alloy | Solder | Polyester Thermoplastic | Semi Bellows | 1 | 2 | 0.156 in | 3.96 mm | 12 | Card Guides | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Non Specified - Dual Edge | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 6 | Tin | Female | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Dual | Copper Alloy | Solder | Polyester Thermoplastic | Semi Bellows | 1 | 2 | 0.156 in | 3.96 mm | 12 | Card Guides | ||||
EDAC Inc. | Non Specified - Single Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 6 | Gold | Female | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Single | Copper Alloy | Solder | Polyester Thermoplastic | Semi Bellows | 1 | 1 | 0.156 in | 3.96 mm | 6 | 10 Áin | 0.25 Ám | |||
EDAC Inc. | Non Specified - Single Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 6 | Tin | Female | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Single | Copper Alloy | Wire Wrap | Polyester Thermoplastic | Semi Bellows | 1 | 1 | 0.156 in | 3.96 mm | 6 | Card Guides | ||||
EDAC Inc. | Non Specified - Single Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 6 | Tin | Female | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Single | Copper Alloy | Wire Wrap | Polyester Thermoplastic | Semi Bellows | 1 | 1 | 0.156 in | 3.96 mm | 6 | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 15.70 | |
Description
General part information
307-006 Series
12 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
