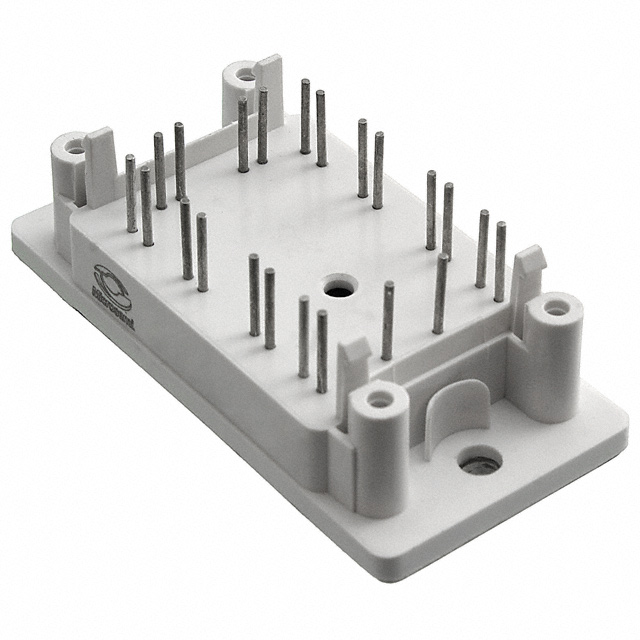

APTGFQ25H120T2G

Active

Microsemi Corporation

IGBT MODULE 1200V 40A 227W SP2

Search across all available documentation for this part.

Active

Microsemi Corporation

IGBT MODULE 1200V 40A 227W SP2

Technical Specifications

Parameters and characteristics for this part

Specification	APTGFQ25H120T2G

Configuration	Full Bridge
Current - Collector (Ic) (Max) [Max]	40 A
Current - Collector Cutoff (Max) [Max]	250 µA
IGBT Type	NPT and Fieldstop
Input	Standard
Input Capacitance (Cies) @ Vce	2.02 nF
Mounting Type	Through Hole
NTC Thermistor	True
Package / Case	SP2
Power - Max [Max]	227 W
Supplier Device Package	SP2
Vce(on) (Max) @ Vge, Ic	2.1 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Current - Collector (Ic) (Max) [Max]	Supplier Device Package	IGBT Type	Package / Case	Vce(on) (Max) @ Vge, Ic	Input Capacitance (Cies) @ Vce	NTC Thermistor	Configuration	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Input	Power - Max [Max]
Microsemi Corporation APTGFQ25H120T2G	40 A	SP2	NPT and Fieldstop	SP2	2.1 V	2.02 nF		Full Bridge	Through Hole	1200 V	250 µA	Standard	227 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGBT Module NPT and Fieldstop Full Bridge 1200 V 40 A 227 W Through Hole SP2
