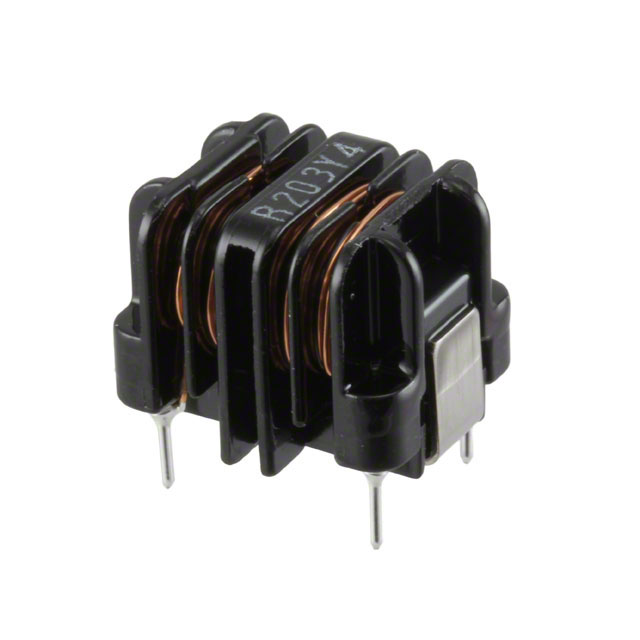

SU10VFC-R20010

Active

KEMET

COMMON MODE FILTER, 1000UH, THD

Search across all available documentation for this part.

Active

KEMET

COMMON MODE FILTER, 1000UH, THD

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - AC	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Number of Lines	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Max) [Max]	Filter Type	Height (Max) [Max]	Height (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Mounting Type	Inductance @ Frequency
KEMET SU10VFC-R20010	250 V	4 Lead	Vertical	0.709 in	18 mm	15.5 mm	0.61 in	2	120 °C	-25 °C	2 A	Power Line	15 mm	0.591 in	150 mOhm	Through Hole	1 mH
KEMET SU10VFC-R05140	250 V	4 Lead	Vertical	0.709 in	18 mm	15.5 mm	0.61 in	2	120 °C	-25 °C	500 mA	Power Line	15 mm	0.591 in	1.6 Ohm	Through Hole	1 kHz 14 mH
KEMET SU10VFC-R10045	250 V	4 Lead	Vertical	0.709 in	18 mm	15.5 mm	0.61 in	2	120 °C	-25 °C	1 A	Power Line	15 mm	0.591 in	550 mOhm	Through Hole	4.5 mH
KEMET SU10VFC-R03370	250 V	4 Lead	Vertical	0.709 in	18 mm	15.5 mm	0.61 in	2	120 °C	-25 °C	300 mA	Power Line	15 mm	0.591 in	4.2 Ohm	Through Hole	37 mH

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 mH 2 Line Common Mode Choke Through Hole 2A DCR 150mOhm
