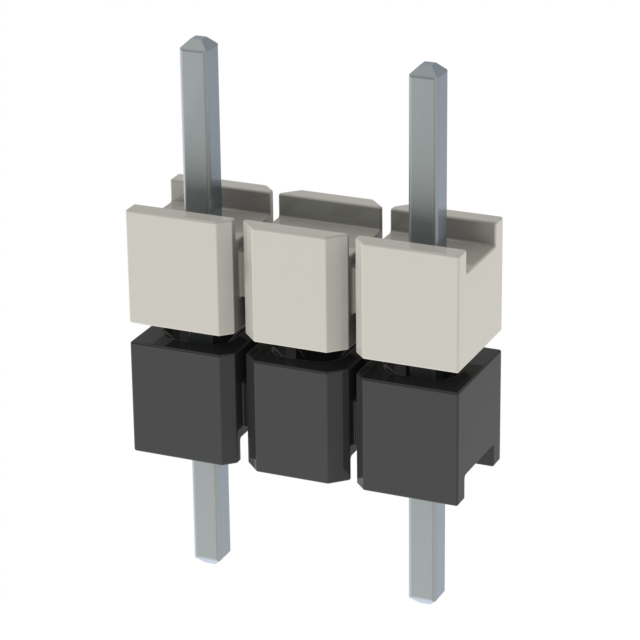

HW-03-17-T-S-260-130-002

Active

Samtec Inc.

CONN HDR 3POS 0.1 STACK T/H

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 3POS 0.1 STACK T/H

Technical Specifications

Parameters and characteristics for this part

Part	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Pitch [x]	Pitch [x]	Color	Contact Finish - Post (Mating)	Length - Stack Height [z]	Length - Stack Height [z]	Length - Tail [x]	Length - Tail [x]	Mounting Type	Number of Rows	Termination	Length - Overall Pin	Length - Overall Pin [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Stack Height [x]	Length - Stack Height [x]	Length - Overall Pin [x]	Length - Tail	Length - Tail	Row Spacing [x]	Row Spacing	Number of Positions
Samtec Inc. HW-03-17-T-S-260-130-002	0.09 in	2.286 mm	2.54 mm	0.1 in	Black	Tin	0.26 in	6.604 mm	3.302 mm	0.13 in	Through Hole	1	Solder	12.192 mm	0.48 in
Samtec Inc. HW-03-17-T-S-200-100	0.18 in	4.572 mm	2.54 mm	0.1 in	Black	Tin			2.54 mm	0.1 "	Through Hole	1	Solder	12.192 mm	0.48 in
Samtec Inc. HW-03-17-L-S-250-SM	0.165 in	4.191 mm	2.54 mm	0.1 in	Black	Gold					Surface Mount	1	Solder		0.415 in	0.25 Ám	10 Áin	0.25 in	6.35 mm	10.541 mm
Samtec Inc. HW-03-17-S-S-260-110	0.11 in	2.8 mm	2.54 mm	0.1 in	Black	Gold	0.26 in	6.604 mm			Through Hole	1	Solder	12.192 mm	0.48 in	0.76 µm	30 µin				2.8 mm	0.11 in
Samtec Inc. HW-03-17-T-D-300-SM	0.115 in	2.921 mm	2.54 mm	0.1 in	Black	Tin					Surface Mount	2	Solder		0.415 in			0.3 in	7.62 mm	10.541 mm			0.1 in	2.54 mm	6
Samtec Inc. HW-03-17-F-D-250-SM	0.165 in	4.191 mm	2.54 mm	0.1 in	Black	Gold					Surface Mount	2	Solder		0.415 in	0.076 Ám	3 Áin	0.25 in	6.35 mm	10.541 mm			0.1 in	2.54 mm	6
Samtec Inc. HW-03-17-S-S-325-SM	0.09 in	2.286 mm	2.54 mm	0.1 in	Black	Gold	0.325 in	8.255 mm			Surface Mount	1	Solder		0.415 in	0.76 µm	30 µin			10.541 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.02

General part information

3 Position Header Spacer Connector 0.100" (2.54mm) Tin Through Hole
